Removal and Installation: Removal

WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

A/T models

Remove center console. Refer to "(U) Center Console (A/T Models) article in REMOVAL AND INSTALLATION ".
Disconnect harness connector.
Remove installation bolts. Remove yaw rate/side G-sensor.

CAUTION: Do not drop or strike the yaw rate/side G-sensor, because it has little endurance to impact.

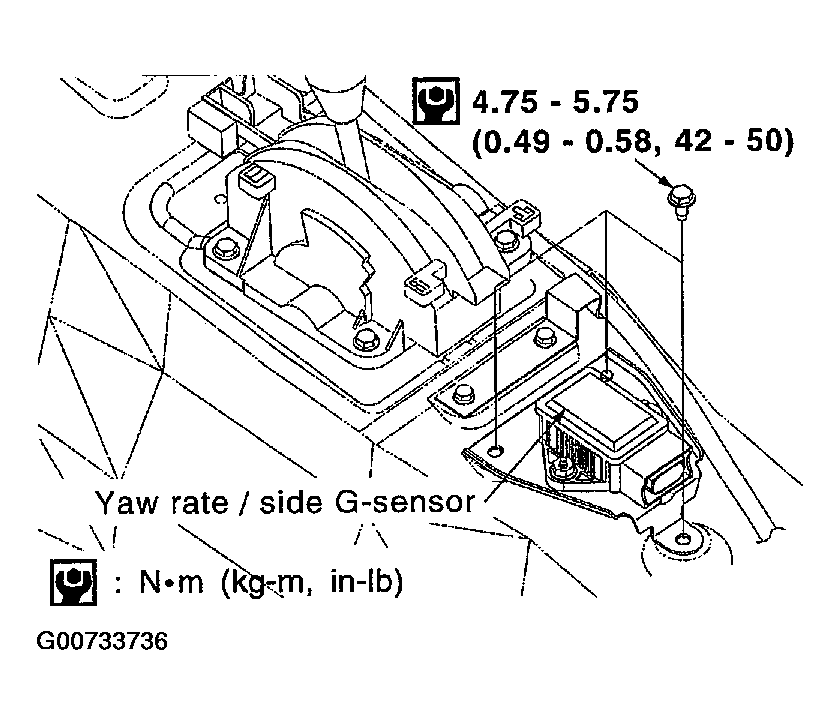

Fig 1: Removing Yaw Rate/Side G-Sensor (A/T)

Courtesy of NISSAN MOTOR CO., U.S.A.

M/T models

Remove center console. Refer to "(V) Center Console (M/T Models) article in REMOVAL AND INSTALLATION ".
Disconnect harness connector.
Remove installation bolts. Remove yaw rate/side G-sensor.

CAUTION: Do not drop or strike the yaw rate/side G-sensor, because it has little endurance to impact.

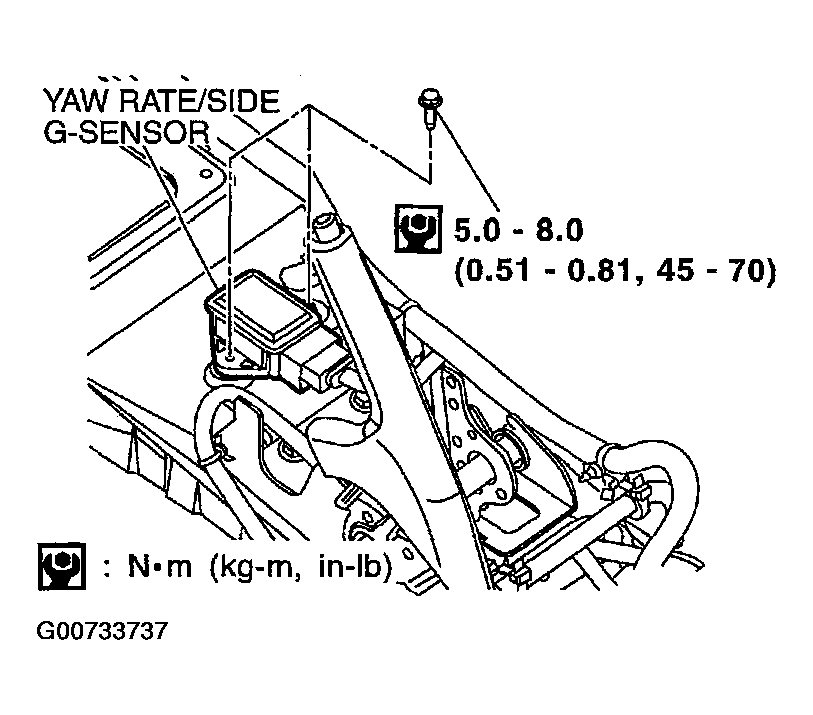

Fig 2: Removing Yaw Rate/Side G-Sensor (M/T)

Courtesy of NISSAN MOTOR CO., U.S.A.
