Removal and Installation: Removal

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the evaporator. Refer to "Removal and Installation for Evaporator ".
  2. Remove the intake sensor clip and then the sensor.
    CAUTION: Be careful not to damage the core surface.

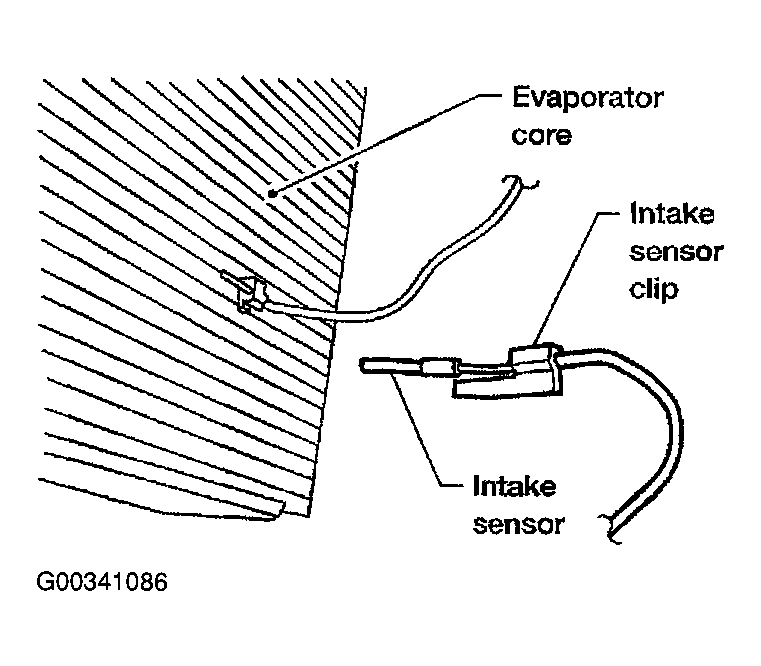

    Fig 1: Locating Intake Sensor
    G00341086Courtesy of NISSAN MOTOR CO., U.S.A.
