Section 307 (Rear Suspension): Description

WARNING: This page is about a different car, the 2003 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

G35 uses an independent multi-link suspension system with coil springs and stabilizer bar. See Fig 1 and Fig 2 or Fig 3 and Fig 4 .

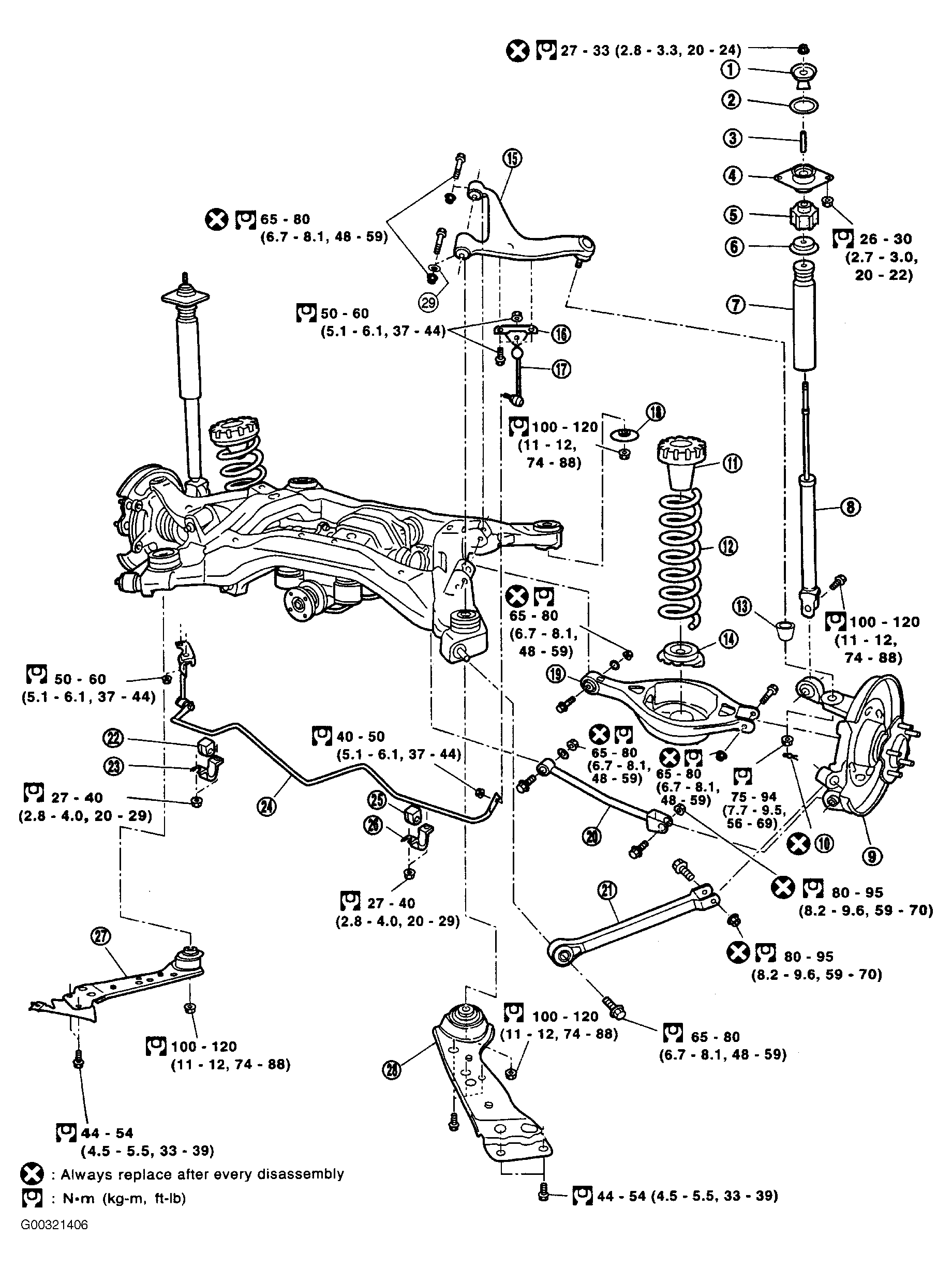

Fig 1: Locating Rear Suspension Components (Coupe - 1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

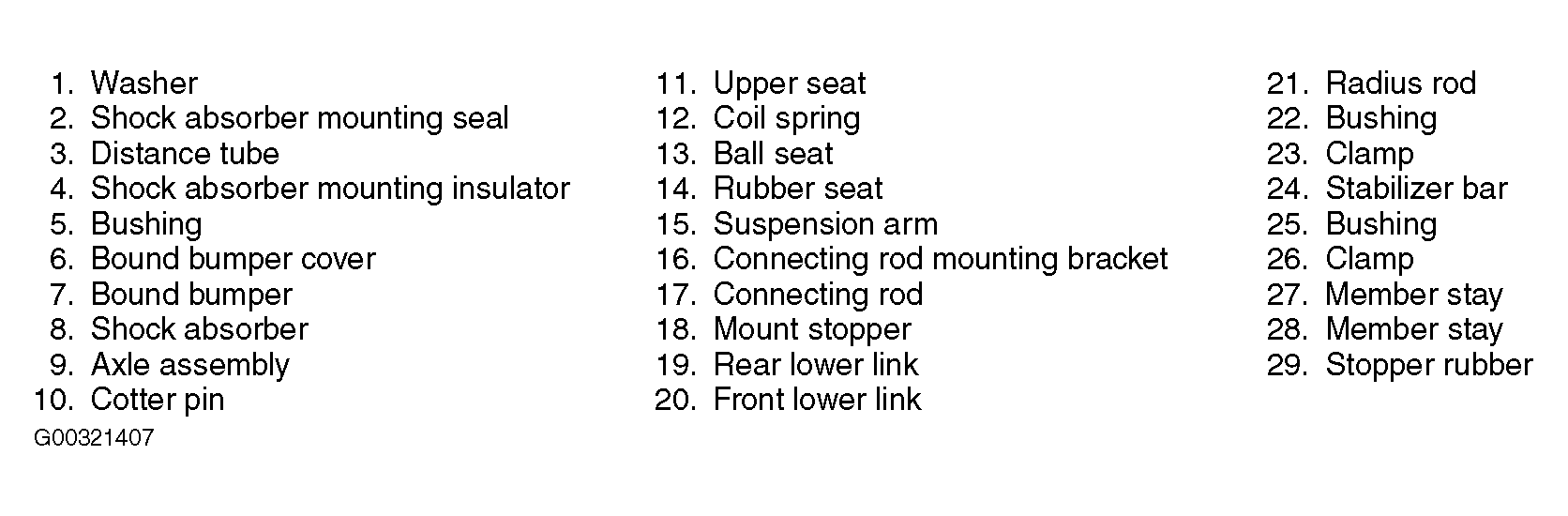

Fig 2: Locating Rear Suspension Components (Coupe - 2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Exploded View Of Rear Suspension Components (Sedan - 1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Exploded View Of Rear Suspension Components (Sedan - 2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
