Removal And Installation: Installation

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Apply liquid gasket to joint part of cylinder head and camshaft bracket following the steps below.
NOTE: Illustration shows an example of left bank side (zoomed in shows No. 1 camshaft bracket).
- Refer to illustration "a" to apply liquid gasket to joint part of No. 1 camshaft bracket and cylinder head.
- Refer to illustration "b" to apply liquid gasket in 90° degrees to illustration "a". Use Genuine RTV Silicone Sealant or equivalent. See RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS in GENERAL INFORMATION - TITAN article in GENERAL INFORMATION.

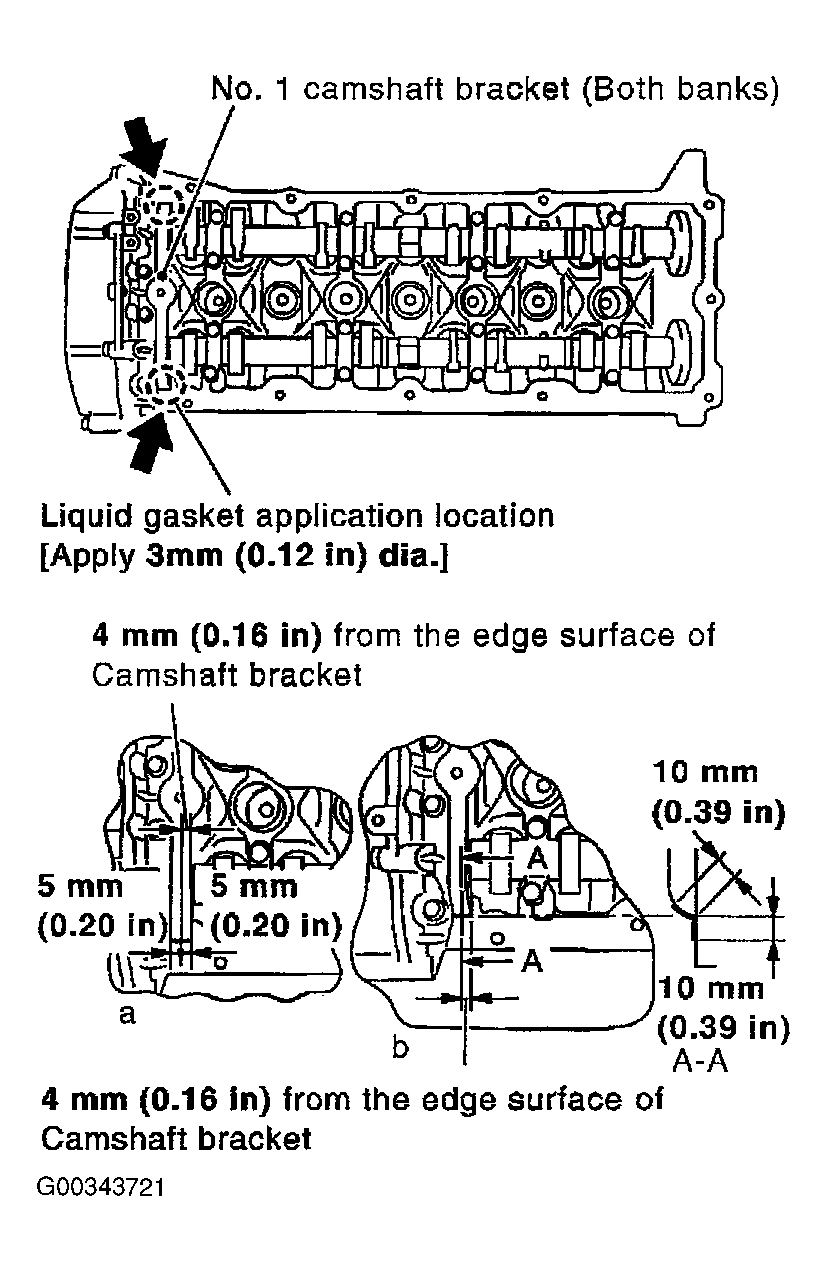

  Fig 1: Applying Liquid Gasket
  Courtesy of NISSAN MOTOR CO., U.S.A.
Install rocker cover.
- Check if rocker cover gasket has dropped from installation groove of rocker cover.
- Tighten bolts in two steps separately in the numerical order shown in the figure.
  1. 1st step : 2.0 N.m (0.2 kg-m, 18 in-lb)
  2. 2nd step : 8.3 N.m (0.85 kg-m, 73 in-lb)
  CAUTION: Do not hold the rocker cover by the oil filler neck (right bank).

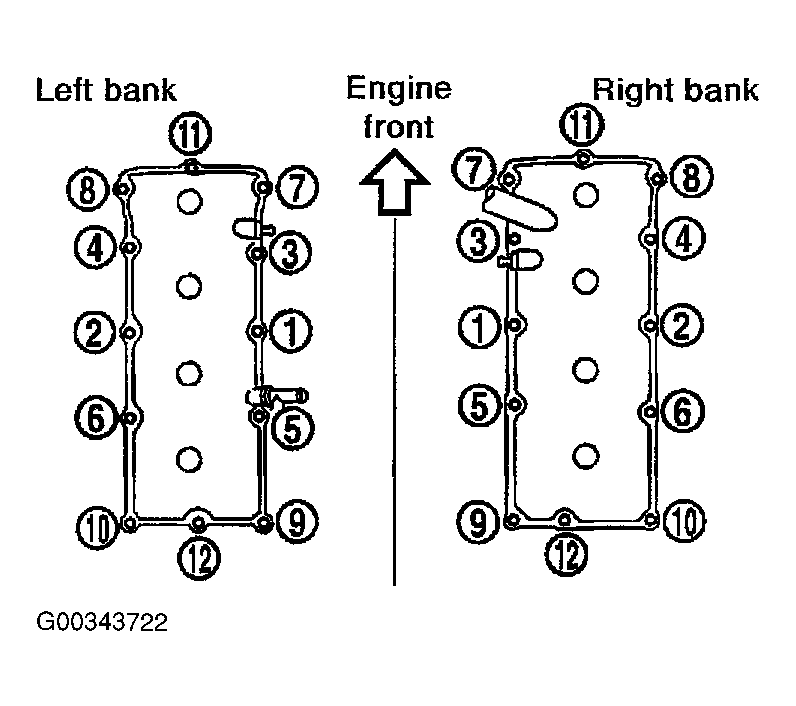

Fig 2: Rocker Cover Torque Sequence
Courtesy of NISSAN MOTOR CO., U.S.A.
Install PCV hose with the following procedure:
- Remove foreign materials from inside hose with compressed air using an air gun.
- The inserted length is within 25 - 30 mm (0.98 - 1.18 in) [Target: 25 mm (0.98 in)].
Installation of the remaining components is in the reverse order of removal.
