Exhaust Manifold And Three Way Catalyst: Notes

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

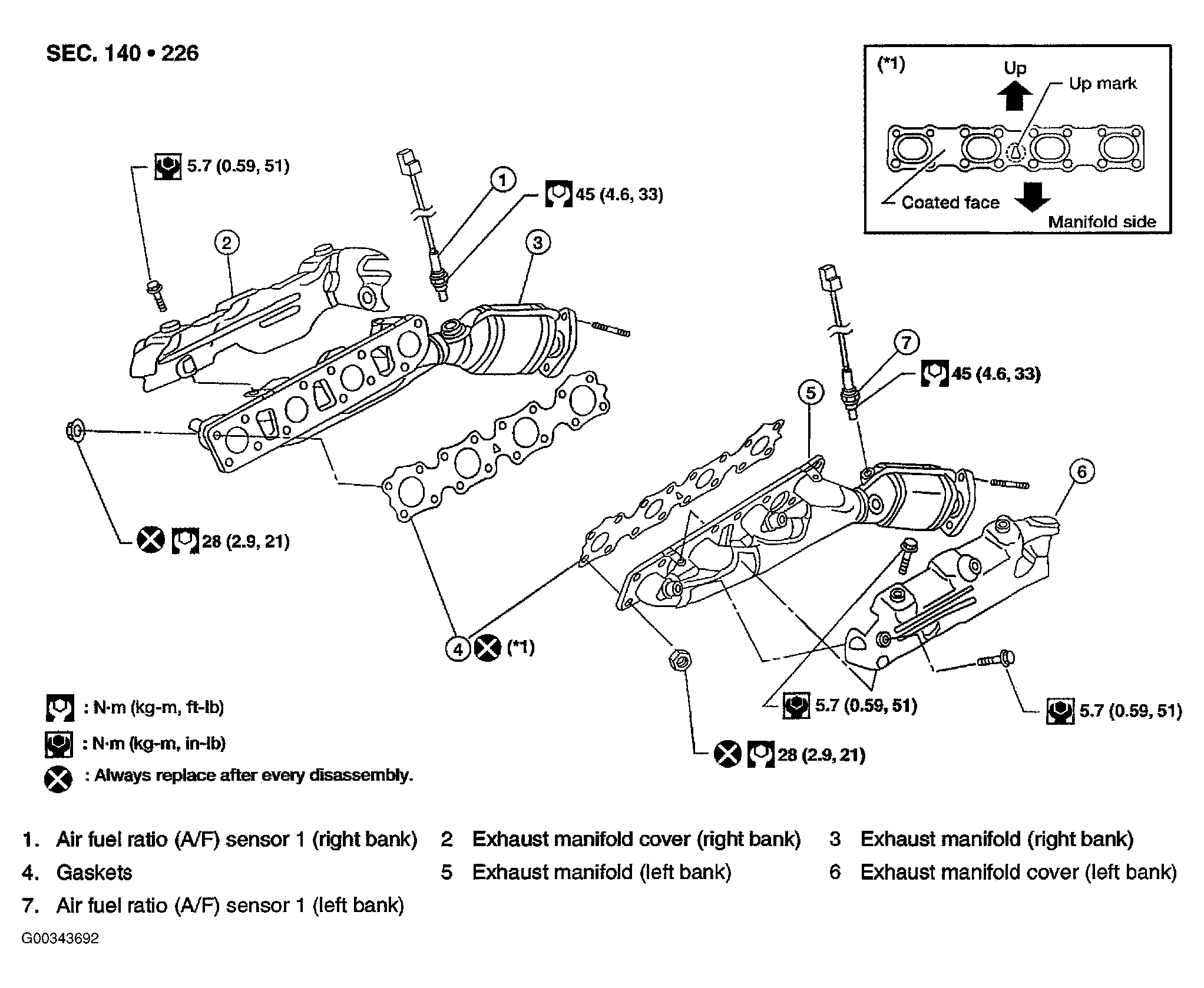

Fig 1: Exploded View Of Exhaust Manifold And Three Way Catalyst Components With Torque Specifications
G00343692Courtesy of NISSAN MOTOR CO., U.S.A.
