Section 253 (Electrical Component Locator - Coupe): Miscellaneous

WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

MISCELLANEOUS LOCATION

Component	Location

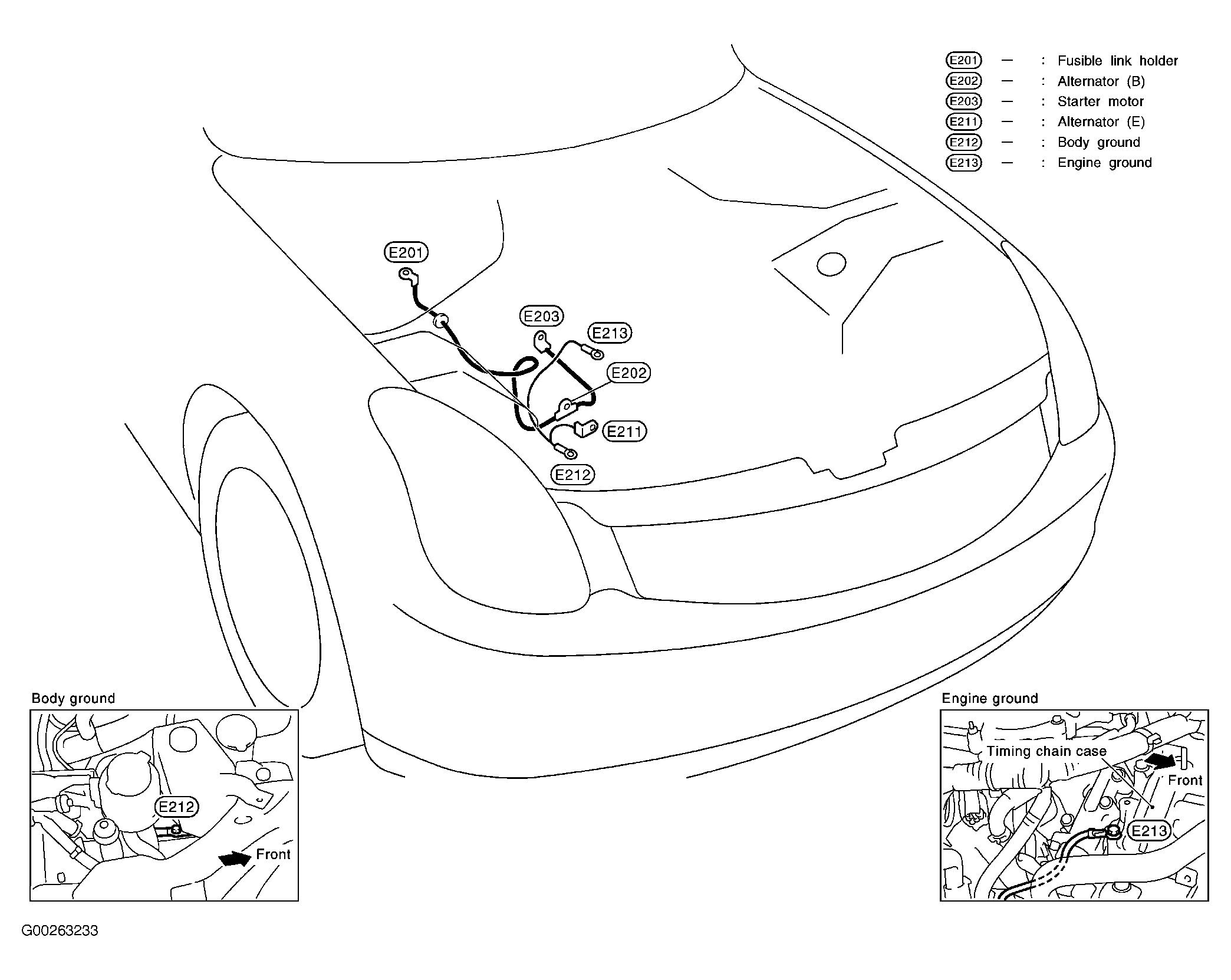

Alternator (B)	At right side of engine compartment. See Figure .
Alternator (E)	At right side of engine compartment. See Figure .
Antenna Amplifier	At left "C" pillar. See Figure .

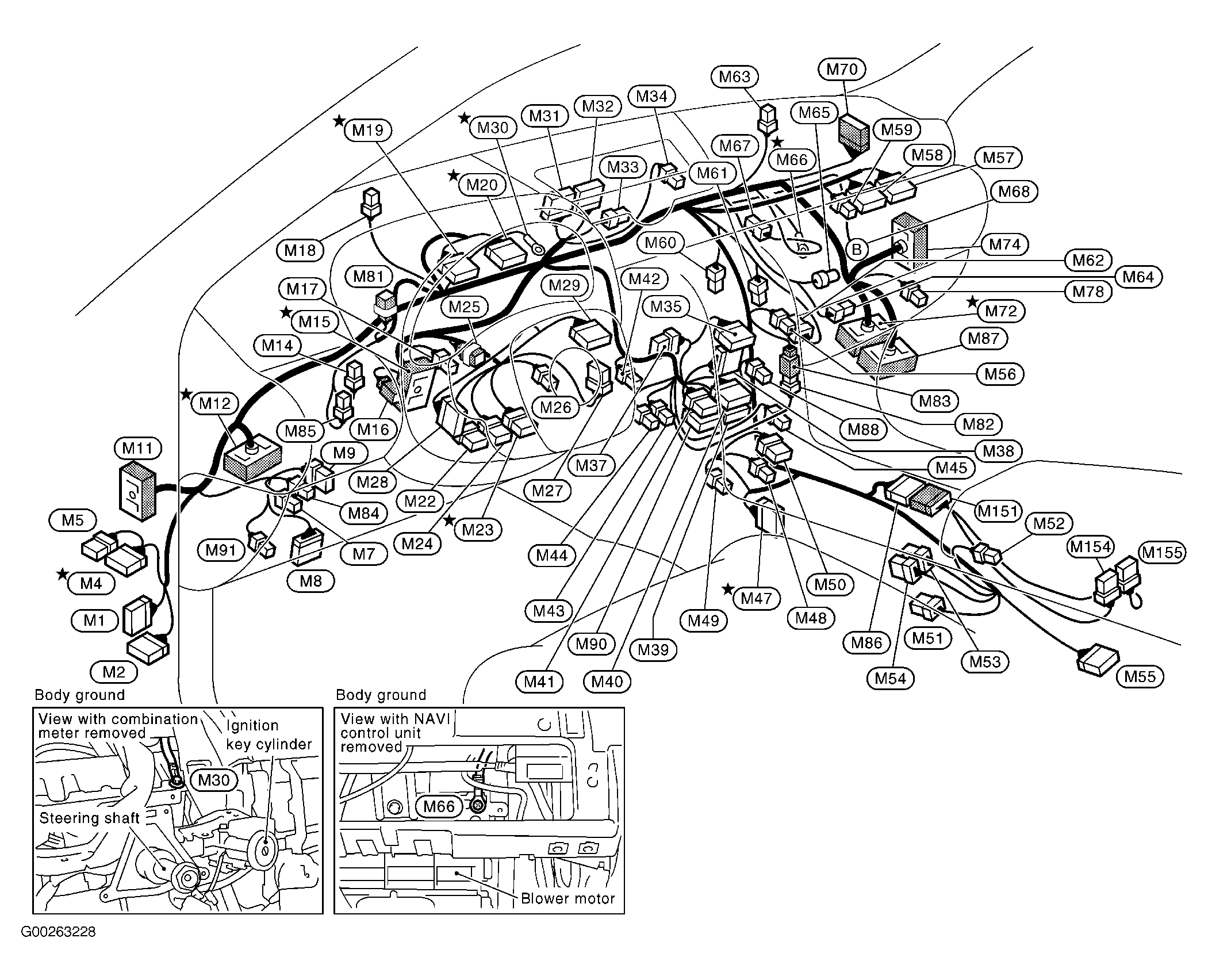

Antenna Amplifier (M45)	Under center console. See Figure .
A/T Device (M47)	Under center console. See Figure .

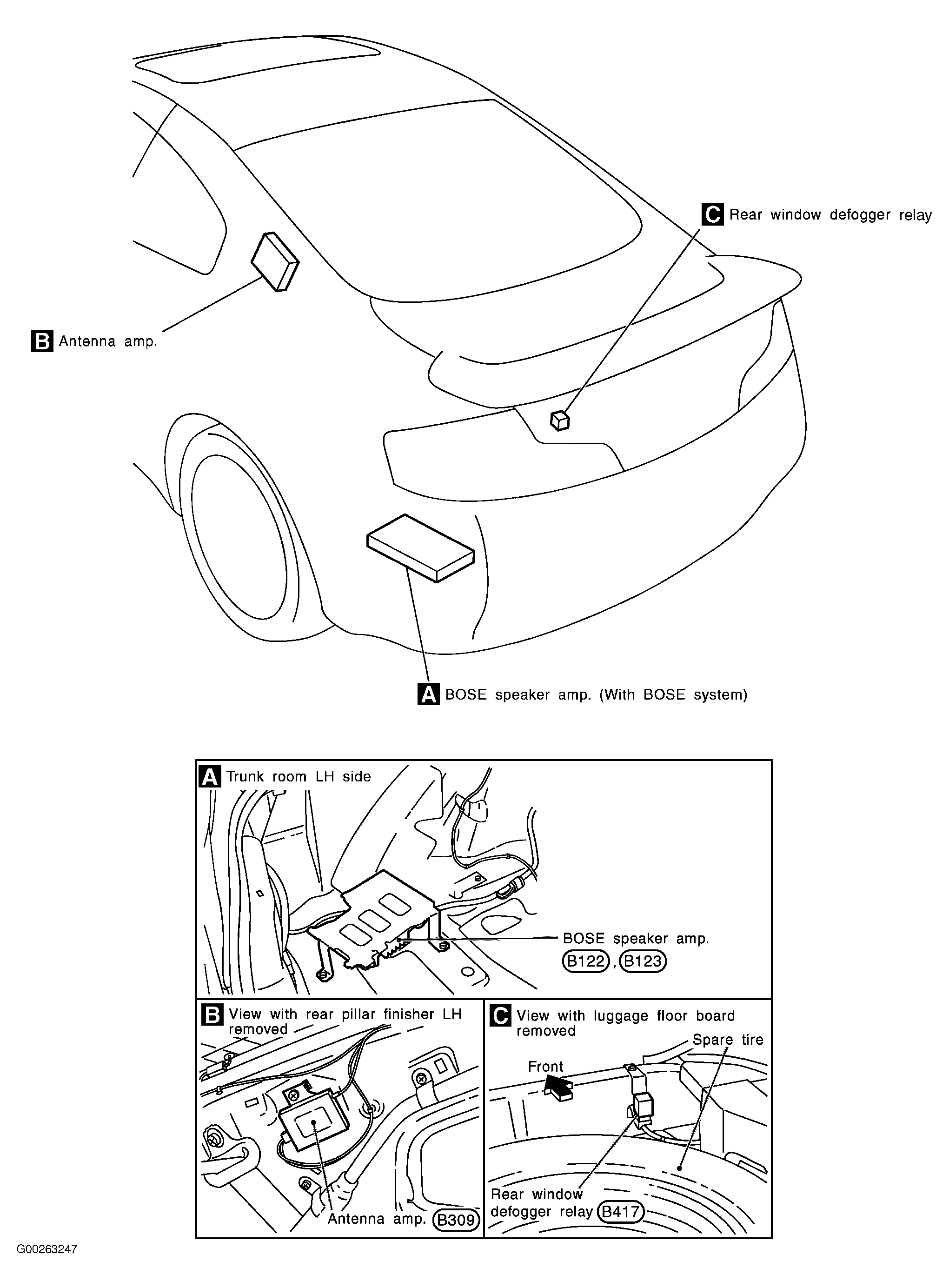

BOSE Speaker Amplifier	At left rear of trunk. See Figure .

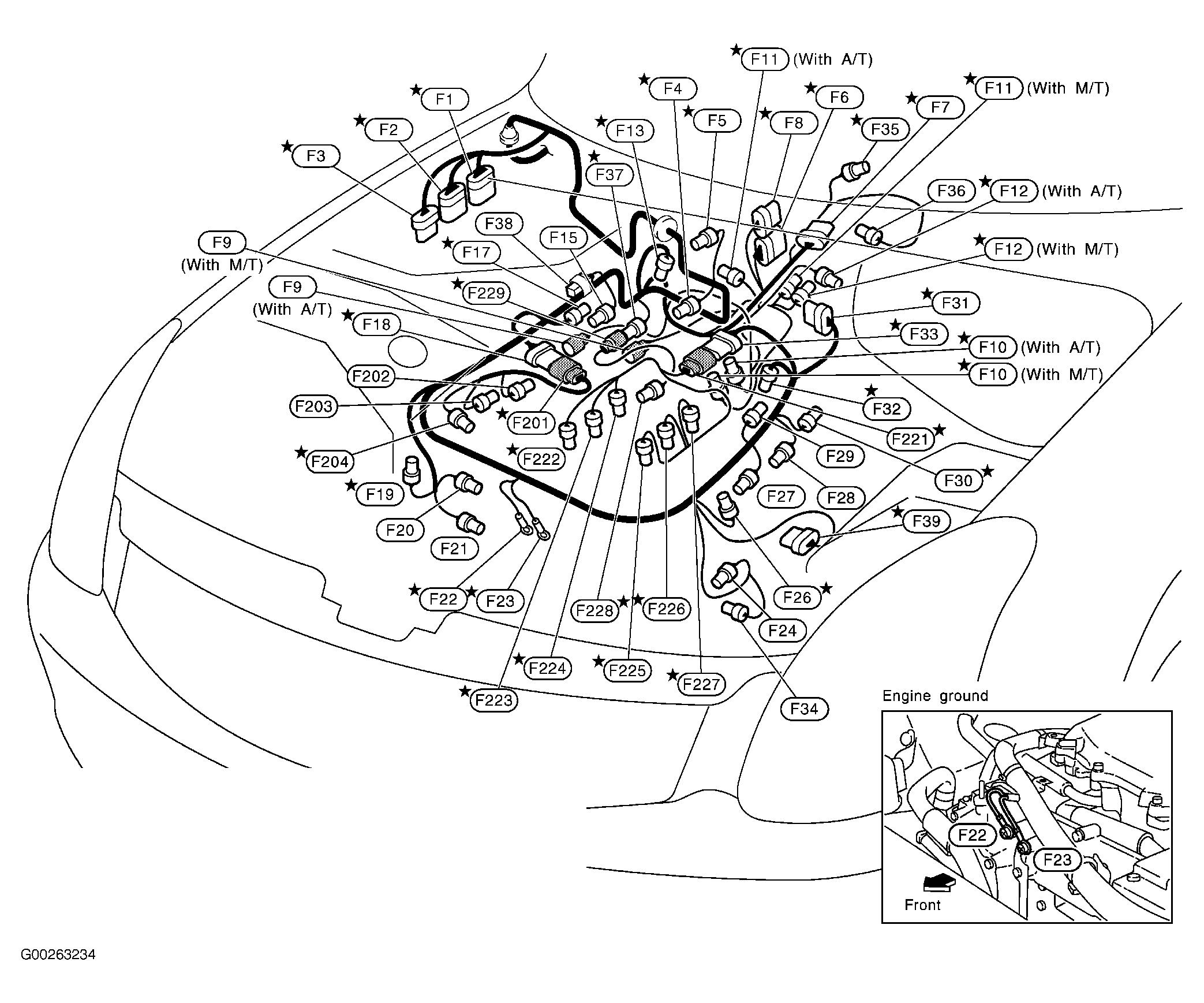

Compressor (F24)	At rear of engine. See Figure .
Condenser (B42)	Taped to body harness, forward of left rear wheelwell. See Figure .
Condenser (Engine) (F38)	At right rear of engine. See Figure .

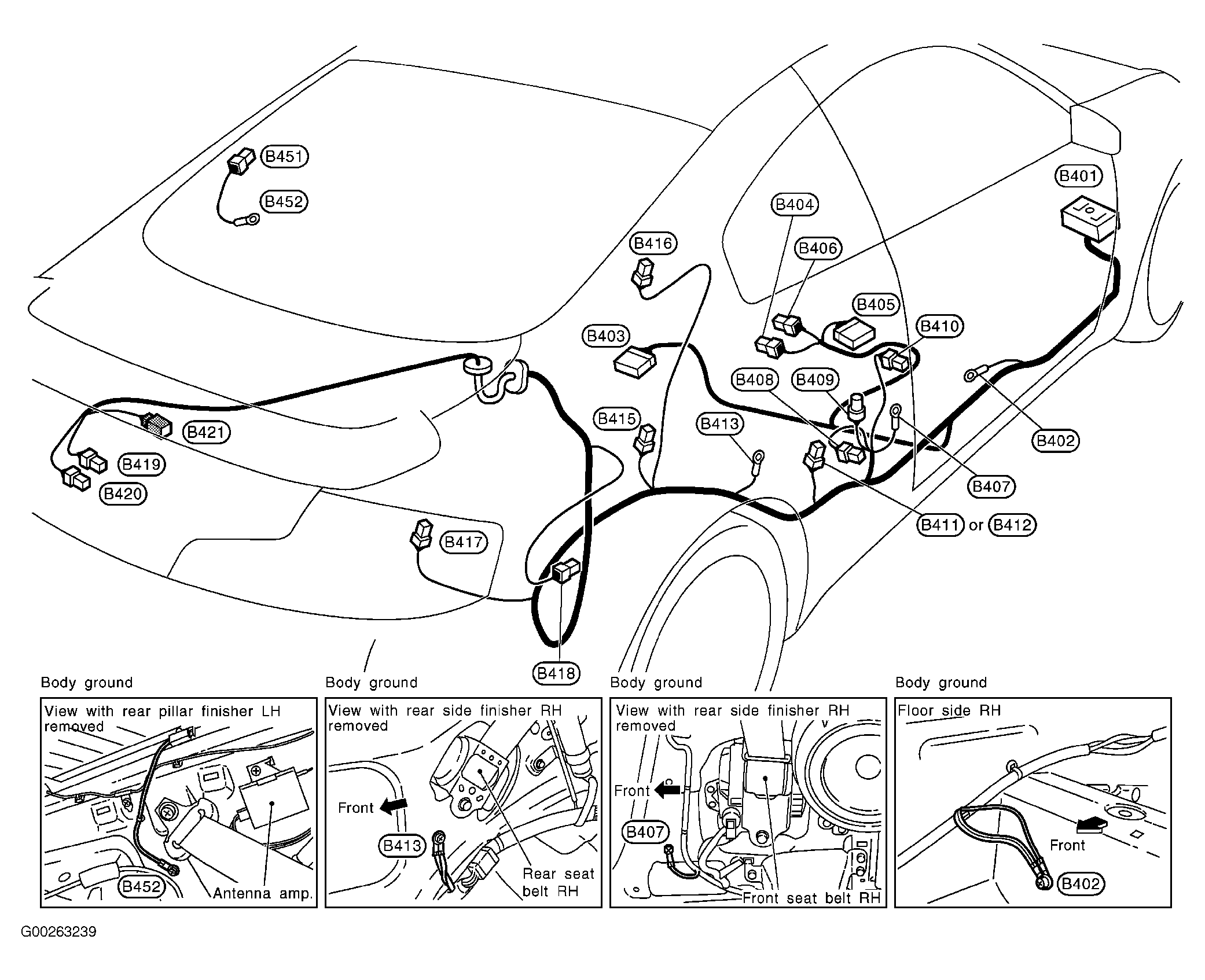

Condenser (Rear Window Defogger) (B416)	At right "C"pillar. See Figure .
Data Link Connector (M8)	Lower left side of dash. See Figure .

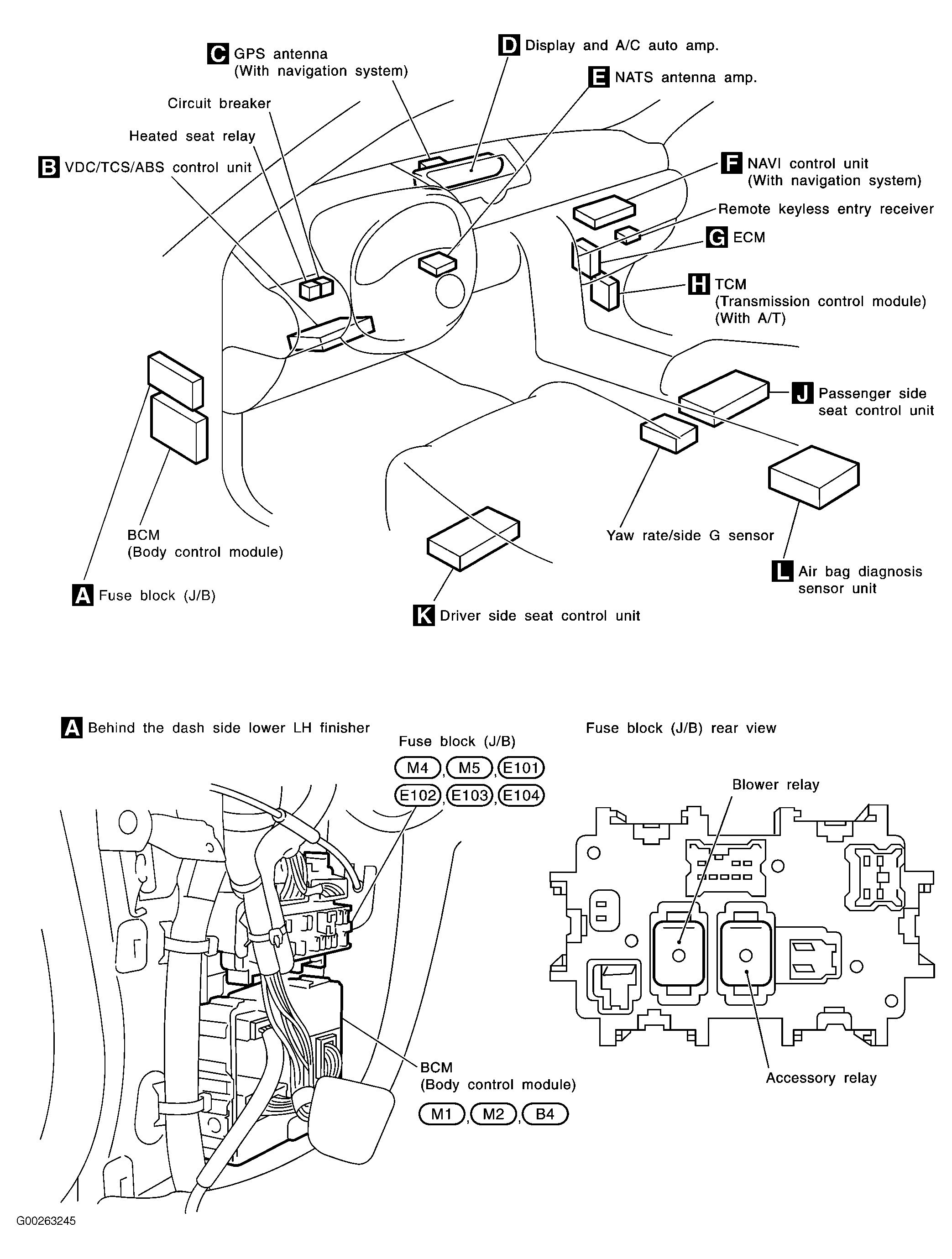

Display & A/C Auto Amplifier	At top center of dash. See Figure .

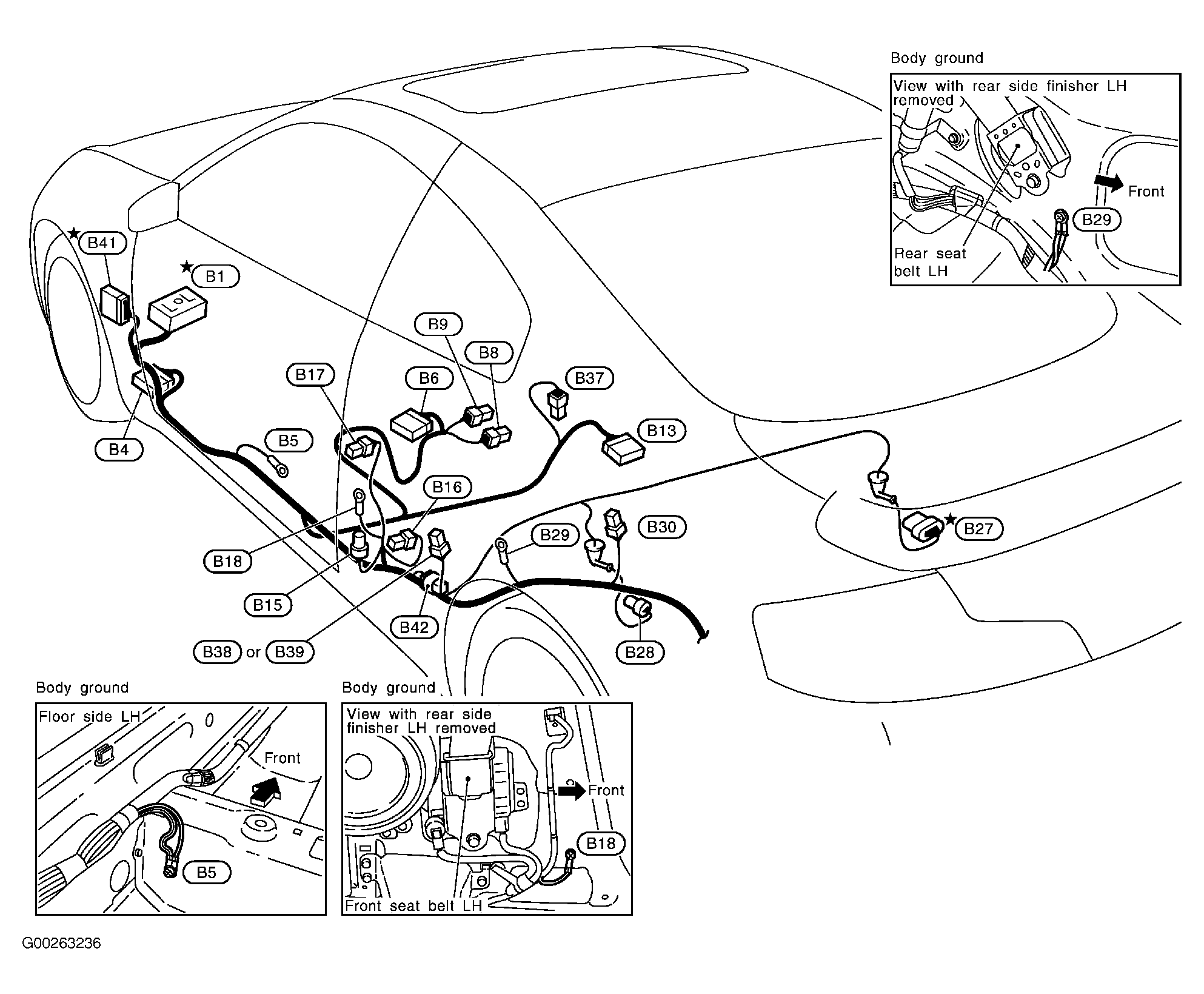

Front Left Seat Belt Pre-Tensioner (B16)	At left "B" pillar. See Figure .
Front Power Seat (Driver Side) (B6)	Under driver seat. See Figure .
Front Power Seat (Passenger Side) (B405)	Under front passenger seat. See Figure .
Front Right Seat Belt Pre-Tensioner (B408)	At right "B" pillar. See Figure .

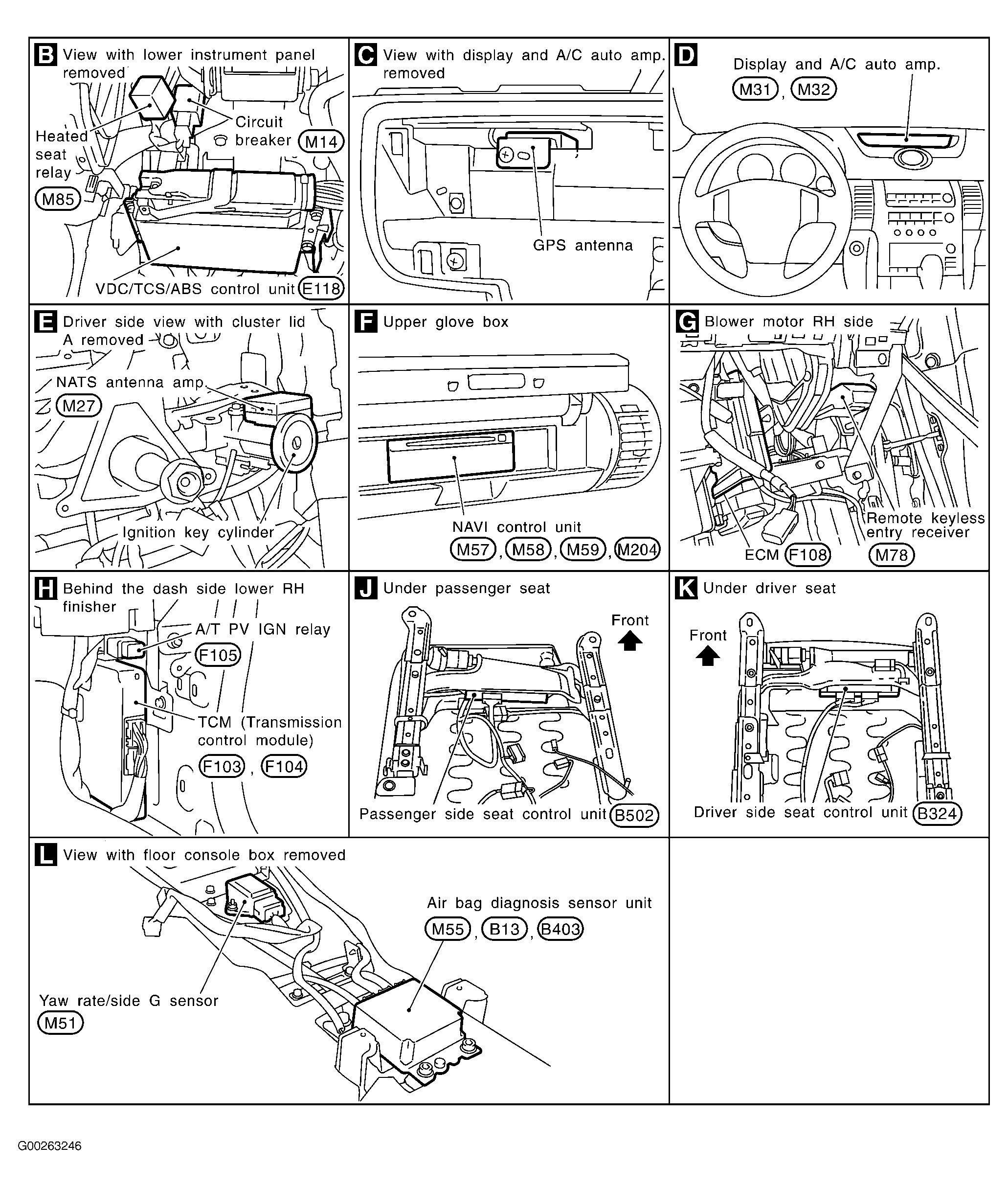

GPS Antenna	Behind top center of dash, behind A/C auto amplifier. See Figure .

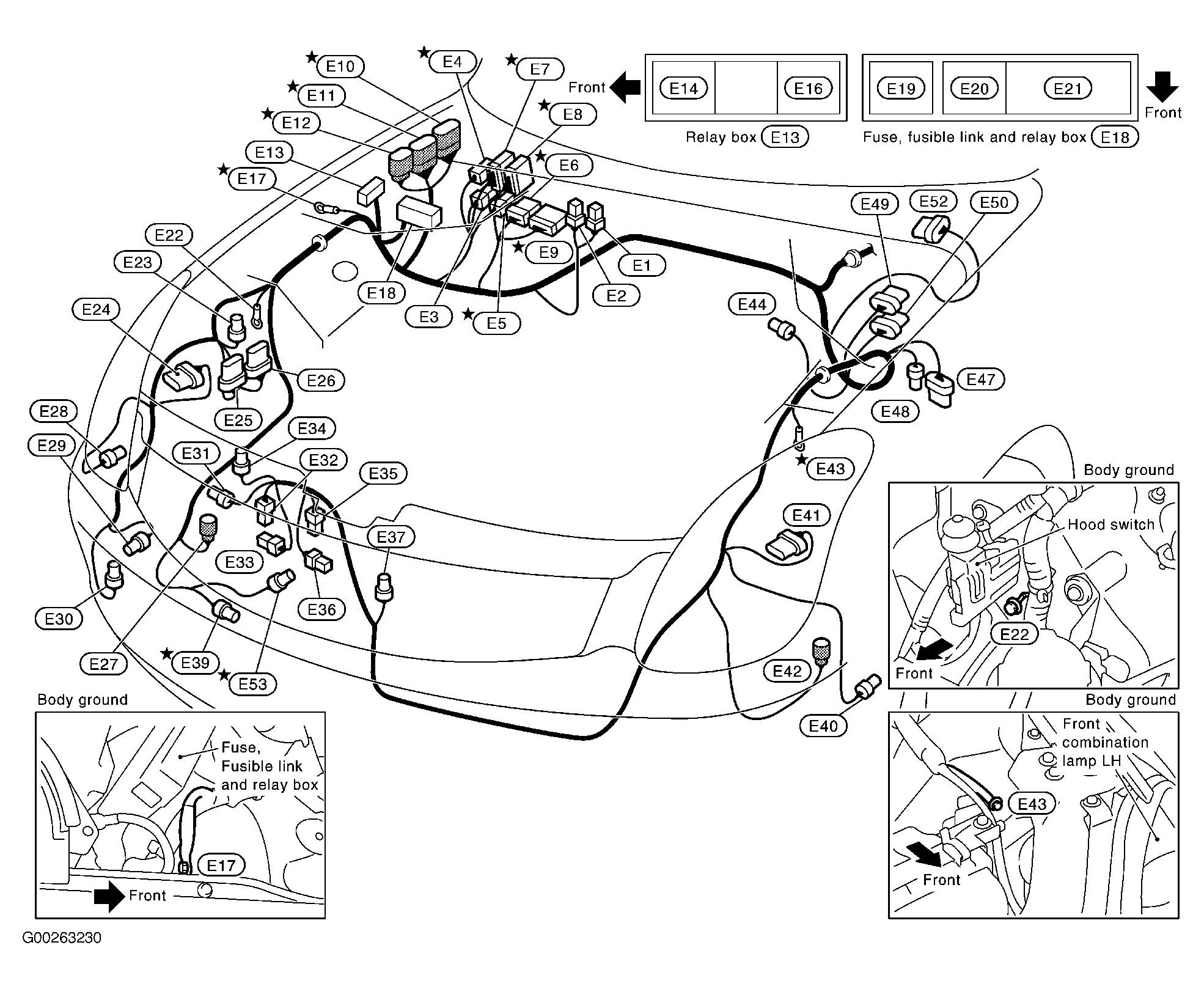

Horn (High) (C3)	Right front of engine compartment, behind grille. See Figure .
Horn (Low) (A5)	Right front of engine compartment, behind grille. See Figure .
Ignition Coil No. 1 (F203)	At top of engine. See Figure .
Ignition Coil No. 2 (F27)	At top of engine. See Figure .
Ignition Coil No. 3 (F202)	At top of engine. See Figure .
Ignition Coil No. 4 (F28)	At top of engine. See Figure .
Ignition Coil No. 5 (F15)	At top of engine. See Figure .
Ignition Coil No. 6 (F29)	At top of engine. See Figure .
NATS Antenna Amplifier	Behind left side of dash. See Figure .
