Selector Knob: Removal

WARNING: This page is about a different car, the 2006 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Slide the selector knob cover (1) downwards with fingers to reveal the selector knob latch.
  2. Gently pry the selector knob latch outward to release using suitable tool (2) then lift the selector knob up to remove.

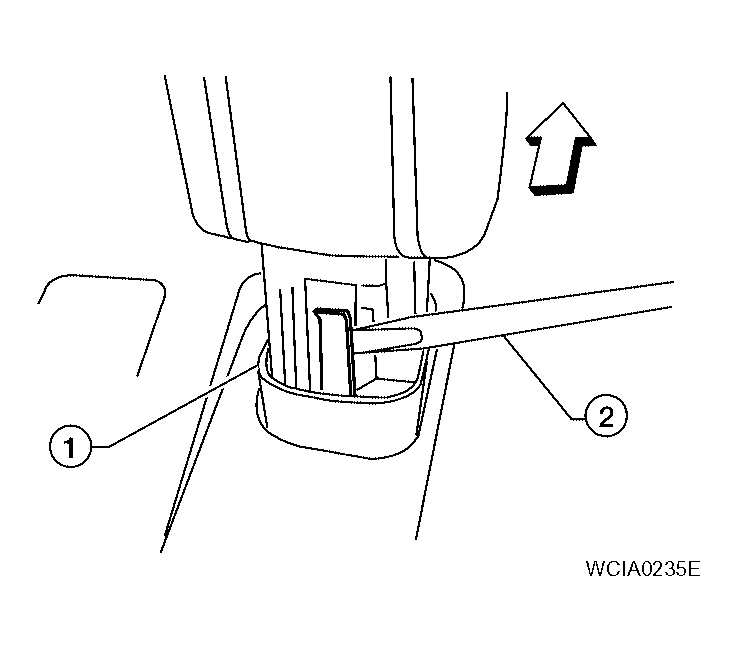

    Fig 1: Identifying Selector Knob
    G04198374Courtesy of NISSAN MOTOR CO., U.S.A.
