Differential Gear Assembly: Disassembly

WARNING: This page is about a different car, the 2006 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove O-rings from differential gear assembly.

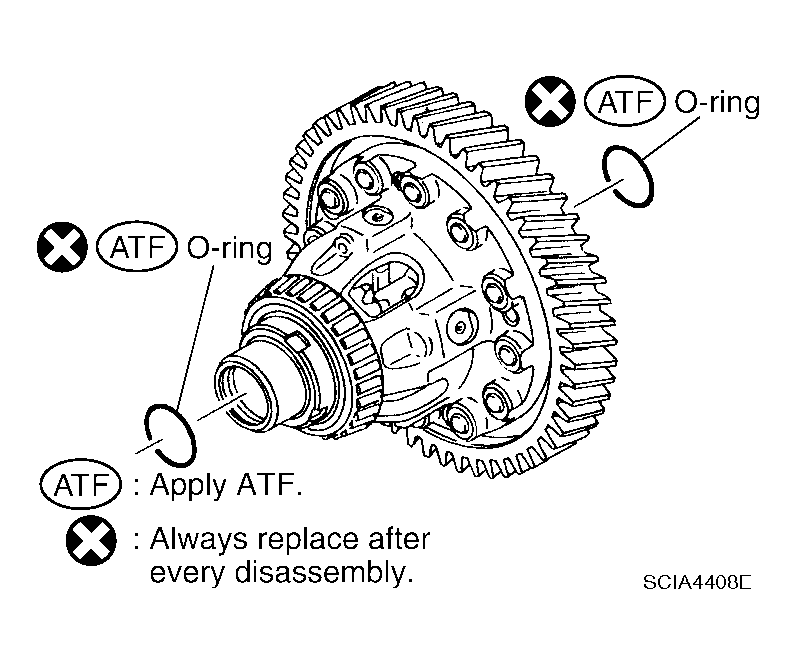

    Fig 1: Identifying O-Rings From Differential Gear Assembly
    G04198546Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Remove tapered roller bearings using Tool.

    Tool number: ST33061000 (J-8107-2)

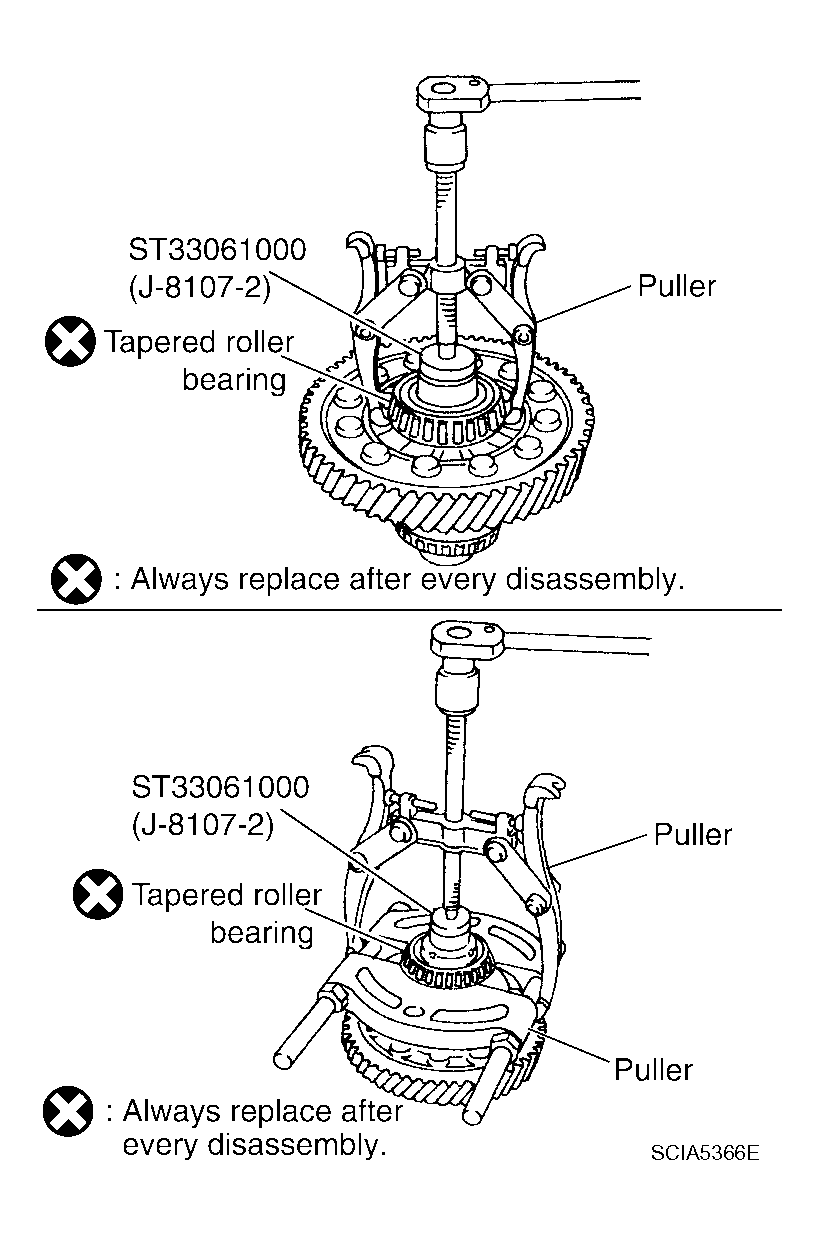

    Fig 2: Identifying Tapered Roller Bearings
    G04198547Courtesy of NISSAN MOTOR CO., U.S.A.
