Differential Gear Assembly: Assembly

WARNING: This page is about a different car, the 2006 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Install tapered roller bearings in differential gear assembly using Tools.
Tool numbers: KV38100500 (-)

: ST30720000 (J-25405)

CAUTION: Do not reuse tapered roller bearings.

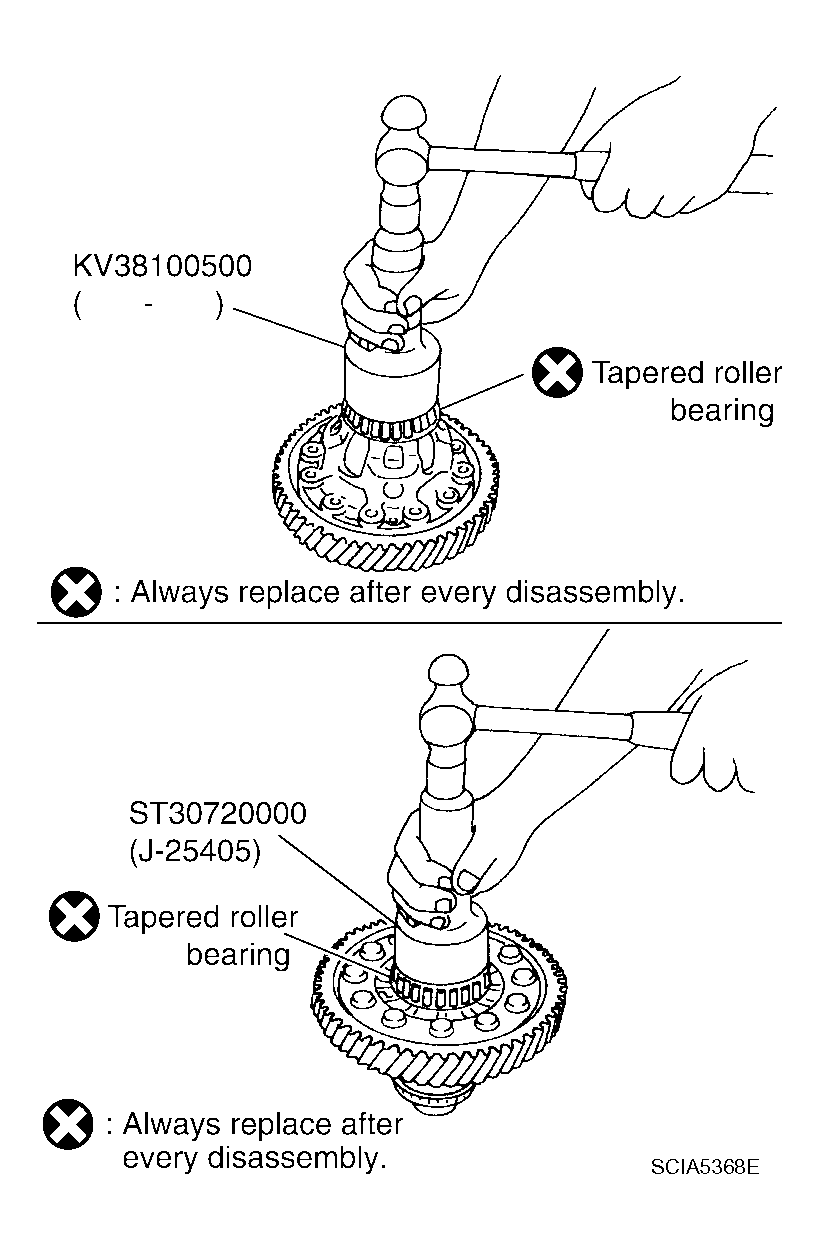

Fig 1: Identifying Tapered Roller Bearings
Courtesy of NISSAN MOTOR CO., U.S.A.
Install O-rings in differential gear assembly.
CAUTION:
- Do not reuse O-rings.
- Apply ATF to O-rings.

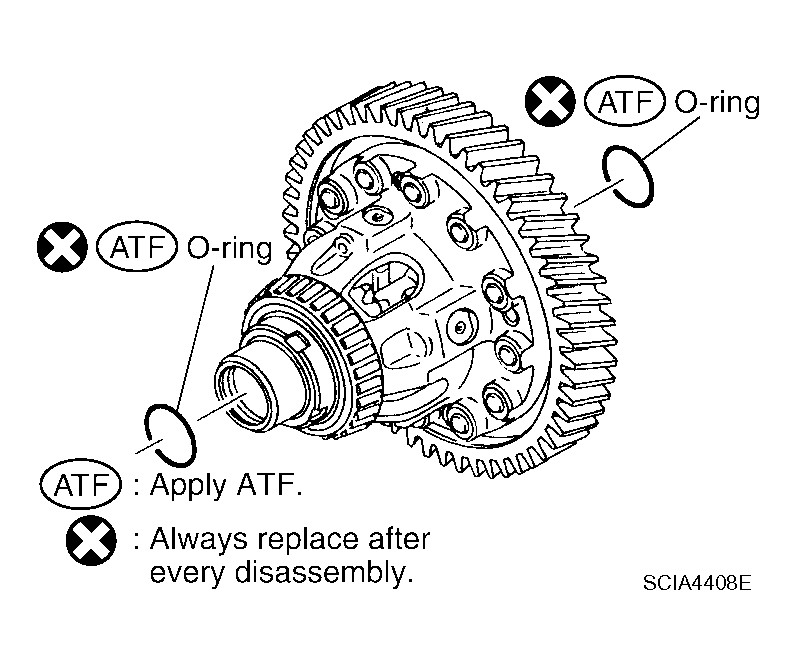

  Fig 2: Identifying O-Rings
  Courtesy of NISSAN MOTOR CO., U.S.A.
