Revolution Sensor Replacement

WARNING: This page is about a different car, the 2006 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect electrical connector.
  2. Remove revolution sensor from A/T.
  3. Installation is in the reverse order of removal.
    CAUTION:
    • Do not reuse O-ring.
    • Apply petroleum jelly to O-ring.
    • Be careful not to mis-connect because shape of connectors are same as turbine revolution sensor (power train revolution sensor).
    NOTE: To prevent mis-connect, revolution sensor harness connector is color taped for identification.

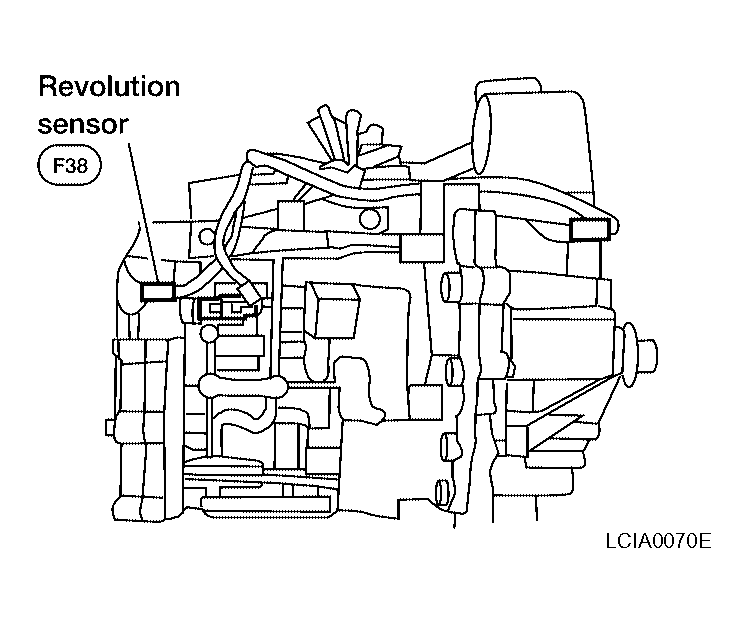

    Fig 1: Locating Revolution Sensor
    G04197658Courtesy of NISSAN MOTOR CO., U.S.A.
