Relationship Between Mil, DTC, 1ST Trip DTC And Driving Patterns For "Misfire " < Exhaust Quality Deterioration >, "Fuel Injection System"

WARNING: This page is about a different car, the 2007 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

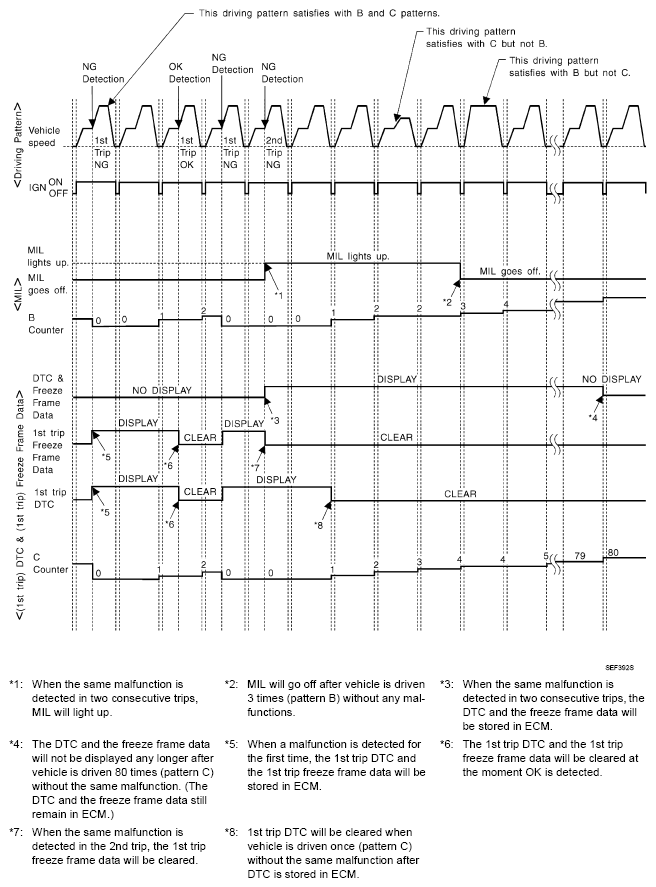

Fig 1: Identifying DTC Driving Patterns - Misfire
G04911447Courtesy of NISSAN MOTOR CO., U.S.A.
