Inspection Procedure

WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Perform "DATA MONITOR (SPEC)" mode in maximum scale display.

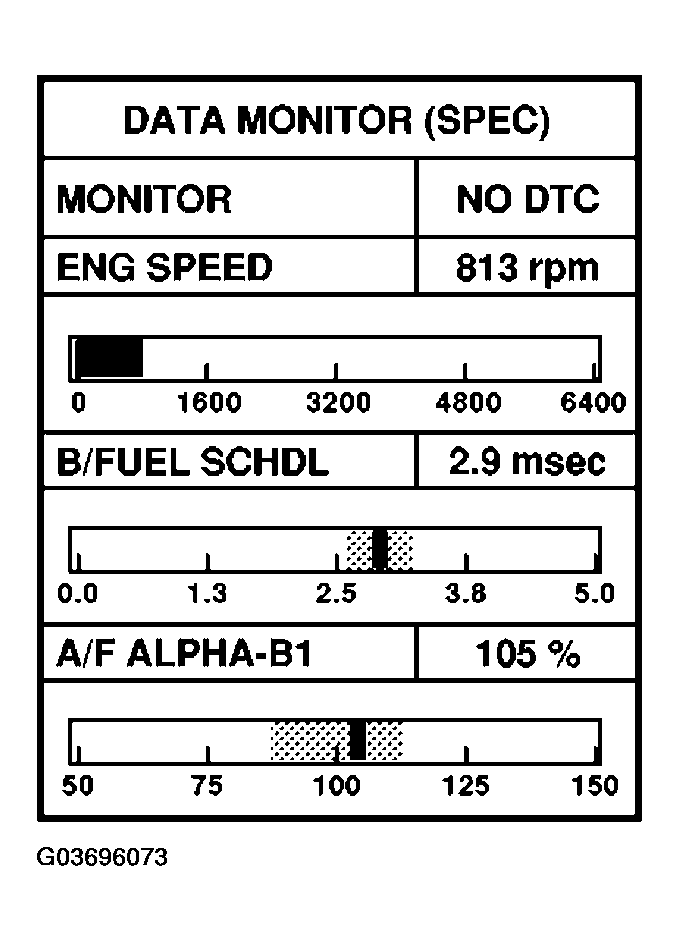

Fig 1: "Data Monitor (Spec)" Display

Courtesy of NISSAN MOTOR CO., U.S.A.

Perform "BASIC INSPECTION ".
Confirm that the testing conditions indicated above are met.
Select "B/FUEL SCHDL", "A/F ALPHA-B1", "A/F ALPHA-B2" and "MAS A/F SE-B1" in "DATA MONITOR (SPEC)" mode with CONSULT-II.
Make sure that monitor items are within the SP value.
If NG, go to "DIAGNOSTIC PROCEDURE ".
