SRT Service Procedure

WARNING: This page is about a different car, the 2006 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

If a vehicle has failed the state emissions inspection due to one or more SRT items indicating "INCMP", review the flowchart diagnostic sequence following.

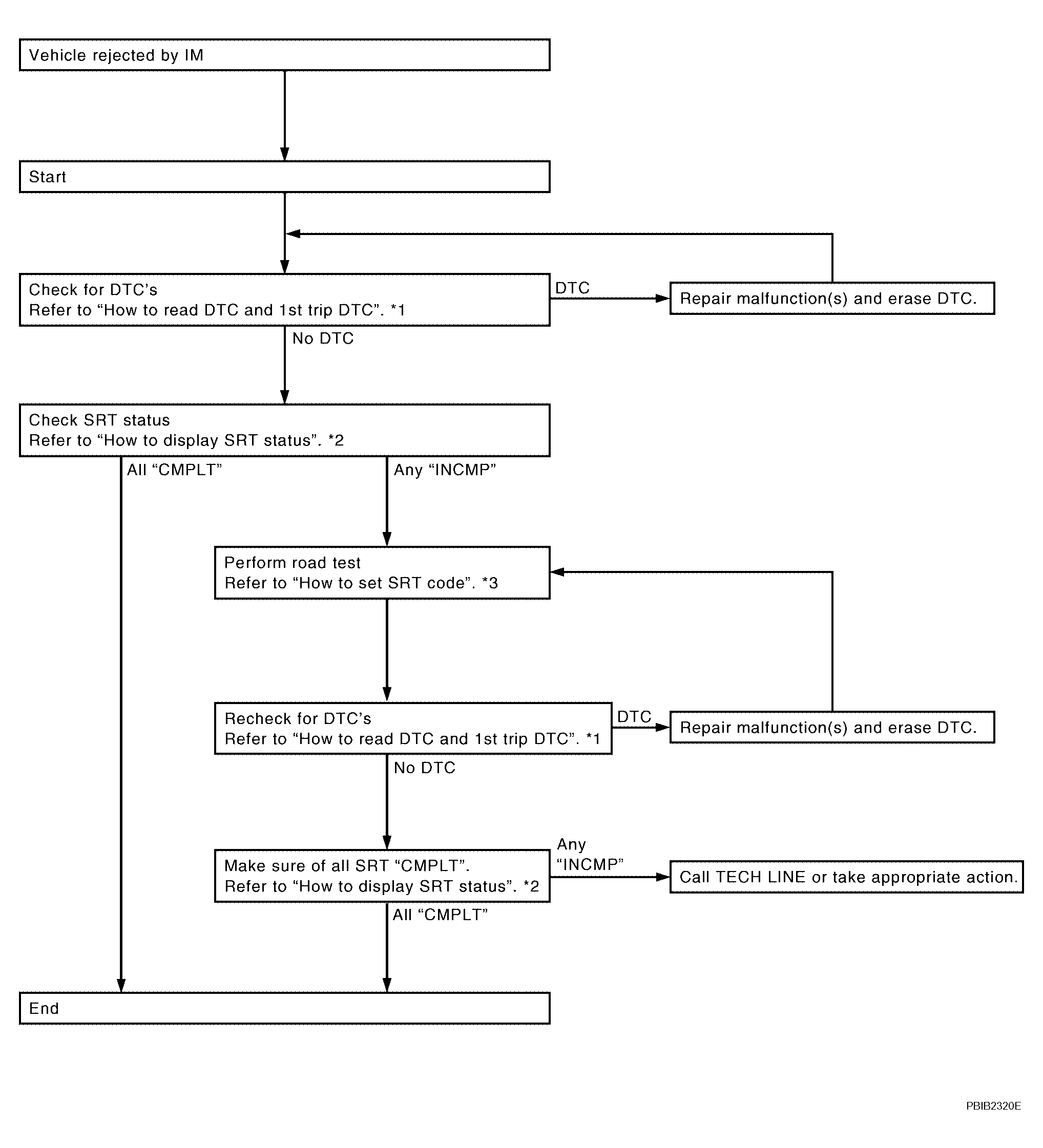

Fig 1: SRT Service Flow Chart
G04184919Courtesy of NISSAN MOTOR CO., U.S.A.
WORK FLOW REFERENCES

*1. How to Read DTC and 1st Trip DTC
*2. How to Display SRT Status
*3. How to Set SRT Code
