With Consult-II
WARNING: This page is about a different car, the 2006 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
- Start engine (TCS switch or VDC switch OFF).
- Read "VHCL SPEED SE" in "DATA MONITOR" mode with CONSULT-II. The vehicle speed on CONSULT-II should exceed 10 km/h (6 MPH) when rotating wheels with suitable gear position.
If NG, go to , "DIAGNOSTIC PROCEDURE ".
If OK, go to following step.

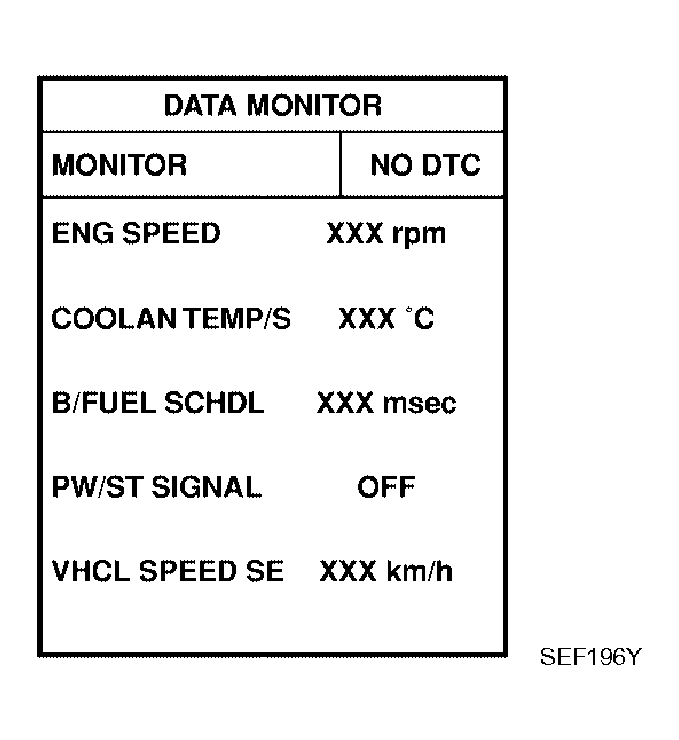

- Select "DATA MONITOR" mode with CONSULT-II.
- Warm engine up to normal operating temperature.
- Maintain the following conditions for at least 60 consecutive seconds.SPECIFIED CONDITIONS
ENG SPEED 1, 600 - 6, 000 rpm COOLAN TEMP/S More than 70°C (158°F) B/FUEL SCHDL 5.5 - 31.8 msec (4 - speed A/T models)
4.4 - 31.8 msec (5 - speed A/T models)Shift lever Except P or N position PW/ST SIGNAL OFF - If 1st trip DTC is detected, go to , "DIAGNOSTIC PROCEDURE ".
