Mil And Data Link Connector: Wiring Diagram

WARNING: This page is about a different car, the 2006 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

For PG Power or Section, go to SYSTEM WIRING DIAGRAMS .

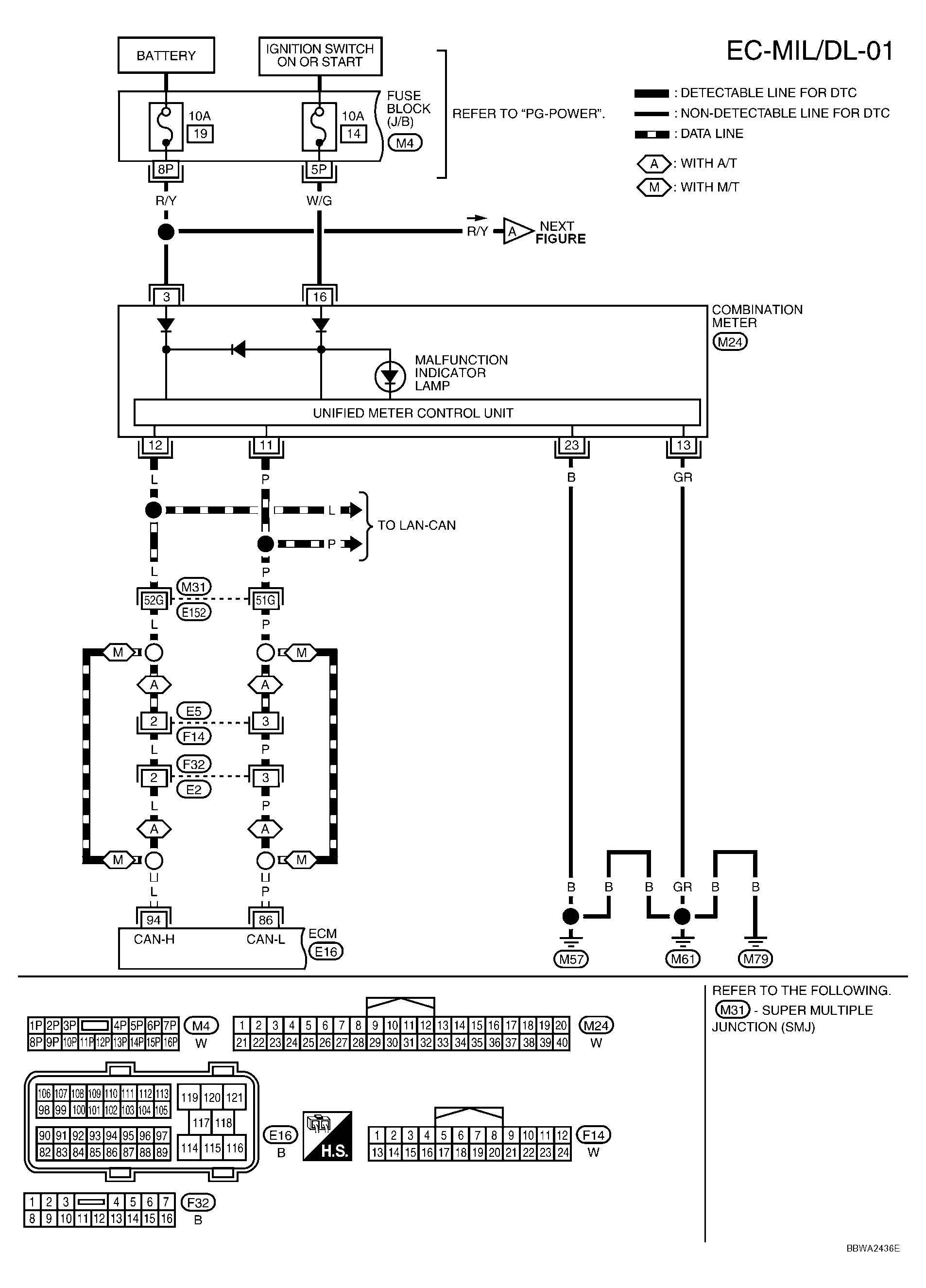

Fig 1: EC-MIL/DL-01 - Wiring Diagram
G04203351Courtesy of NISSAN MOTOR CO., U.S.A.

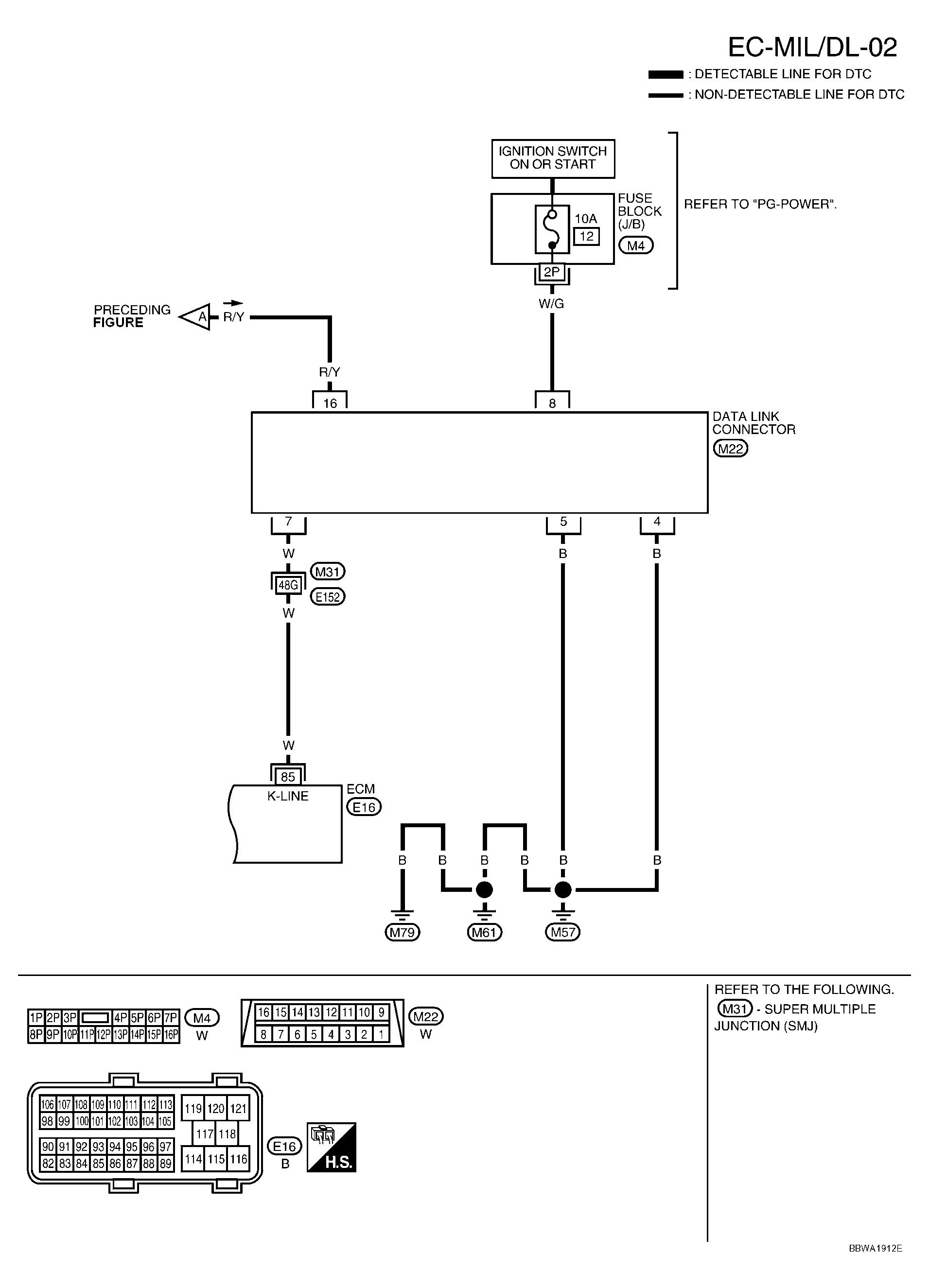

Fig 2: EC-MIL/DL-02 - Wiring Diagram
G04203352Courtesy of NISSAN MOTOR CO., U.S.A.
