Engine Control Component Parts/Control Systems Application

WARNING: This page is about a different car, the 2006 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

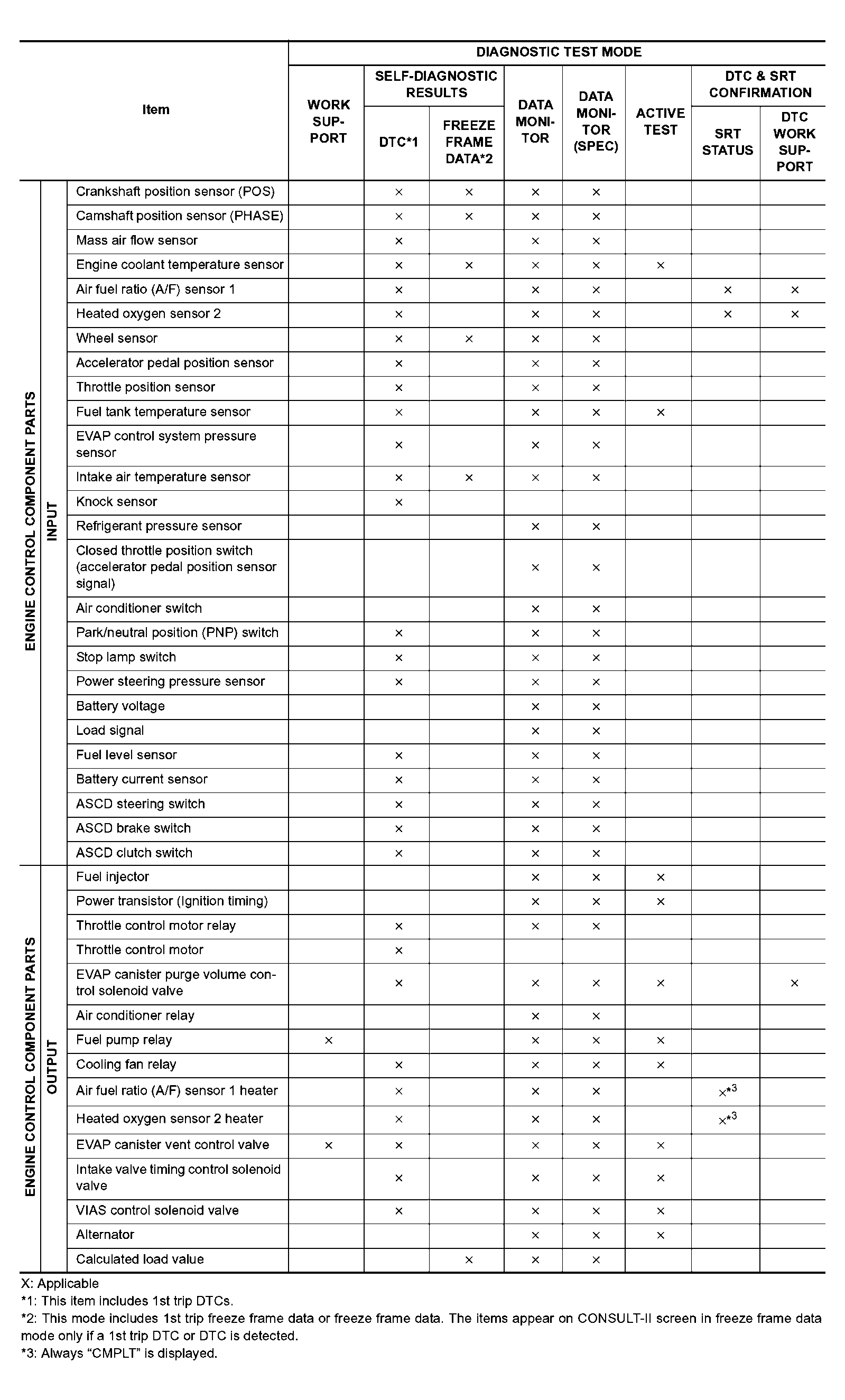

Fig 1: Items And Diagnostic Test Mode Description Chart
G04202617Courtesy of NISSAN MOTOR CO., U.S.A.
