With Consult-II

WARNING: This page is about a different car, the 2005 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition switch ON.

Select "P/N POSI SW" in "DATA MONITOR" mode with CONSULT-II. Then check the "P/N POSI SW" signal under the following conditions.

ON BOARD DIAGNOSTIC LOGIC

Position (Selector lever)	Known-good signal
P or N position (A/T) Neutral position (M/T)	ON
Except above position	OFF

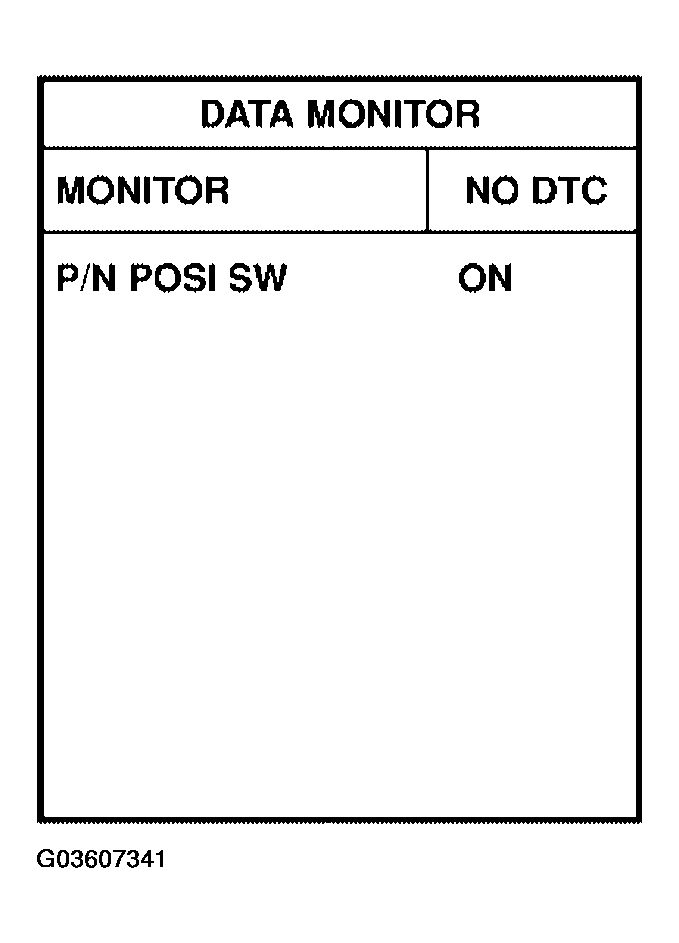

Fig 1: CONSULT-II Display - Data Monitor

Courtesy of NISSAN MOTOR CO., U.S.A.

If NG, go to "DIAGNOSTIC PROCEDURE ".

If OK, go to following step.

Select "DATA MONITOR" mode with CONSULT-II.
Start engine and warm it up to normal operating temperature.

Maintain the following conditions for at least 60 consecutive seconds.

ON BOARD DIAGNOSTIC LOGIC

ENG SPEED	1, 400 - 6, 375 rpm
COOLAN TEMP/S	More than 70°C (158°F)
B/FUEL SCHDL	2.0 - 31.8 msec
VHCL SPEED SE	More than 64 km/h (40 MPH)
Selector lever	Suitable position

If 1st trip DTC is detected, go to "DIAGNOSTIC PROCEDURE ".

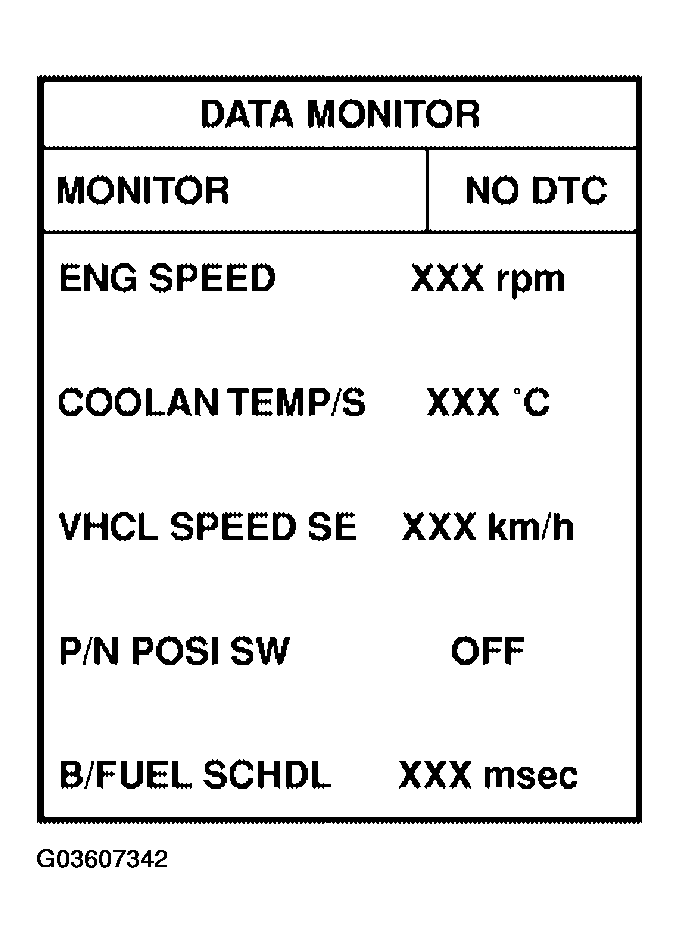

Fig 2: CONSULT-II Display - Data Monitor
Courtesy of NISSAN MOTOR CO., U.S.A.
