With Consult-II

WARNING: This page is about a different car, the 2005 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Start engine.
  2. Select "DATA MONITOR" mode with CONSULT-II.
  3. Drive the vehicle at more than 40 km/h (25 MPH).
  4. If DTC is detected, go to "DIAGNOSTIC PROCEDURE ".

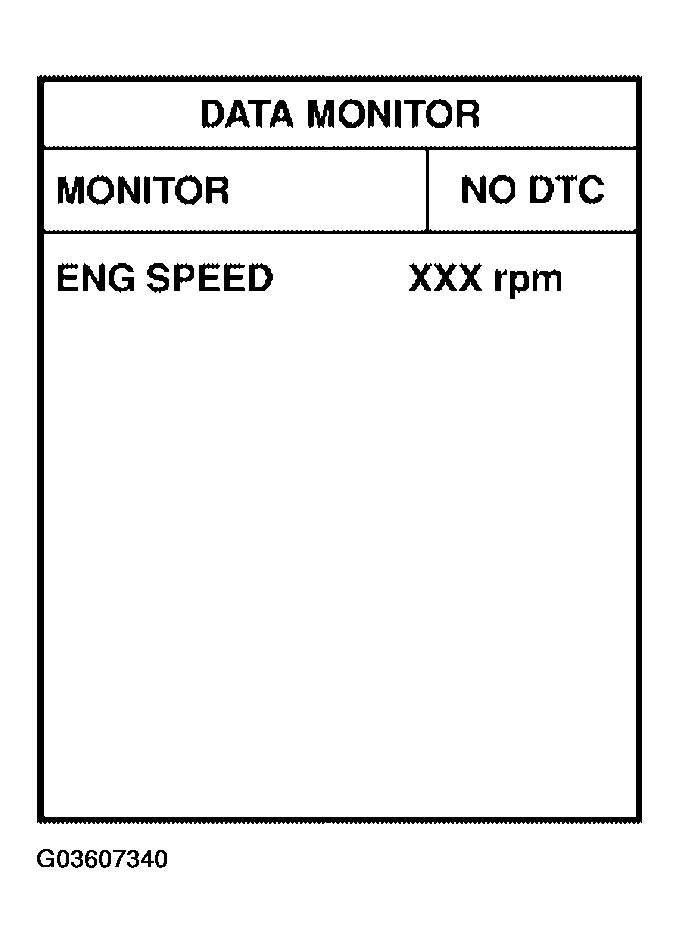

    Fig 1: CONSULT-II Display - Data Monitor
    G03607340Courtesy of NISSAN MOTOR CO., U.S.A.
