With Consult-II

WARNING: This page is about a different car, the 2005 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Start engine (VDC switch OFF).
  2. Select "DATA MONITOR" mode with CONSULT-II.
  3. Press MAIN switch and make sure that CRUISE indicator lights up.
  4. Drive the vehicle for at least 5 consecutive seconds under the following condition.
    ON BOARD DIAGNOSTIC LOGIC

    VHCL SPEED SE More than 30 km/h (19 MPH)
    Selector lever Suitable position

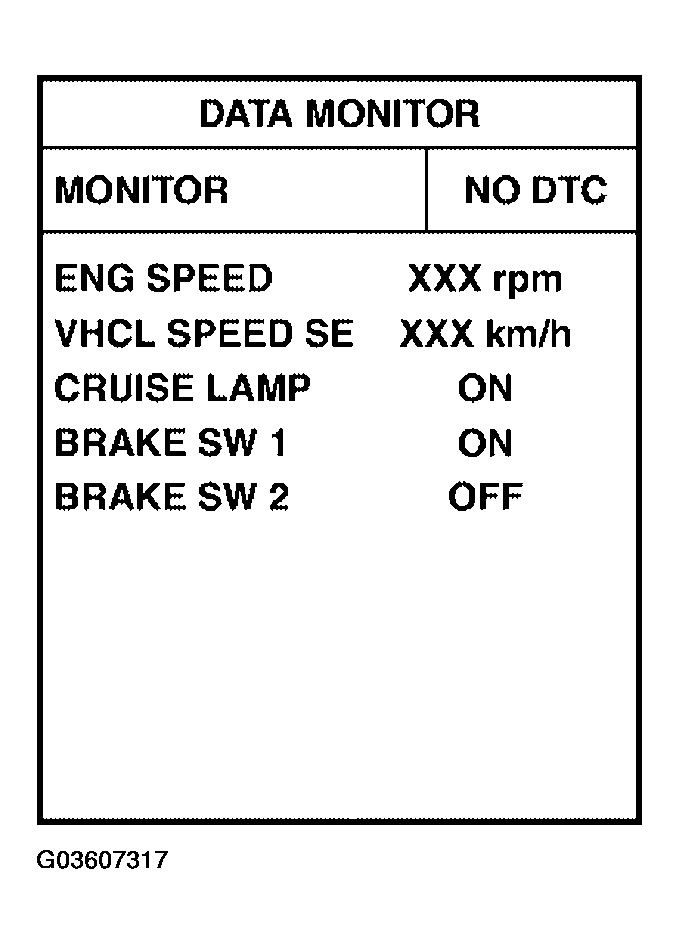

    Fig 1: CONSULT-II Display - Data Monitor
    G03607317Courtesy of NISSAN MOTOR CO., U.S.A.

    If 1st trip DTC is detected, go to "DIAGNOSTIC PROCEDURE ".

    If 1st trip DTC is not detected, go to the following step.

  5. Drive the vehicle for at least 5 consecutive seconds under the following condition.
    ON BOARD DIAGNOSTIC LOGIC

    VHCL SPEED SE More than 30 km/h (19 MPH)
    Selector lever Suitable position
    Driving location Depress the brake pedal for more than five seconds so as not to come off from the above-mentioned vehicle speed.
  6. If 1st trip DTC is detected, go to "DIAGNOSTIC PROCEDURE "
