With CONSULT-II

WARNING: This page is about a different car, the 2005 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch ON.
  2. Select "DATA MONITOR" mode with CONSULT-II.
  3. If 1st trip DTC is detected, go to "DIAGNOSTIC PROCEDURE ".

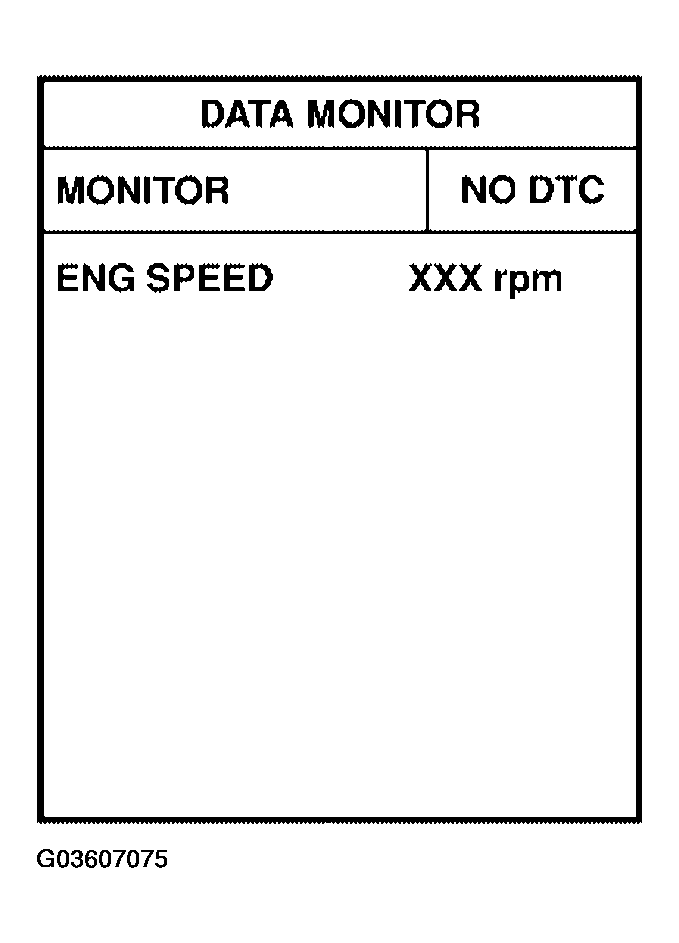

    Fig 1: CONSULT-II Display - Data Monitor
    G03607075Courtesy of NISSAN MOTOR CO., U.S.A.
