With Consult-II

WARNING: This page is about a different car, the 2005 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Start engine (VDC switch OFF).
  2. Read "VHCL SPEED SE" in "DATA MONITOR" mode with CONSULT-II. The vehicle speed on CONSULT-II should exceed 10 km/h (6 MPH) when rotating wheels with suitable gear position.

    If NG, go to "DIAGNOSTIC PROCEDURE ".

    If OK, go to following step.

  3. Select "DATA MONITOR" mode with CONSULT-II.
  4. Warm engine up to normal operating temperature.
  5. Maintain the following conditions for at least 60 consecutive seconds.

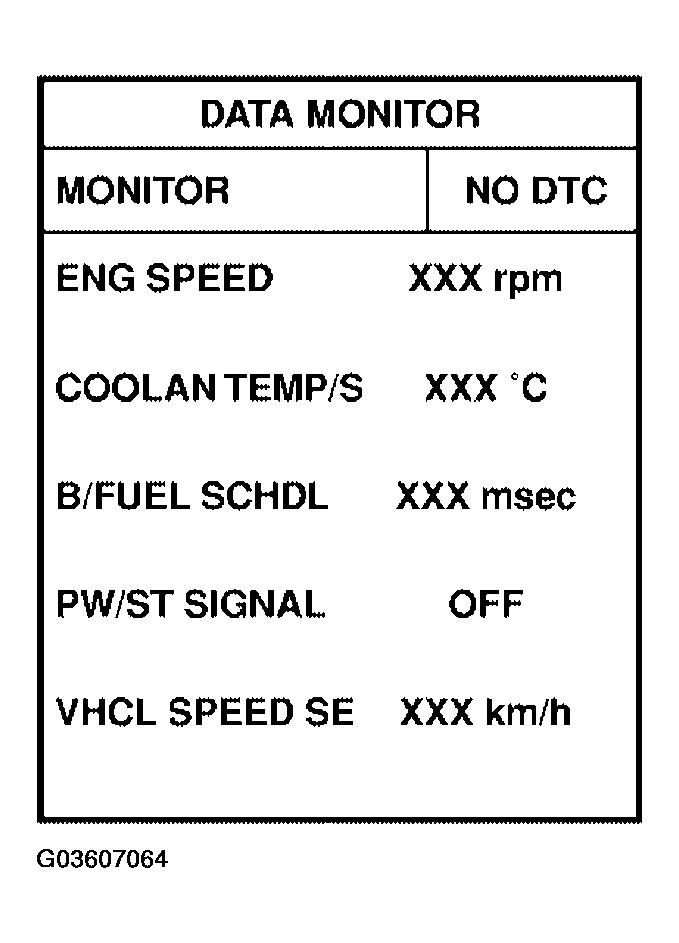

    Fig 1: CONSULT-II Display - Data Monitor
    G03607064Courtesy of NISSAN MOTOR CO., U.S.A.
    SCAN TOOL DISPLAY SPECIFICATIONS

    ENG SPEED 1, 550 - 6, 000 rpm (M/T)
    1, 700 - 6, 000 rpm (A/T)
    COOLAN TEMP/S More than 70°C (158°F)
    B/FUEL SCHDL 5.5 - 31.8 msec (M/T)
    6.3 - 31.8 msec (A/T)
    Selector lever Except Neutral position (M/T)
    Except P or N position (A/T)
    PW/ST SIGNAL OFF
  6. If 1st trip DTC is detected, go to "DIAGNOSTIC PROCEDURE ".
