DTC P0181: FTT Sensor: Wiring Diagram

WARNING: This page is about a different car, the 2005 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

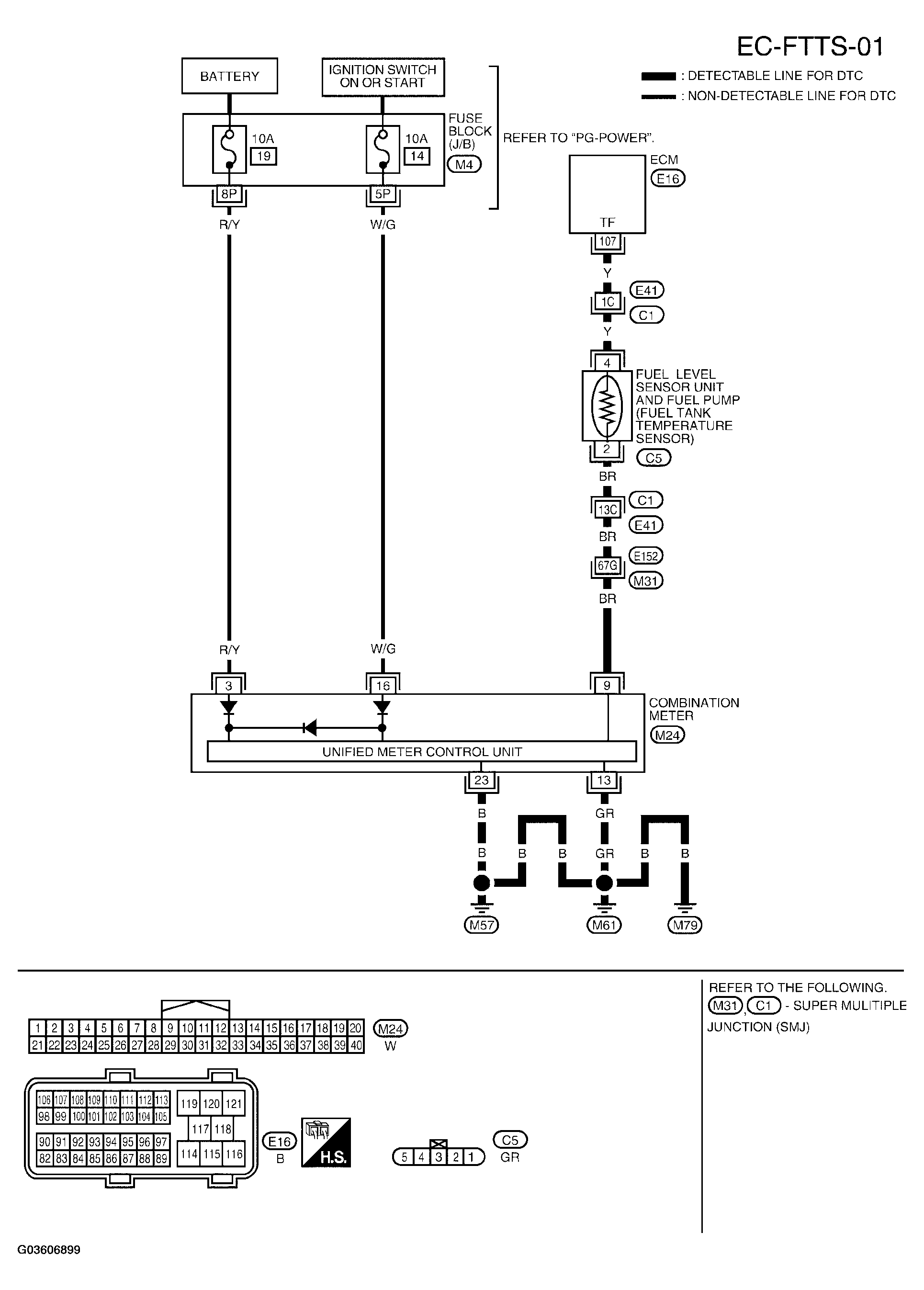

Fig 1: Wiring Diagram - EC-FTTS-01
G03606899Courtesy of NISSAN MOTOR CO., U.S.A.
