WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

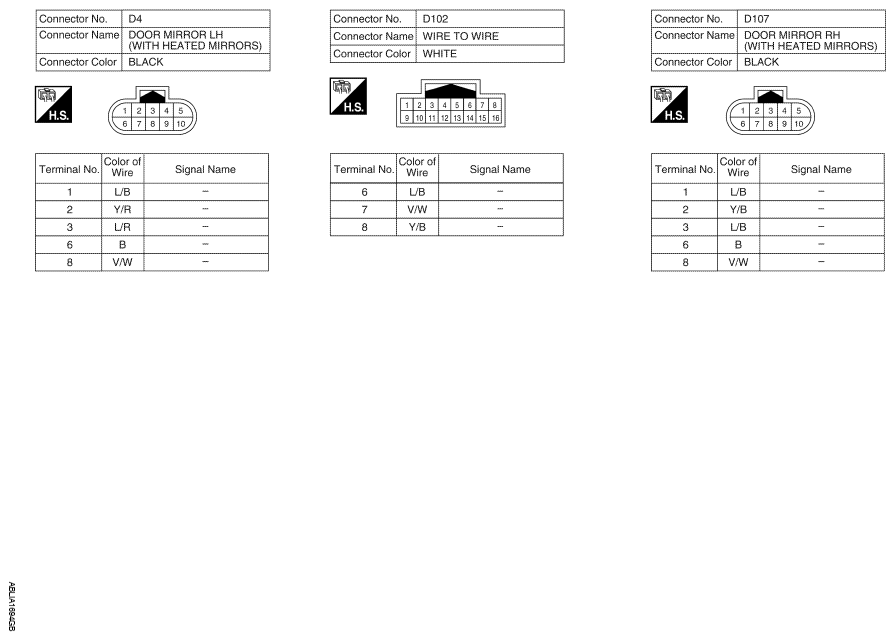

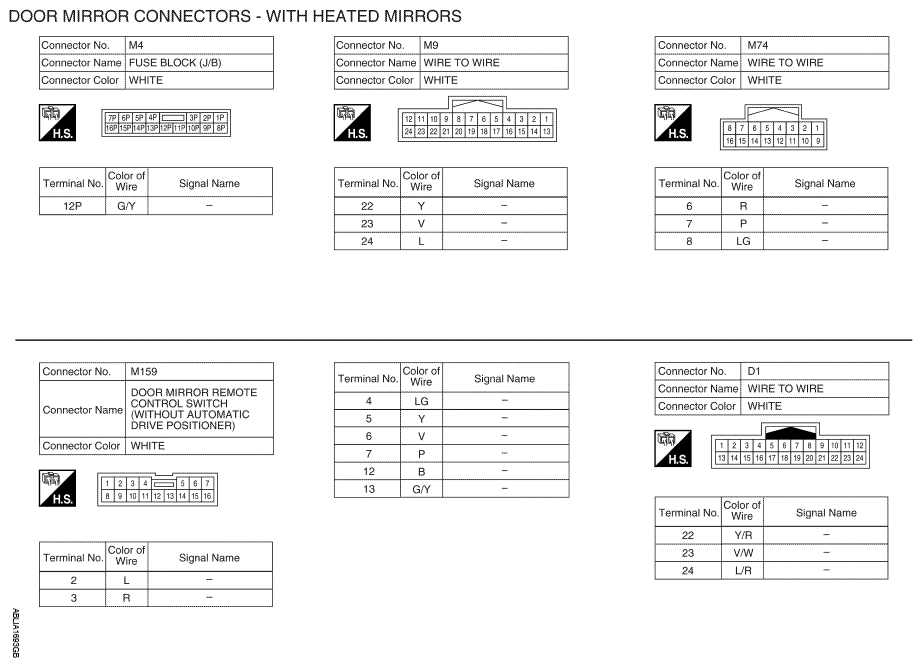

Fig 1: Identifying Door Mirror Connectors - With Heated Mirrors (1 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 2: Identifying Door Mirror Connectors - With Heated Mirrors (2 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.

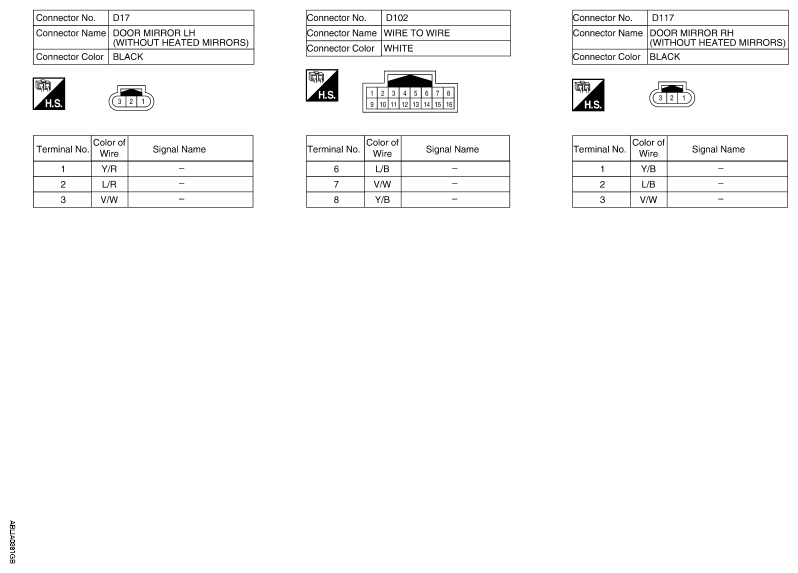

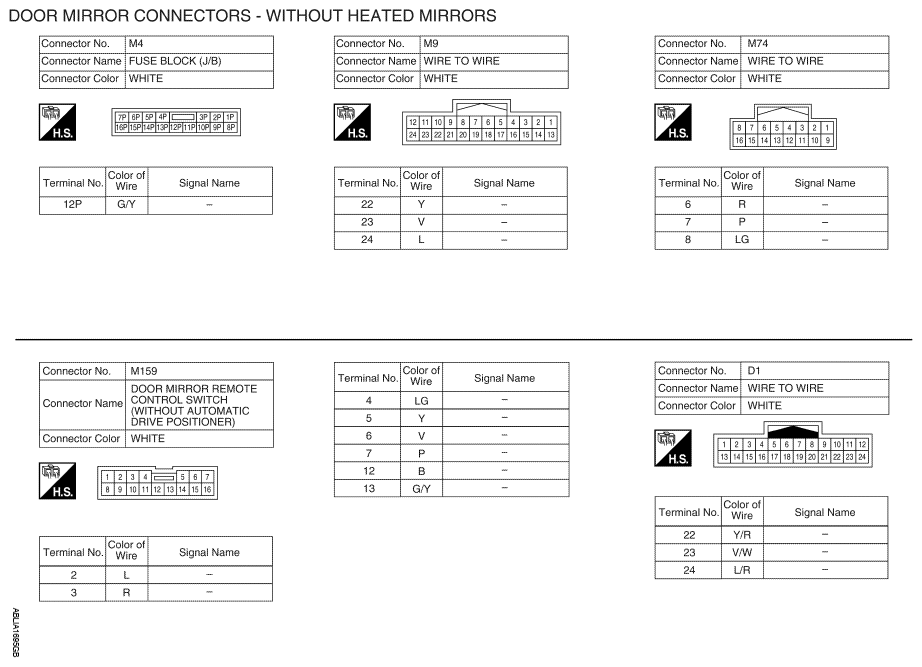

Fig 1: Identifying Door Mirror Connectors - Without Heated Mirrors (1 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 2: Identifying Door Mirror Connectors - Without Heated Mirrors (2 Of 2)
