VK56DE Models

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

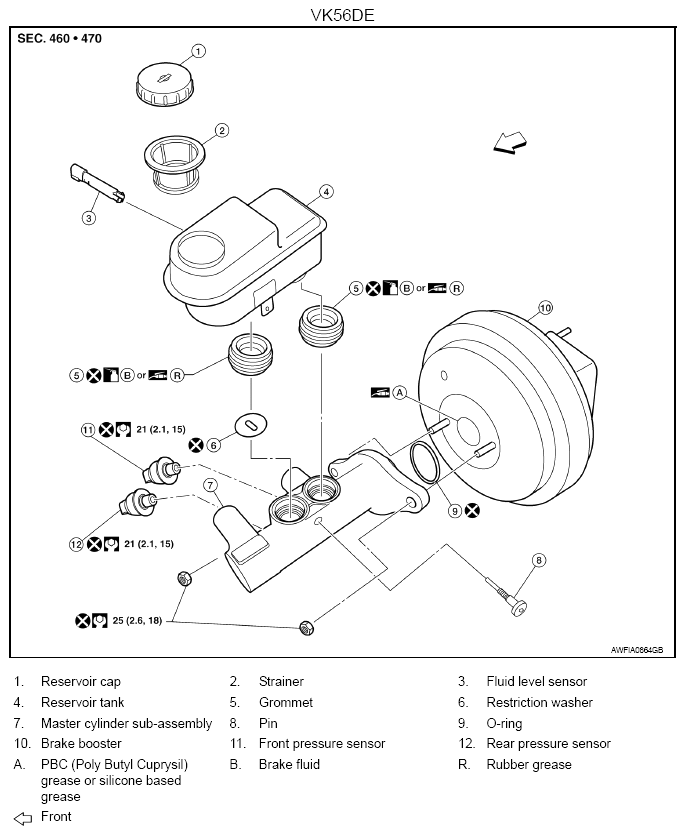

Fig 1: Disassembled View Of Brake Master Cylinder With Torque Specifications (VK56DE)
G08167095
