Blower Motor: Component

WARNING: This page is about a different car, the 2011 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

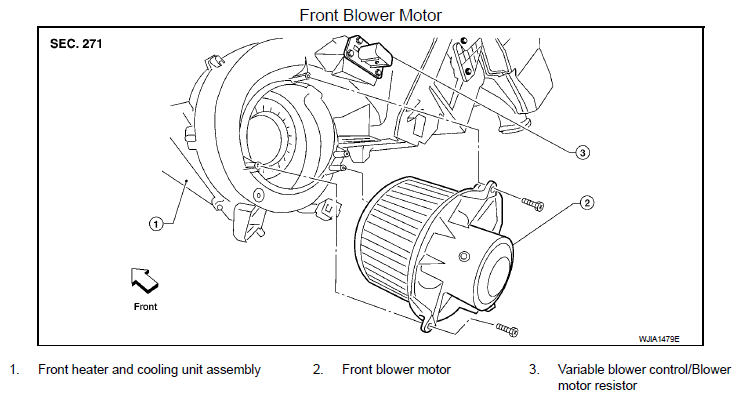

Fig 1: Identifying Front Heater And Cooling Unit Assembly (Front Blower Motor)
G07155703
