Body Side Trim: Component

WARNING: This page is about a different car, the 2011 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

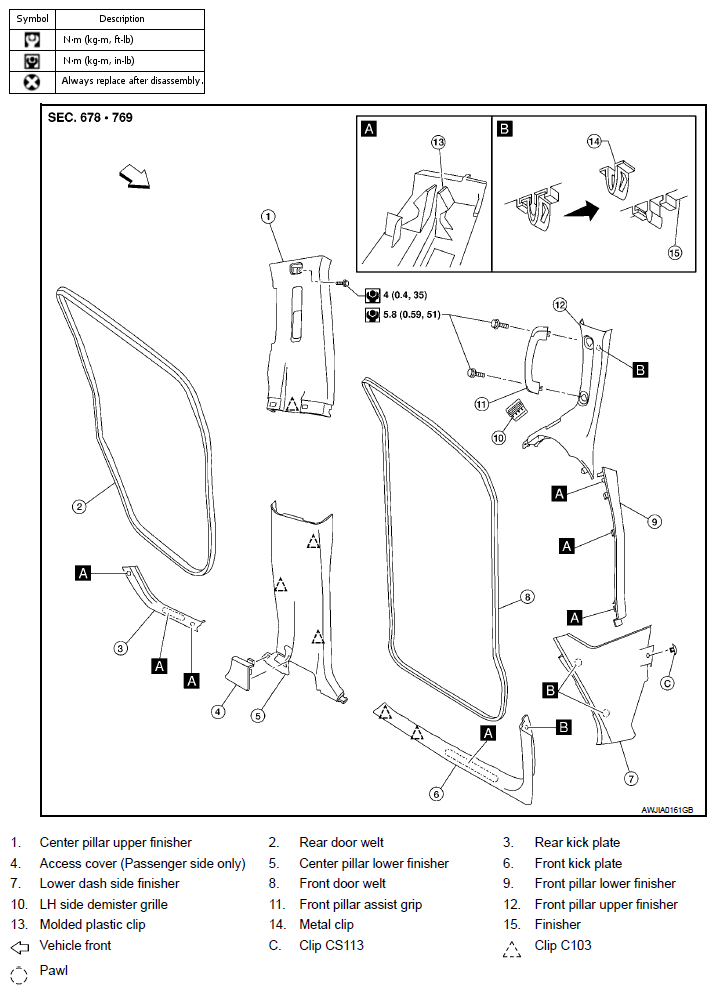

Fig 1: Identifying Body Side Trim Components
G07155953
CAUTION:
  • Wrap the tip of suitable tool with a cloth when removing metal clips from finishers.
  • When removing or installing body side door welts, do not allow butyl seal to come in contact with pillar finisher.
