Exploded View

WARNING: This page is about a different car, the 2011 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

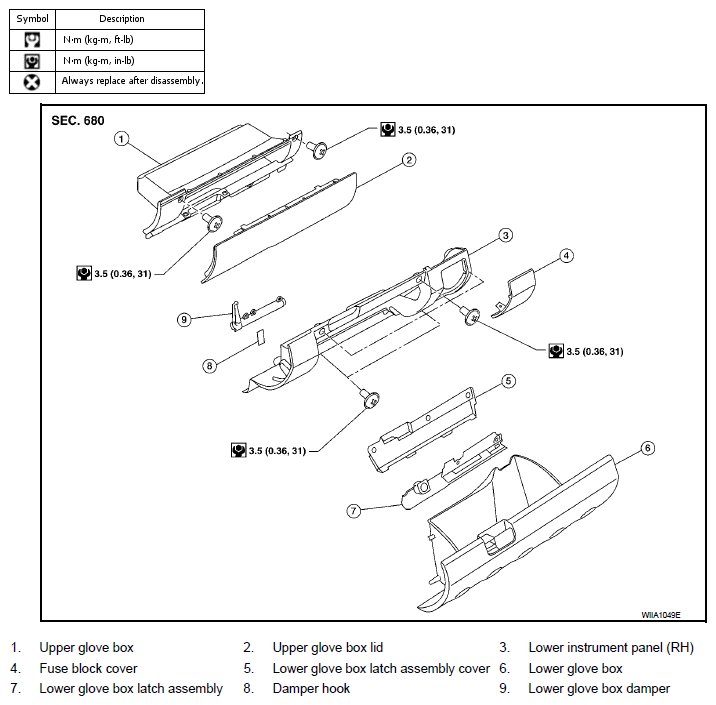

Fig 1: Identifying Instrument Lower Panel RH And Glove Box Components
G07155978
