Wiring Diagram - METER

WARNING: This page is about a different car, the 2008 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For references to PG-Power, see POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

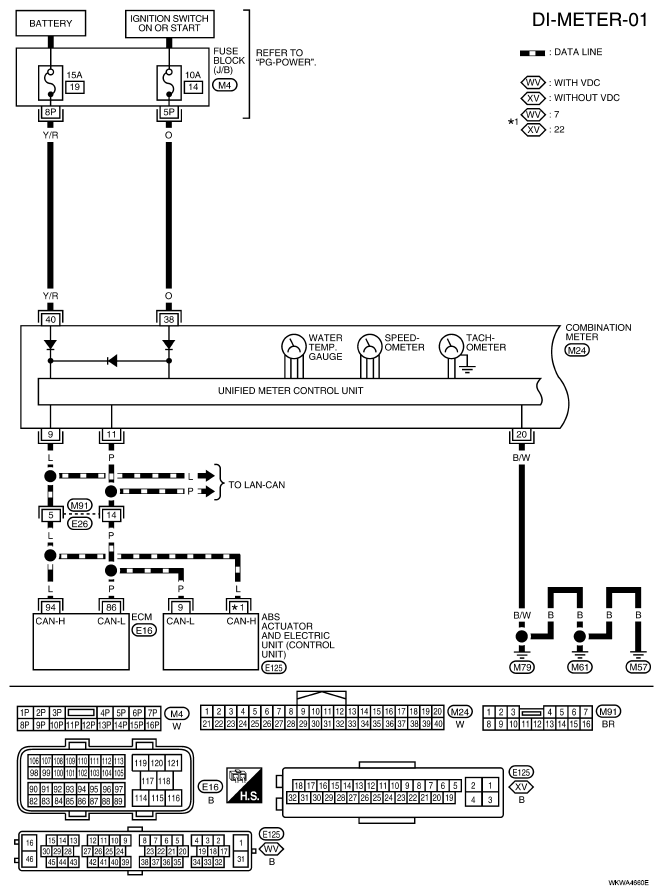

Fig 1: Combination Meter Wiring Diagram (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

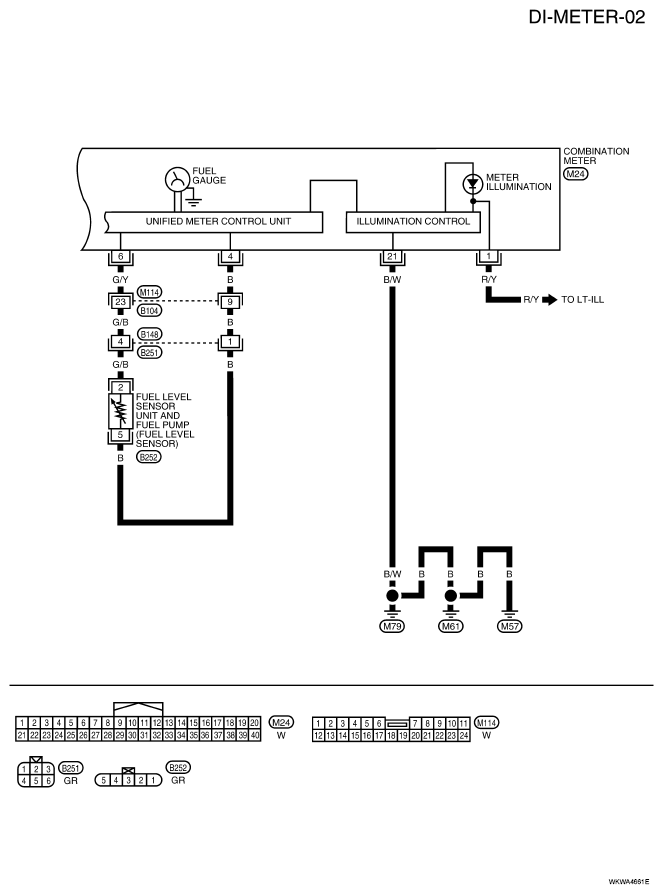

Fig 2: Combination Meter Wiring Diagram (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
