Clip And Fastener: Description

WARNING: This page is about a different car, the 2008 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Clips and fasteners correspond to the following numbers and symbols.
Replace any clips and/or fasteners which are damaged during removal or installation.

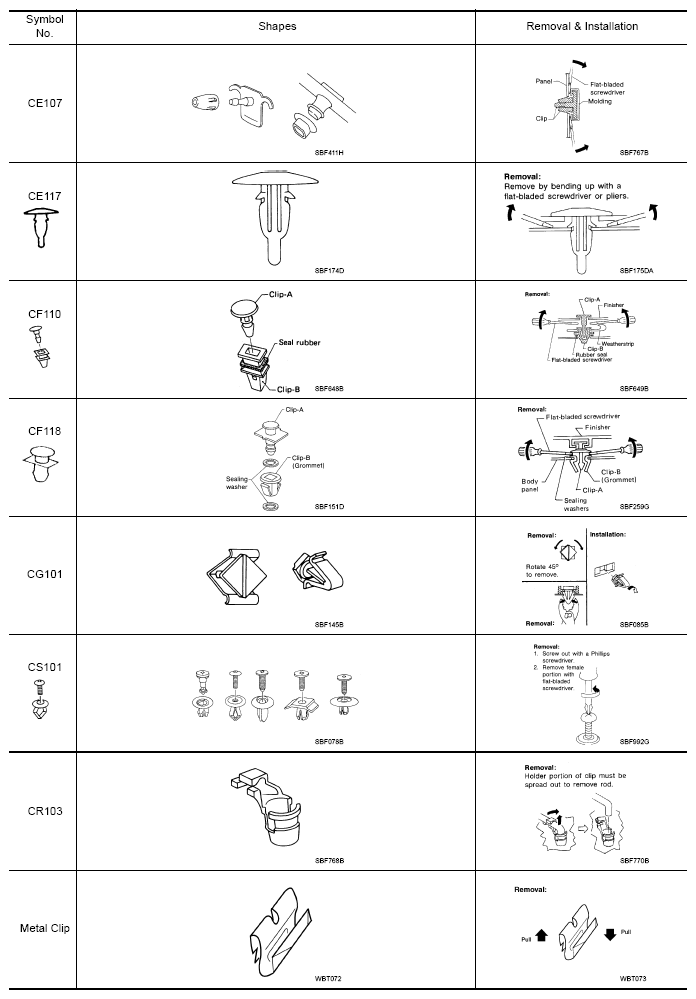

Fig 1: Identifying Clip And Fastener (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

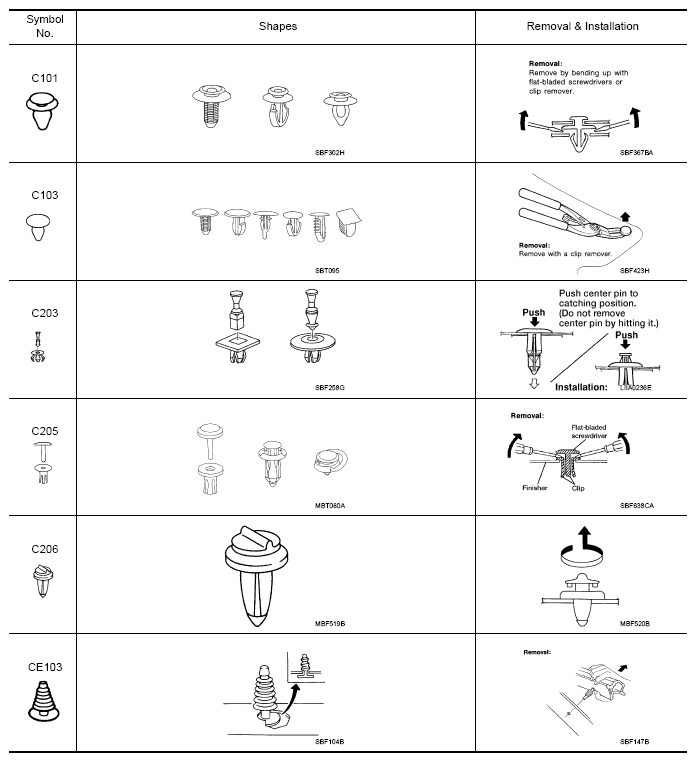

Fig 2: Identifying Clip And Fastener (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
