DTC P0181: Fuel Tank Temperature Sensor Circuit Range/Performance

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Before performing diagnostic procedure, follow testing procedure. See TESTING PROCEDURE  under SELF-DIAGNOSTIC SYSTEM.

For diagnostic procedures, see Fig 1-Fig 5 .

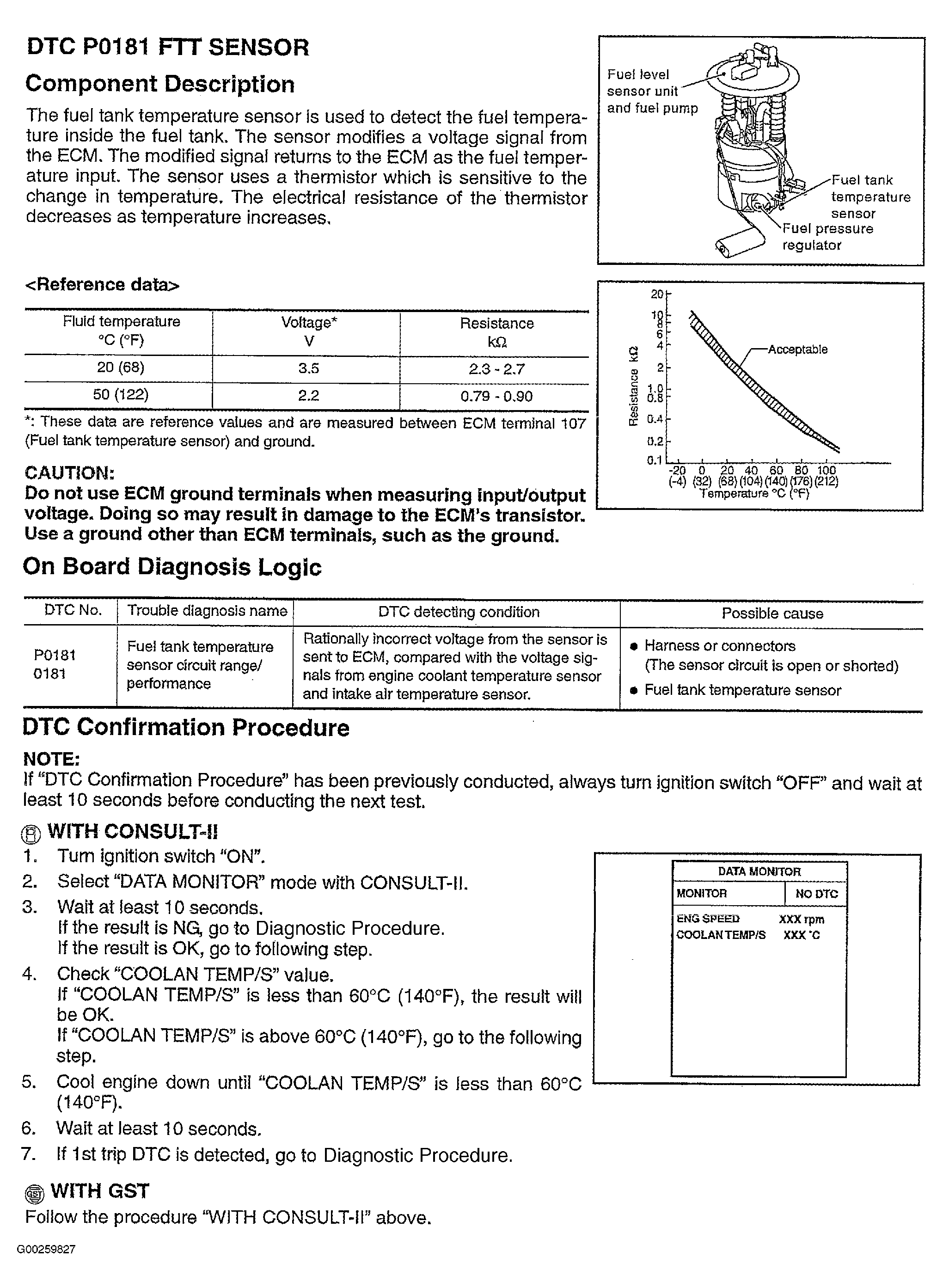

Fig 1: DTC P0181 (1 Of 4)
G00259827Courtesy of NISSAN MOTOR CO., U.S.A.

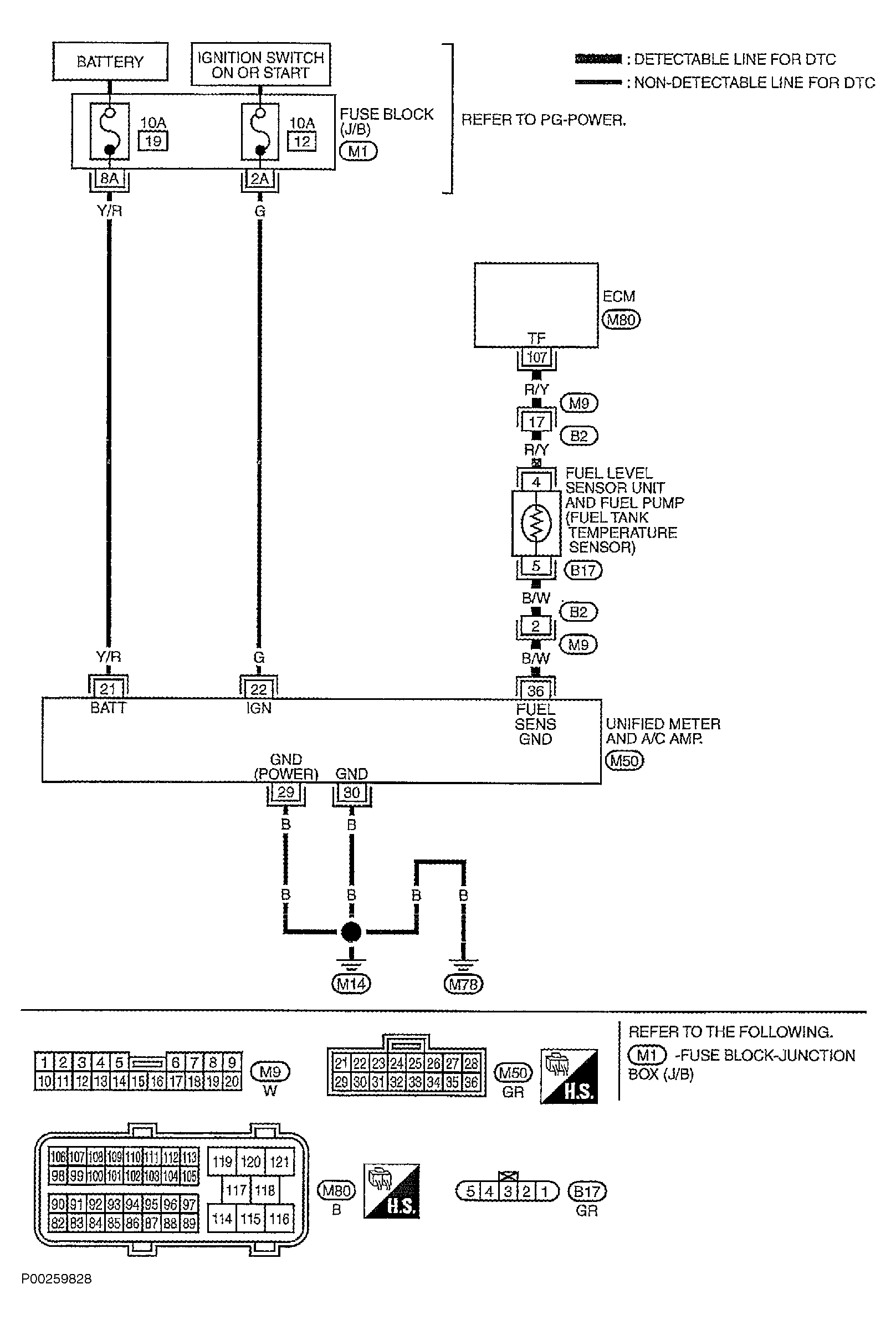

Fig 2: DTC P0181 (2 Of 4)
G00259828Courtesy of NISSAN MOTOR CO., U.S.A.

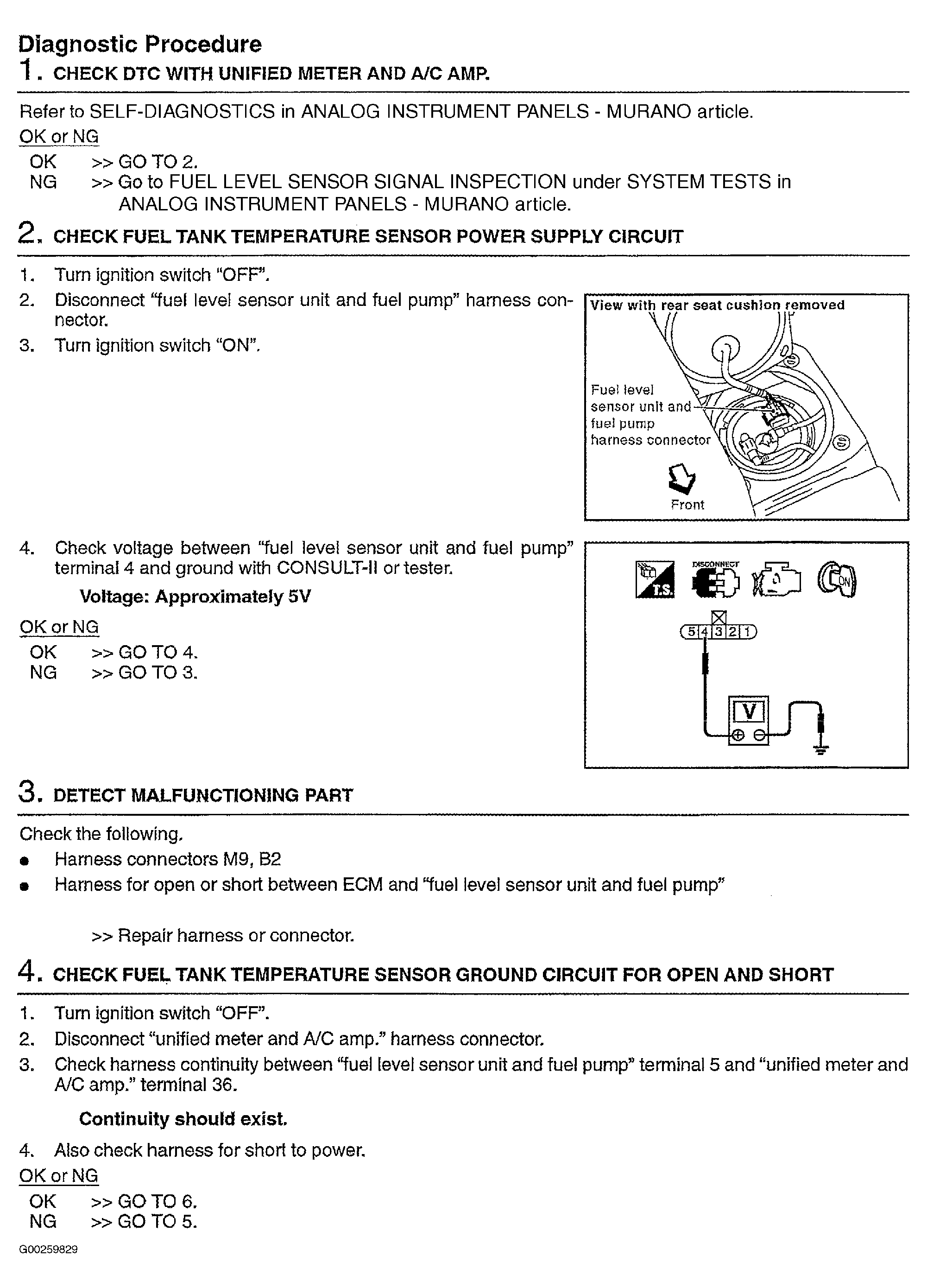

Fig 3: DTC P0181 (3 Of 4)
G00259829Courtesy of NISSAN MOTOR CO., U.S.A.

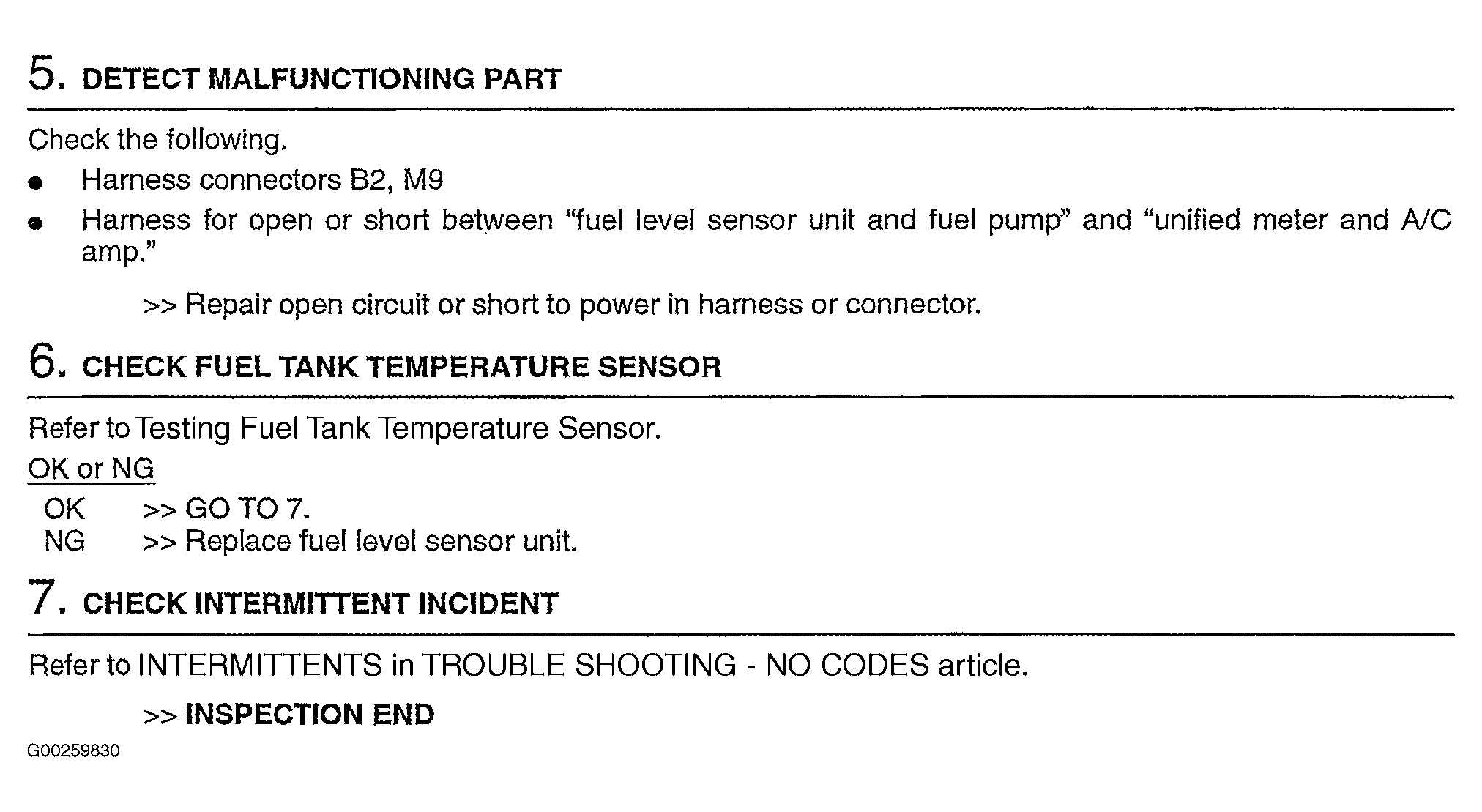

Fig 4: DTC P0181 (4 Of 4)
G00259830Courtesy of NISSAN MOTOR CO., U.S.A.

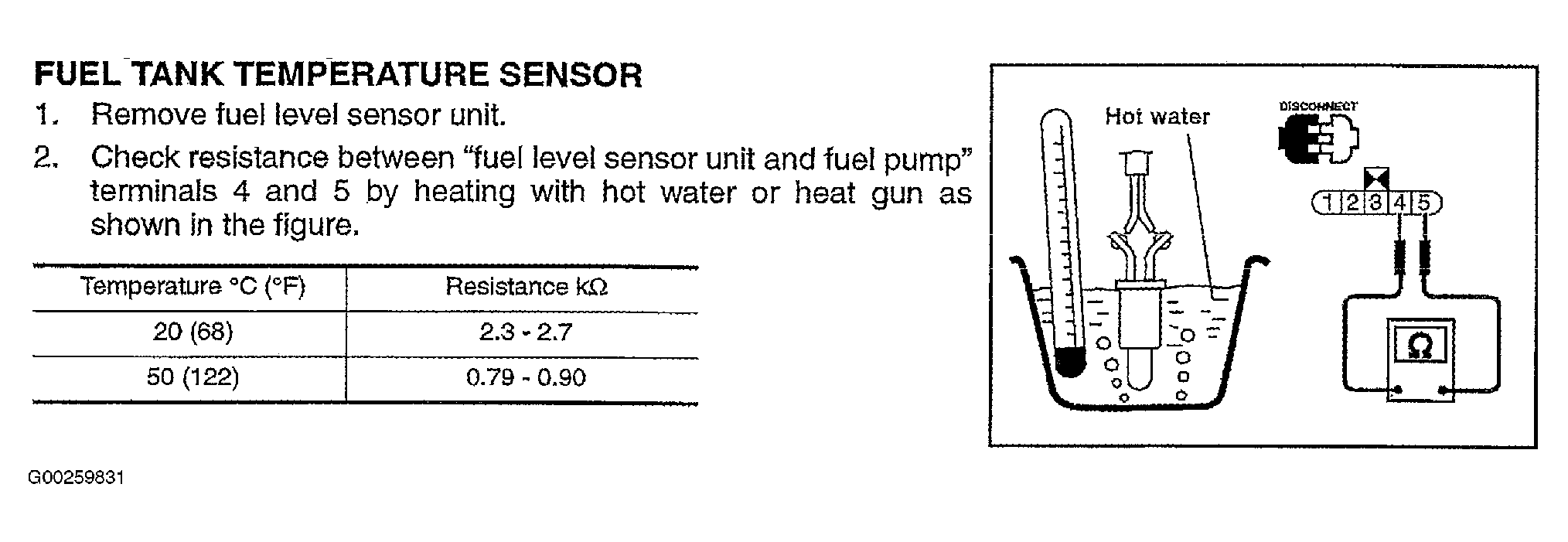

Fig 5: Testing Fuel Tank Temperature Sensor
G00259831Courtesy of NISSAN MOTOR CO., U.S.A.
