Preliminary Check

WARNING: This page is about a different car, the 2008 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

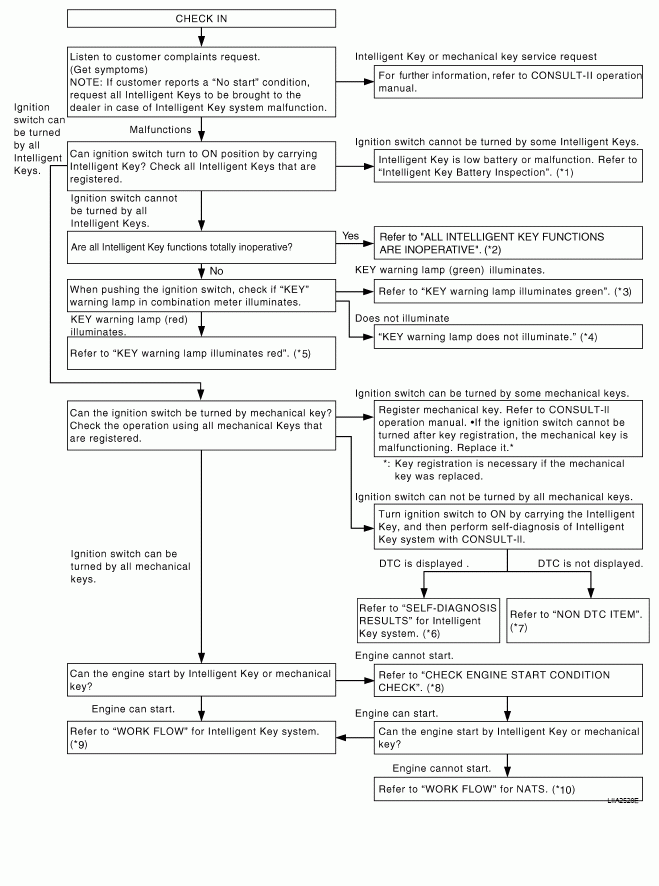

Fig 1: Trouble Diagnosis Flow Chart

G04916795

Courtesy of NISSAN MOTOR CO., U.S.A.

*1: INTELLIGENT KEY BATTERY INSPECTION

*2: ALL INTELLIGENT KEY FUNCTIONS ARE INOPERATIVE

*3: KEY WARNING LAMP (GREEN) ILLUMINATES

*4: KEY WARNING LAMP DOES NOT ILLUMINATE

*5: KEY WARNING LAMP (RED) ILLUMINATES

*6: SELF-DIAGNOSTIC RESULTS

*7: NON DTC ITEM

*8: ENGINE START CONDITION CHECK
