Cluster Lid D: Removal

WARNING: This page is about a different car, the 2008 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

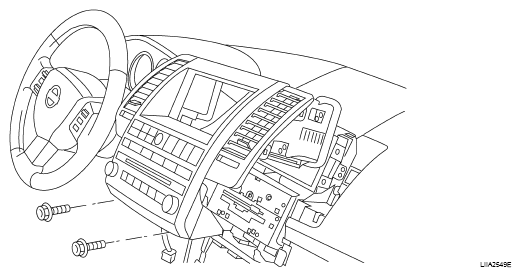

Fig 1: Identifying Cluster Lid D
G04917303Courtesy of NISSAN MOTOR CO., U.S.A.
  1. Remove cluster lid C. Refer to "CLUSTER LID C ".
  2. Remove cluster lid D screws using power tool.
  3. Pull cluster lid D toward rear of vehicle to release clips.
  4. Disconnect the electrical connectors.
  5. Remove the audio switch (if equipped) and the center vent ducts.
