Cluster Lid C: Removal

WARNING: This page is about a different car, the 2008 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

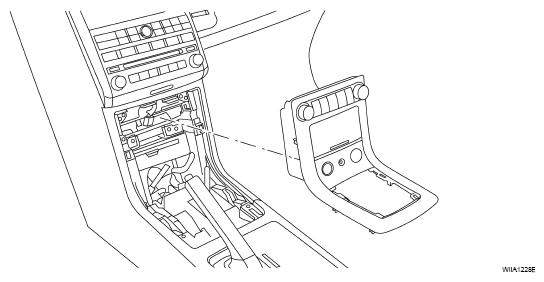

Fig 1: Identifying Cluster Lid C
G04917302Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION: When removing and installing, place shop cloths onto surrounding parts to protect A/T or M/T finisher and center console from damage.
  1. Disconnect battery negative terminal.
  2. Remove the CVT finisher. Refer to "CVT FINISHER ".
  3. Pull up on the rear portion of cluster lid C, once the 4 bottom clips are disengaged, pull rearward to release molded clips at the top of cluster lid C.
  4. Disconnect the electrical connectors.
  5. Remove front air control, storage bin, hazard switch, aux in jack, and power outlet.
