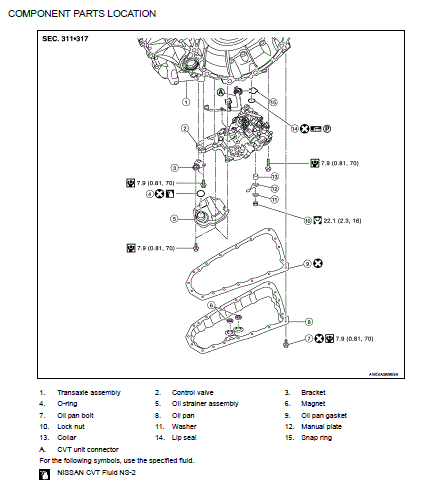

Exploded View

WARNING: This page is about a different car, the 2008 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
G00597783Courtesy of NISSAN MOTOR CO., U.S.A.
