Oil Pan: Installation

WARNING: This page is about a different car, the 2002 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Before installing oil pan, remove old liquid gasket from mating surface using a scraper.
- Also remove old liquid gasket from mating surface of cylinder block.
- Remove old liquid gasket from the bolt hole and thread.

  Fig 1: Removing Old Liquid Gasket From Mating Surface Using Scraper
  Courtesy of NISSAN MOTOR CO., U.S.A.
Apply sealant to front cover gasket and rear oil seal retainer gasket.

Fig 2: Identifying Sealant Applying Area
Courtesy of NISSAN MOTOR CO., U.S.A.

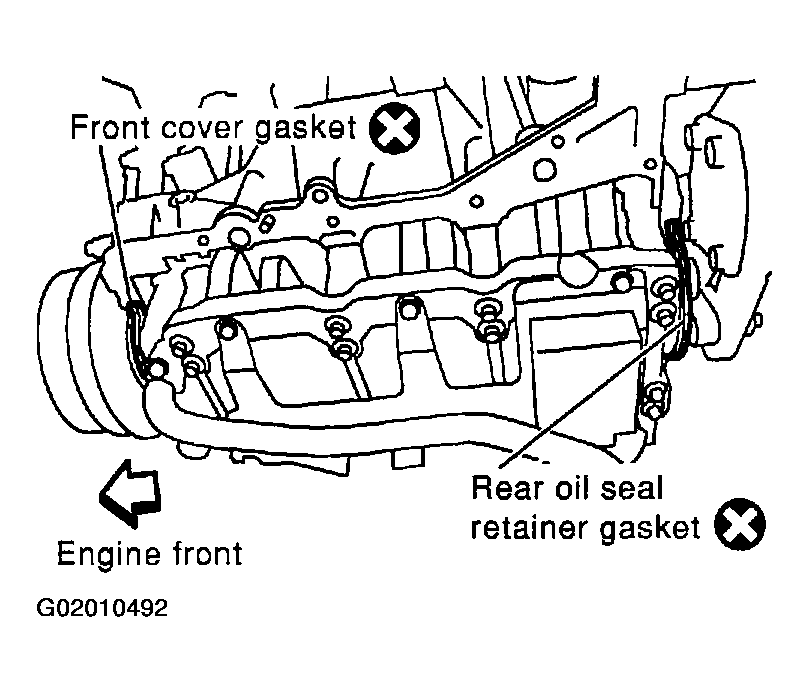

Install front cover gasket and rear oil seal retainer gasket.

Fig 3: Never Installing Old Gasket
Courtesy of NISSAN MOTOR CO., U.S.A.
Apply a continuous bead of liquid gasket to mating surface of aluminum oil pan.
- Use Genuine RTV silicone sealant or equivalent.

  Fig 4: Identifying Groove And Bolt Hole
  Courtesy of NISSAN MOTOR CO., U.S.A.
Apply liquid gasket to inner sealing surface as shown in figure.
- Be sure liquid gasket is 4.0 to 5.0 mm (0.157 to 0.197 in) or 4.5 to 5.5 mm (0.177 to 0.217 in) wide.
- Attaching should be done within 5 minutes after coating.

  Fig 5: Applying Sealant With Sealant Gun
  Courtesy of NISSAN MOTOR CO., U.S.A.
Install O-rings, cylinder block and oil pump body.

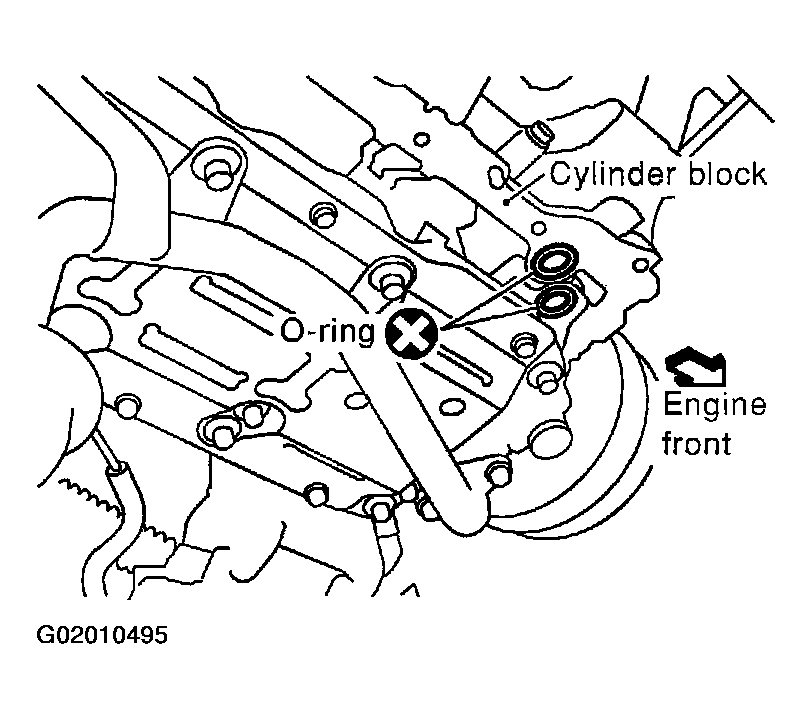

Fig 6: Replacing O-Ring With New One
Courtesy of NISSAN MOTOR CO., U.S.A.
Install aluminum oil pan.
- Tighten bolts in numerical order.
- Wait at least 30 minutes before refilling engine oil.

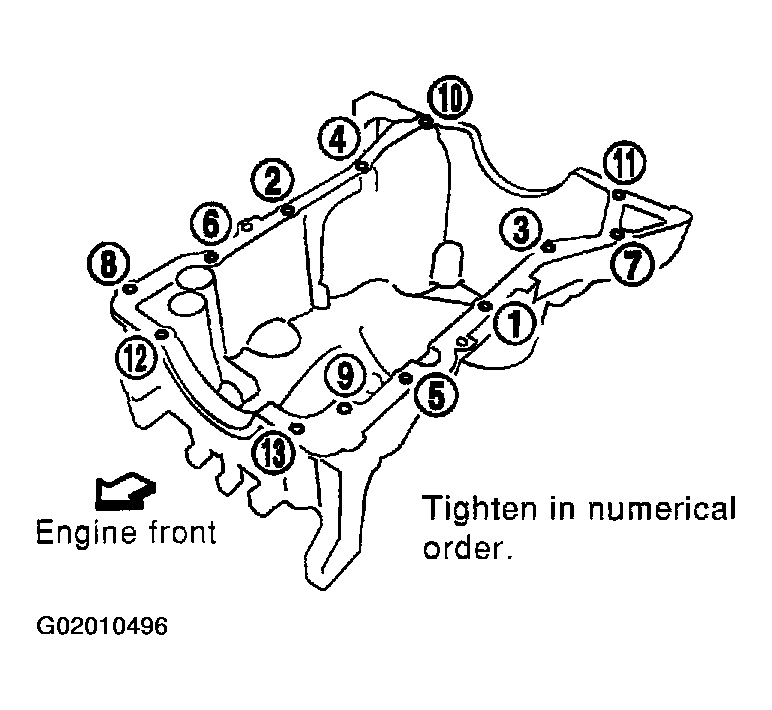

  Fig 7: Tightening Bolts In Numerical Order
  Courtesy of NISSAN MOTOR CO., U.S.A.
Install the four engine-to-transmission bolts. For tightening torque, refer to INSTALLATION or "INSTALLATION ".
Reinstall in the reverse order of removal.

Fig 8: Installing Four Engine-To-Transmission Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.
