Oil Jet

WARNING: This page is about a different car, the 2002 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install oil jets.
    • Insert oil jet knock pin into the cylinder block knock pin hole, and tighten the mounting bolts.

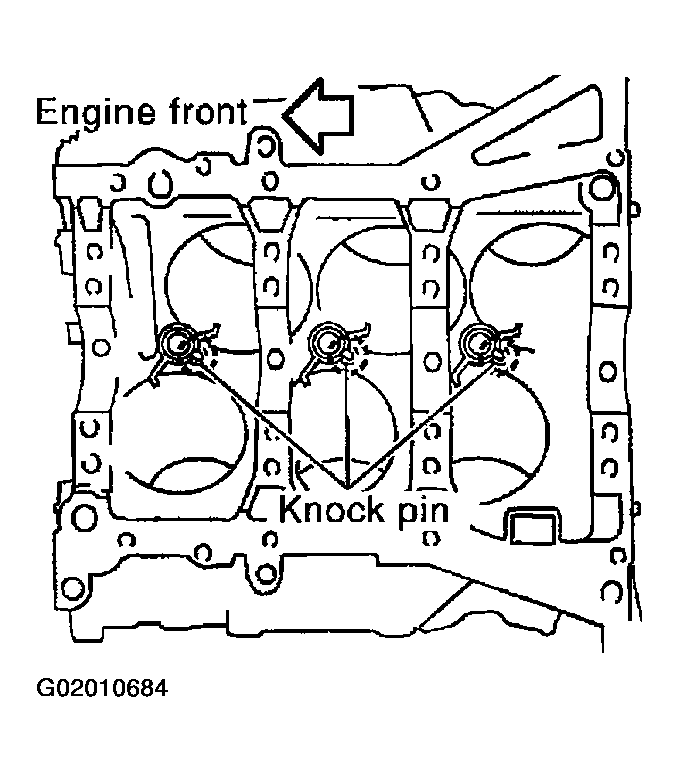

      Fig 1: Locating Knock Pin
      G02010684Courtesy of NISSAN MOTOR CO., U.S.A.
