Removal and Installation: Notes

WARNING: This page is about a different car, the 2007 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

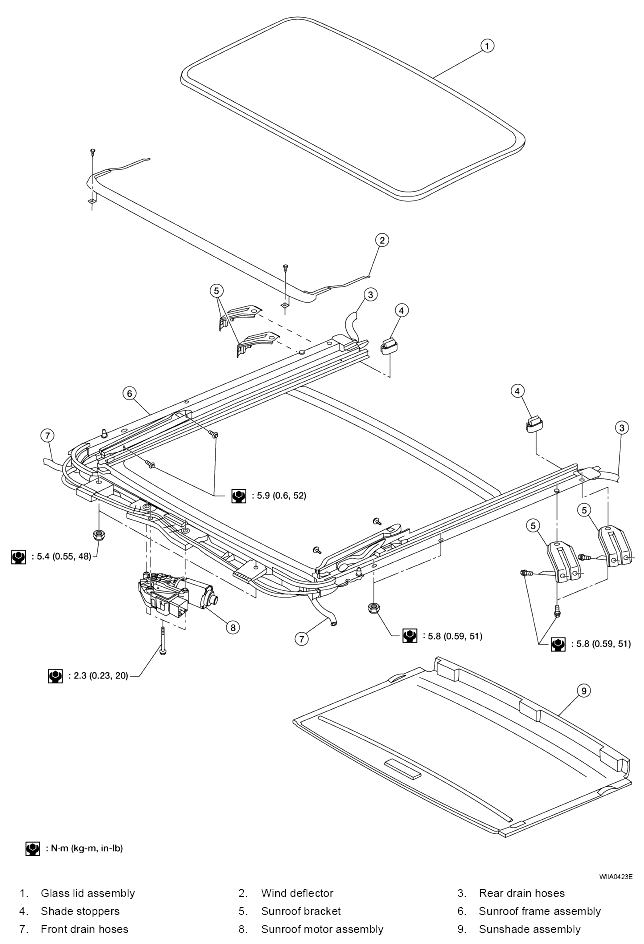

Fig 1: Sunroof Assembly Replacement Components With Torque Specifications

After any adjustment, check sunroof operation and glass lid alignment.
Handle glass lid with care so not to cause damage.
For easier installation, mark each point before removal.

CAUTION:

Always work with a helper.
Before removal, fully close the glass lid assembly. Then, after removal, do not move the motor assembly.
After installing the sunroof and glass lid, check gap adjustment to ensure there is no malfunction.
