Automatic Drive Positioner: Schematic

WARNING: This page is about a different car, the 2007 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

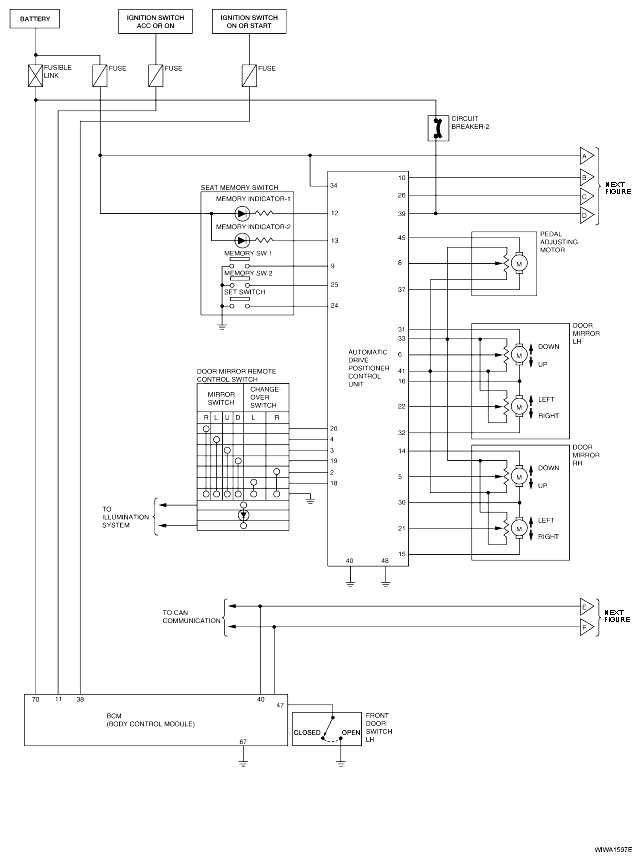

Fig 1: Identifying Automatic Drive Positioner Schematic Diagram (1 Of 2)

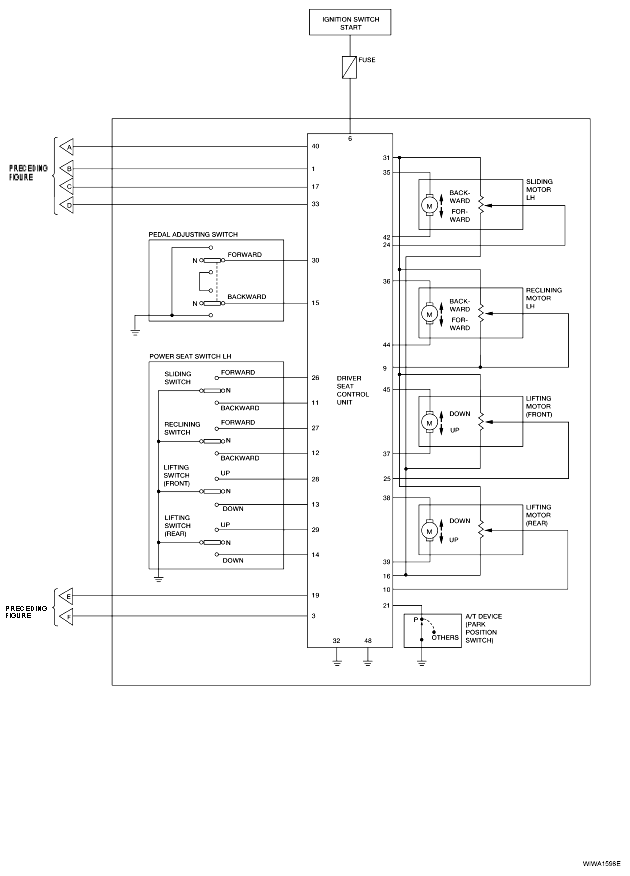

Fig 2: Identifying Automatic Drive Positioner Schematic Diagram (2 Of 2)
