Removal and Installation: Components

WARNING: This page is about a different car, the 2007 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

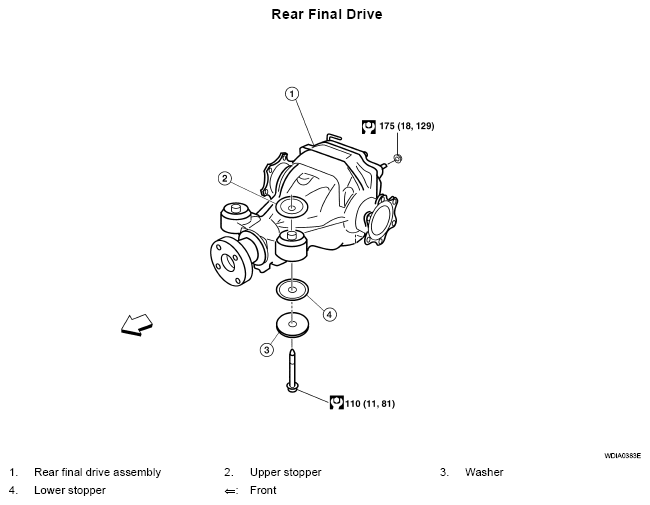

Fig 1: Identifying Rear Final Drive Assembly Components
G04910770

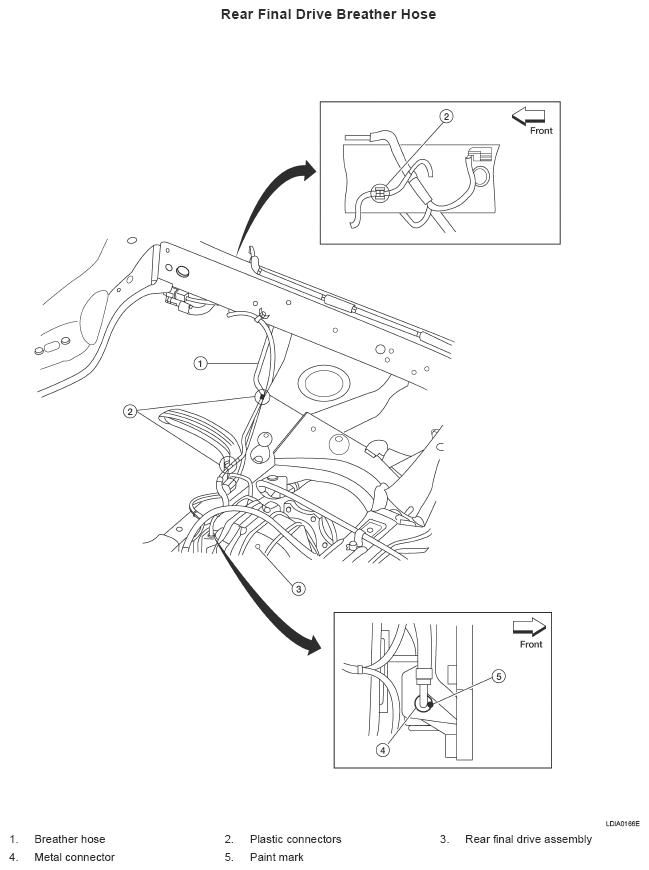

Fig 2: Identifying Rear Final Drive Breather Hose
G04910771
