Blower Motor: Components

WARNING: This page is about a different car, the 2007 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

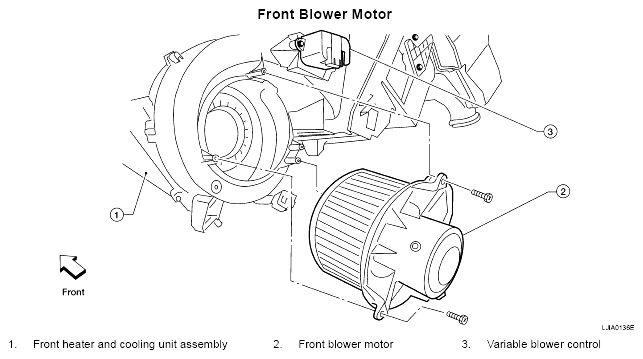

Fig 1: Identifying Front Blower Motor Components
G04913506

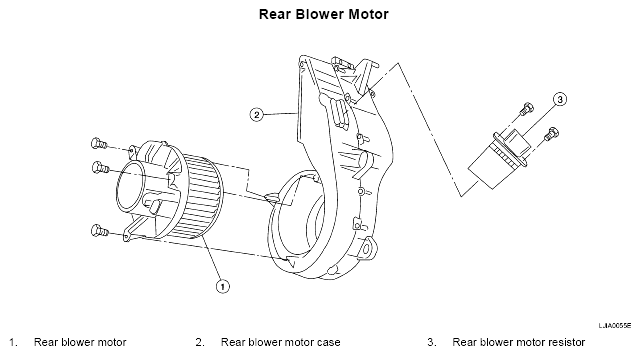

Fig 2: Identifying Rear Blower Motor Components
G04913507
