Outer Rear View Mirror: Reassembly

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL SIDE TURN SIGNAL LIGHT LENS LH
1. First set the lens position by inserting the lens peg to the location labeled A in the illustration. Then insert the lens guide to the V-shaped groove as shown in C in the illustration.
2. Install the lens with the 2 screws labeled B.
3. Connect the connector.
INSTALL MIRROR GARNISH

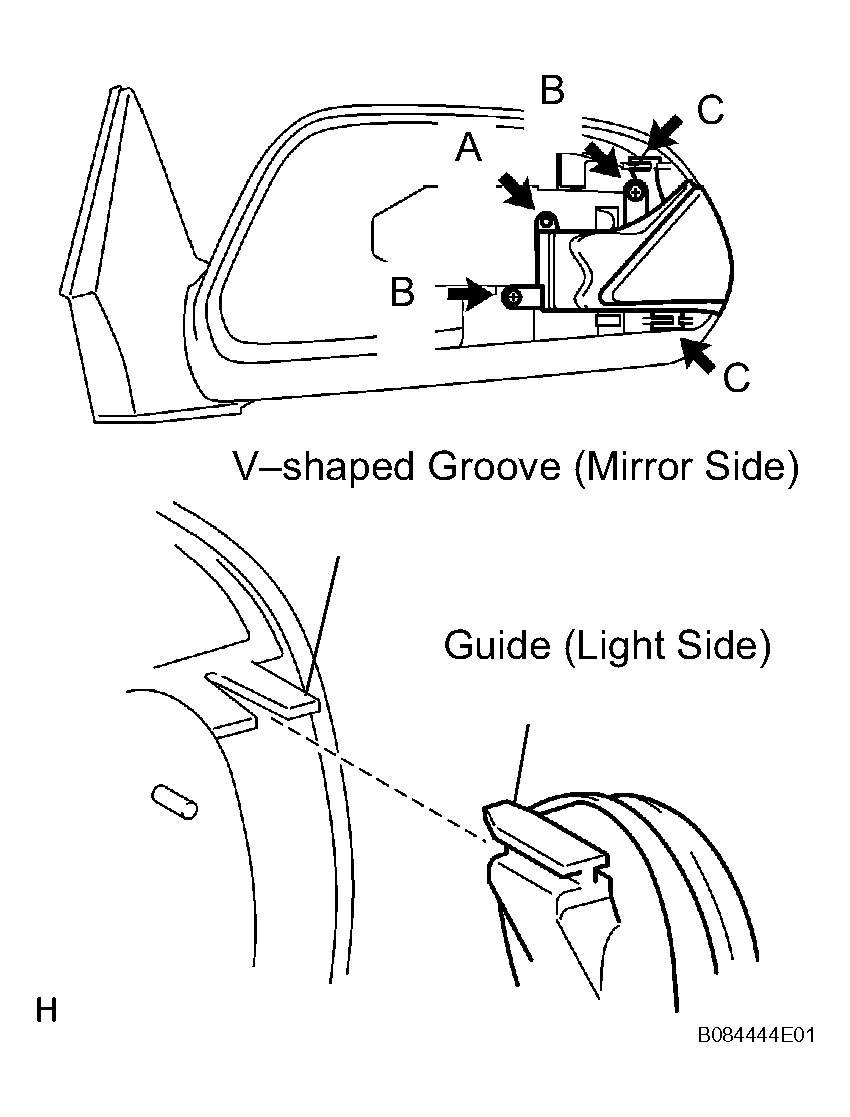

Fig 1: Installing Side Turn Signal Light Lens Screws - LH
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT MIRROR
HINT:

Before connecting the mirror holder, use a dryer to sufficiently heat the backside of the mirror holder where the claws are located.

NOTE: If the ambient temperature is low and the claws are not heated before installing, the claws may be broken.

Fig 2: Heating Backside Of Mirror Holder Where Claws Are Located
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
