Side Mudguard: Installation

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL NO. 1 SIDE MUDGUARD BRACKET
1. Attach the claw to install the bracket.
2. Install the 2 screws.
INSTALL SIDE MUDGUARD SUB-ASSEMBLY LH
1. Attach the 12 clips to install the mudguard.

  Fig 1: Side Mudguard Bracket Screw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the 6 retainers, 2 grommets and 2 screws.

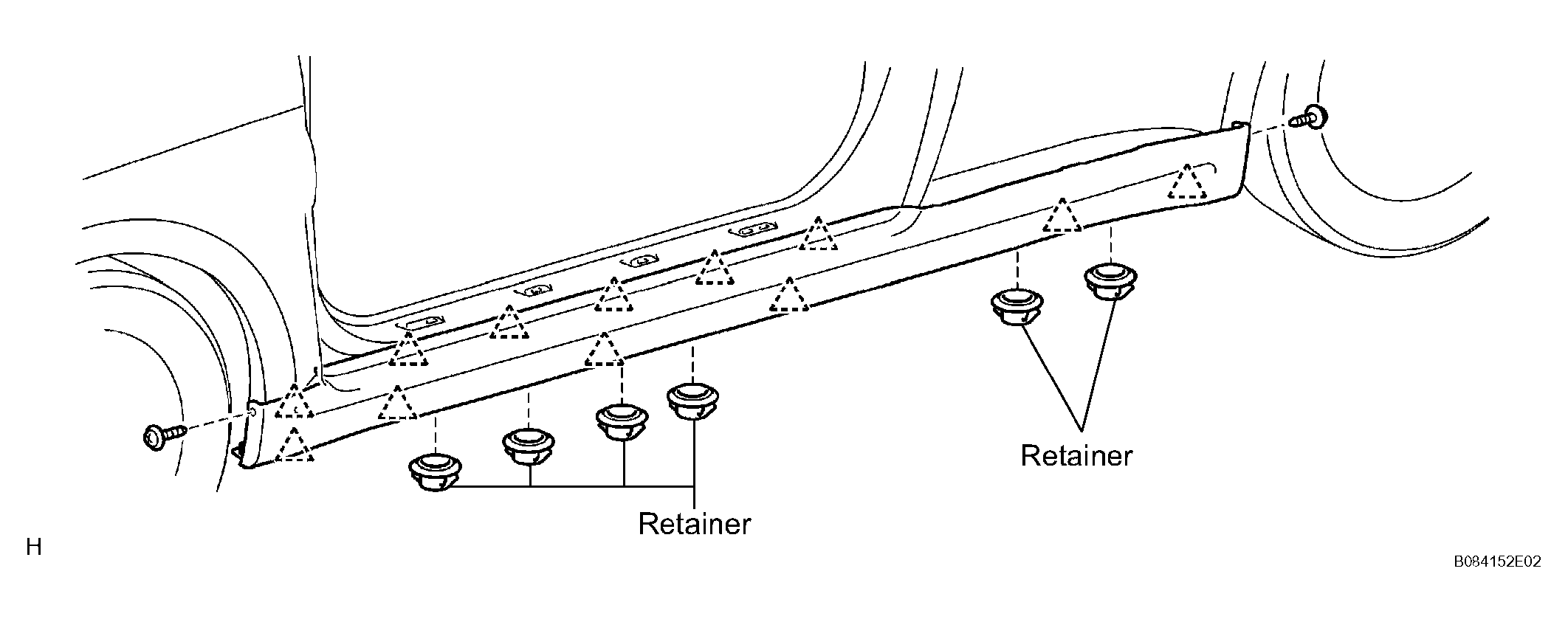

Fig 2: Side Mudguard Sub-Assembly LH Retainers

INSTALL REAR WHEEL HOUSE PLATE FRONT LH
1. Install the wheel house plate with the screw.

  Fig 3: Rear Wheel House Plate Front LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
