Front Floor Footrest: Removal

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE FRONT FLOOR FOOTREST
    1. Using a screwdriver, detach the 2 clips and remove the footrest.

      HINT:

      Tape the screwdriver tip before use.

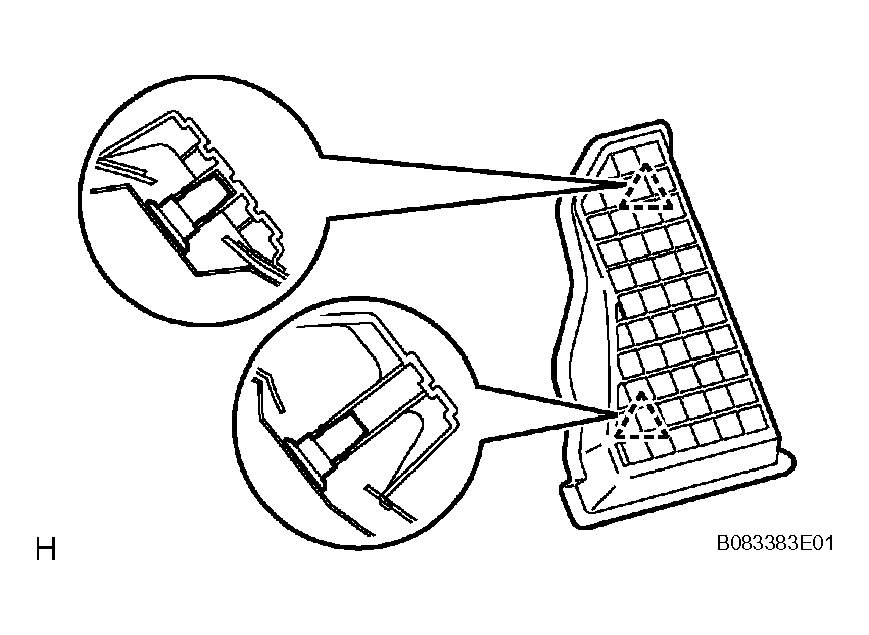

      Fig 1: Removing Front Floor Footrest
      G04224773Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
