Vane Pump: Installation

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL VANE PUMP ASSEMBLY
1. Temporarily install the 2 bolts to the vane pump.
2. Install the vane pump with the 2 bolts.
3. Using SST and a 14 mm deep socket, fully tighten the bolts.
  SST 09249-63010

  Torque: 34 N*m (347 kgf*cm, 25 ft.*lbf)

  NOTE: Use a torque wrench with a fulcrum length of 300 mm (11.81 in.).

  This torque valve is effective when SST is parallel to the torque wrench.
4. Connect the connector to the oil pressure switch.

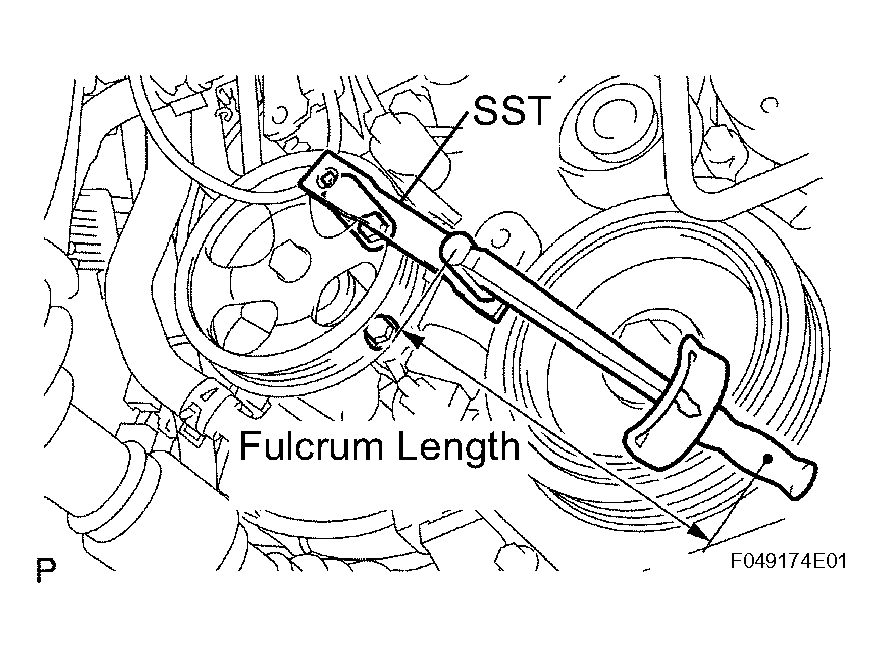

  Fig 1: Installing Vane Pump Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT PRESSURE FEED TUBE ASSEMBLY
1. Install the pressure feed tube and a new gasket to the vane pump with the union bolt.
  HINT:

  Make sure the stopper of the pressure feed tube touches the vane pump body.
2. Using a 27 mm wrench to hold the pressure port union, torque the union bolt.
  Torque: 52 N*m (525 kgf*cm, 38 ft.*lbf)
3. Install the pressure feed tube with the bolt to the pump bracket rear.
  Torque: 7.8 N*m (80 kgf*cm, 69 in.*lbf)

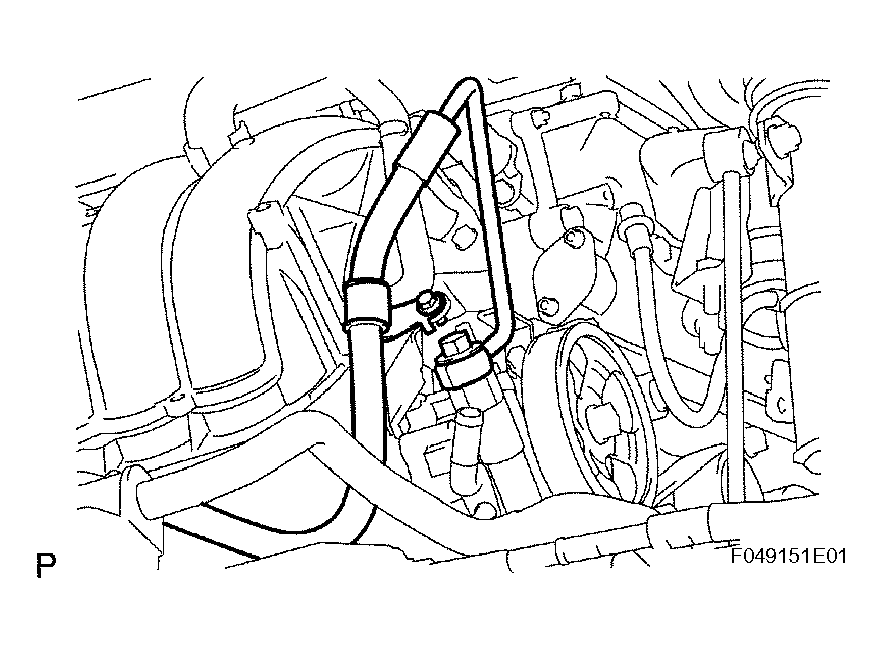

Fig 2: Connecting Pressure Feed Tube Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT NO. 1 OIL RESERVOIR TO PUMP HOSE
1. Connect the No. 1 oil reservoir to pump hose with the clip.
  NOTE: Take care not to spill fluid on the V belt.
INSTALL FAN AND GENERATOR V BELT (See INSTALLATION )
INSTALL FRONT FENDER APRON SEAL RH
INSTALL FRONT WHEEL RH (See CHARGING (2AZ-FE) )
BLEED POWER STEERING FLUID
CHECK FOR FLUID LEAKS

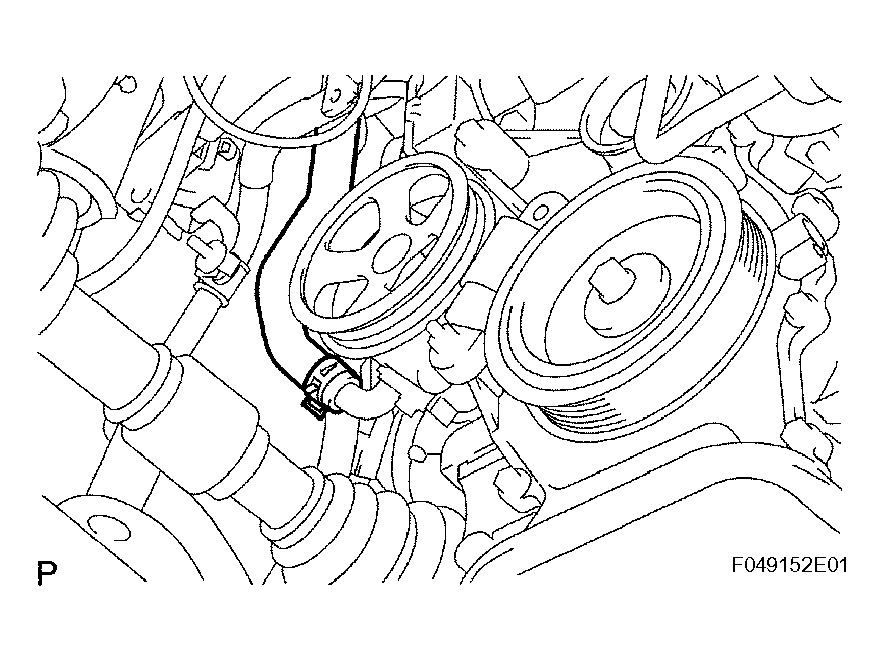

Fig 3: Connecting No. 1 Oil Reservoir To Pump Hose
