Headlight Assembly: Removal

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Use the same procedures for the RH side and LH side.
The procedures listed below are for the LH side.

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
REMOVE FRONT FENDER LINER LH (See REMOVAL )
REMOVE FRONT FENDER LINER RH (See REMOVAL )
REMOVE FRONT BUMPER COVER (See REMOVAL )
REMOVE HEADLIGHT ASSEMBLY LH
1. Remove the 2 screws and bolt and disengage the claw.
2. Disconnect the connectors and remove the headlight.

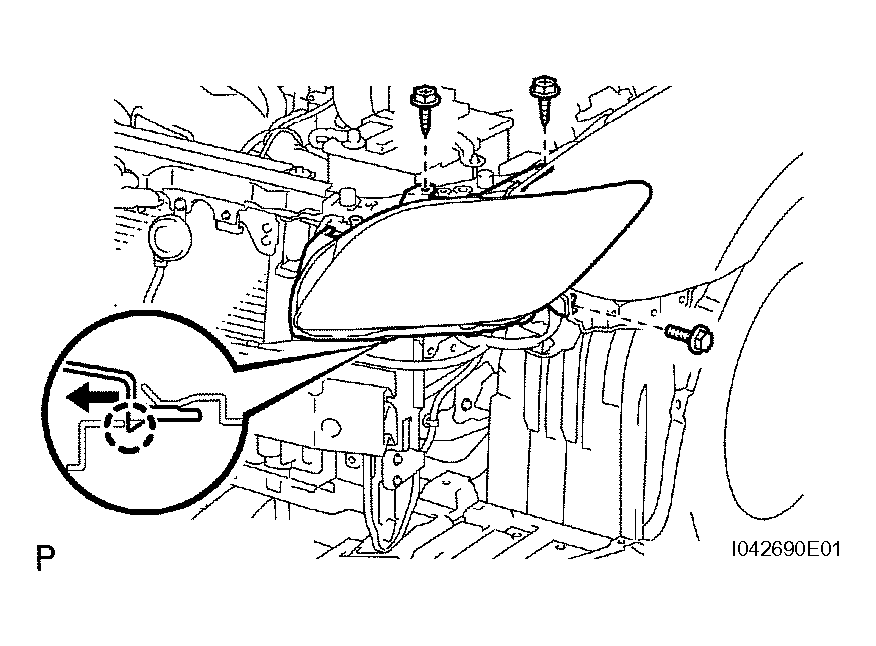

Fig 1: Removing Screws And Bolt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
