Side Airbag Sensor: Removal

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Be sure to read the precautionary notices concerning the SRS airbag system before servicing it (see PRECAUTION  ).
  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
  2. REMOVE FRONT DOOR LOWER FRAME BRACKET GARNISH LH (See  DISASSEMBLY  )
  3. REMOVE ASSIST GRIP COVER LH (See  DISASSEMBLY  )
  4. REMOVE FRONT ARMREST BASE PANEL UPPER LH (See  DISASSEMBLY  )
  5. REMOVE FRONT DOOR TRIM BOARD SUBASSEMBLY LH (See  DISASSEMBLY  )
  6. REMOVE SIDE AIRBAG SENSOR ASSEMBLY LH
    1. Disconnect the connector.
    2. Remove the 2 nuts and sensor.

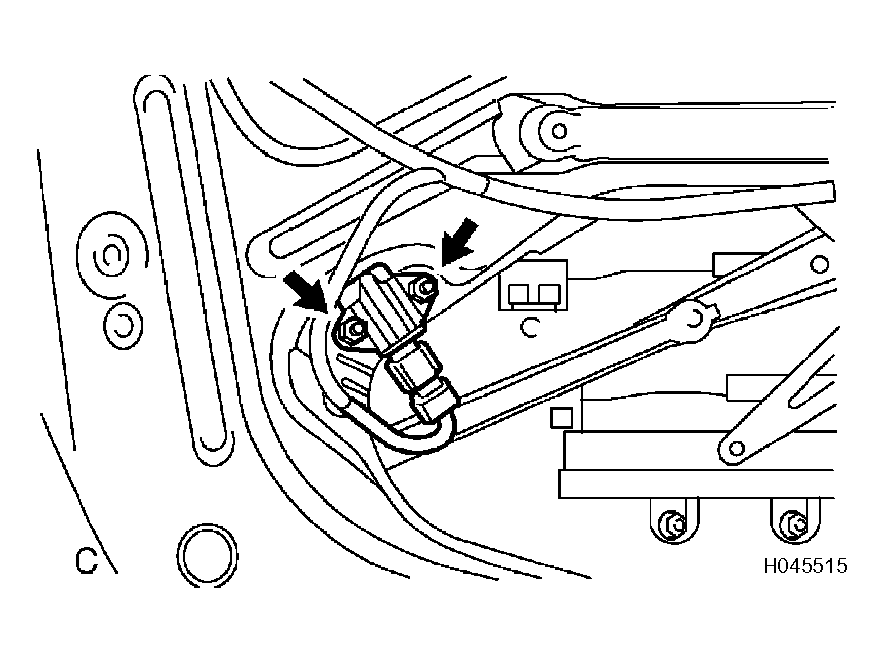

    Fig 1: Removing Nuts And Side Airbag Sensor Assembly LH
    G04224017Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
