Front Passenger Airbag Assembly: Installation

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Be sure to read the precautionary notices concerning the SRS airbag system before servicing it (see PRECAUTION  ).
  1. INSTALL FRONT PASSENGER AIRBAG ASSEMBLY
    1. Install the front passenger airbag assembly with the 2 screws.
    2. Connect the connectors to the airbag.
    3. Install the clip.
    4. Install the instrument panel sub-assembly upper (see INSTALLATION ).

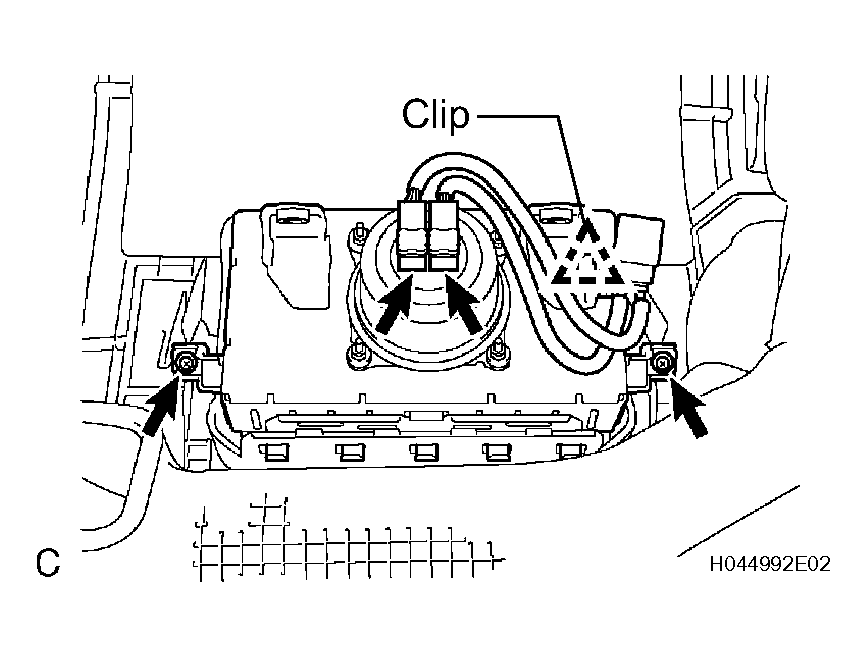

      Fig 1: Installing Front Passenger Airbag Assembly With Screws
      G04223960Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Connect the connector to the airbag.
    NOTE: When handling the airbag connector, do not damage the airbag wire harness.
  2. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY (See  INSTALLATION  )
  3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

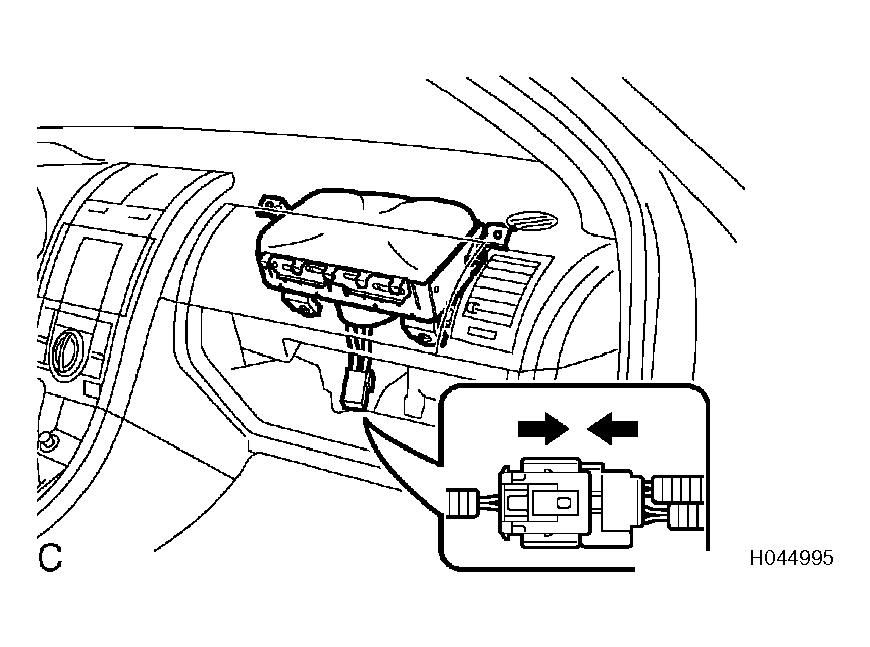

    Fig 2: Connecting Connectors To Airbag
    G04223961Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. PERFORM INITIALIZATION
    1. Perform initialization (see INITIALIZATION ).
    NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
  5. CHECK SRS WARNING LIGHT
    1. Check the SRS warning light (see DIAGNOSIS SYSTEM  ).
