System Diagram

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.

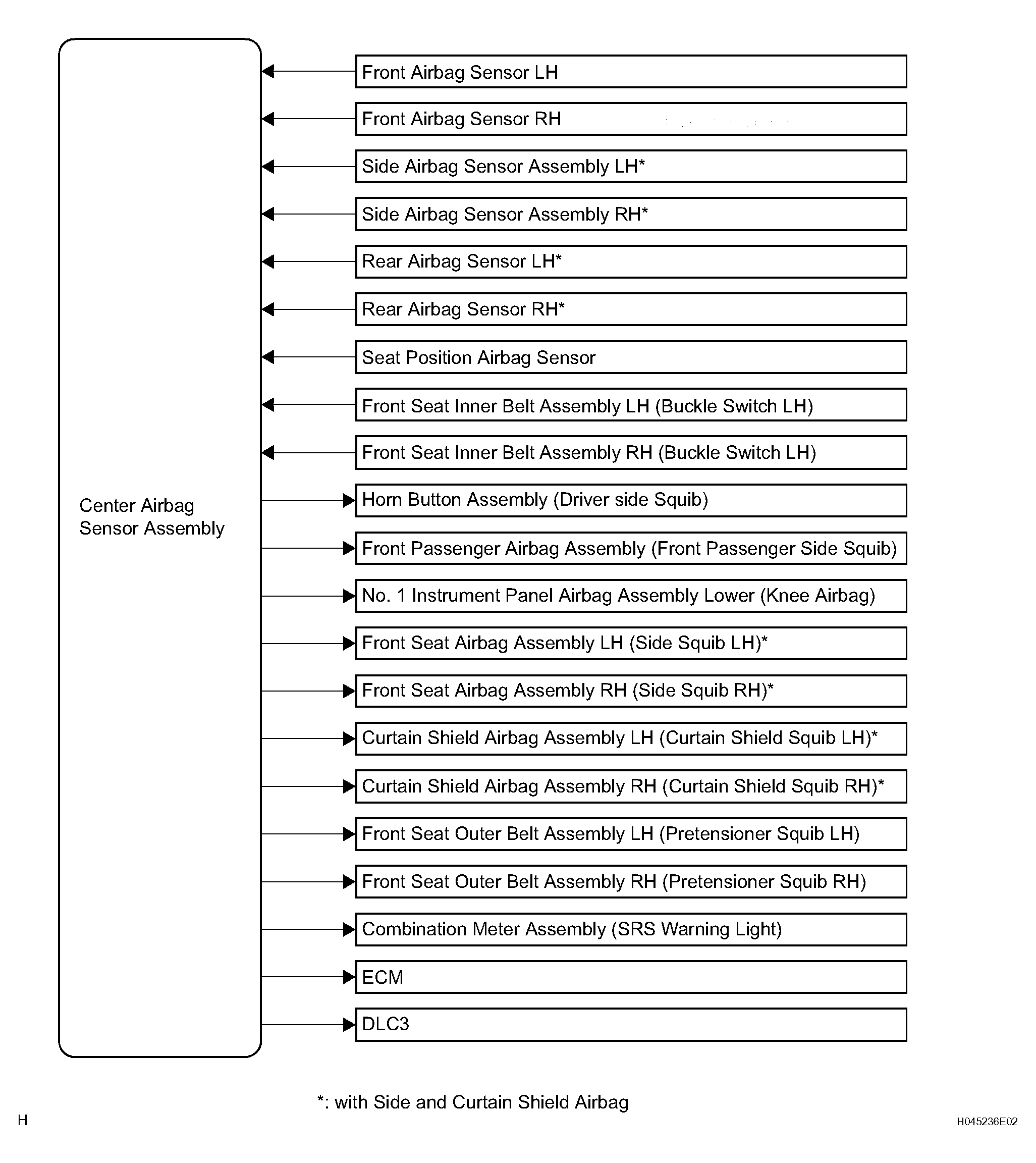

Fig 1: Supplemental Restraint System Diagram
G04223654Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
