DTC Check / Clear

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.

CHECK SUPPLEMENTAL RESTRAINT SYSTEM DTC (USING INTELLIGENT TESTER)
1. Check for DTCs.
  1. Connect the intelligent tester to the DLC3.
  2. Turn the ignition switch to the ON position.
  3. Check for DTCs.
    HINT:

    Refer to the intelligent tester operator's manual for further details.

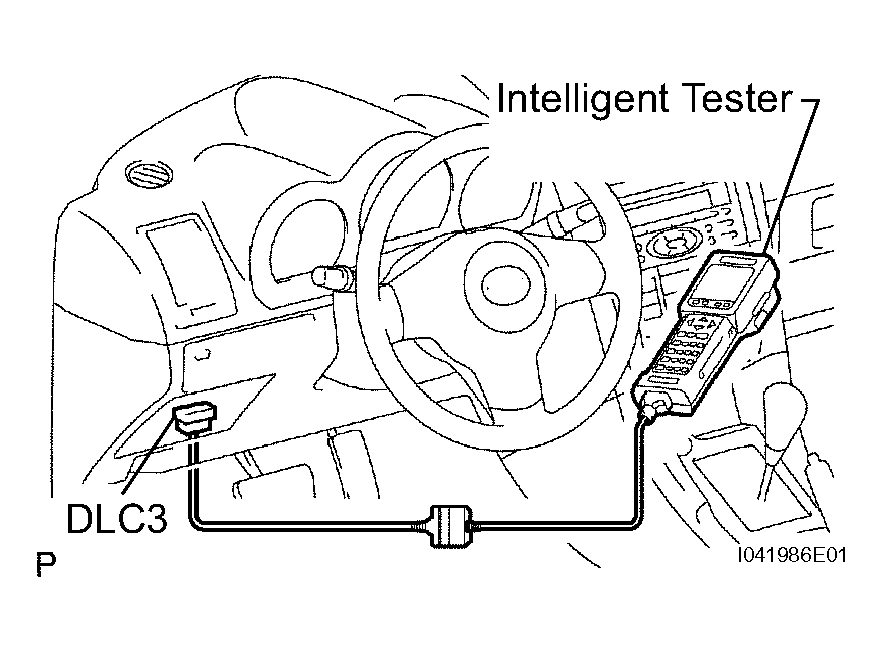

  Fig 1: Connecting Intelligent Tester To Dlc3
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Clear the DTCs.
  1. Connect the intelligent tester to the DLC3.
  2. Turn the ignition switch to the ON position.
  3. Clear the DTCs.
    HINT:

    Refer to the intelligent tester operator's manual for further details.
CHECK SUPPLEMENTAL RESTAURANT SYSTEM DTC (USING SST (CHECK WIRE))
1. Check the DTCs (Present trouble code).
  1. Turn the ignition switch to the ON position, and wait for approximately 60 seconds.
  2. Using SST, connect terminals 13 (TC) and 4 (CG) of the DLC3.
    SST 09843-18040

    NOTE: Connect the terminals to the correct positions to avoid a malfunction.
2. Check the DTCs (Past trouble code).
  1. Using SST, connect terminals 13 (TC) and 4 (CG) of the DLC3.
    SST 09843-18040

    NOTE: Connect the terminals to the correct positions to avoid a malfunction.
  2. Turn the ignition switch to the ON position, and wait for approximately 60 seconds.
  Fig 2: Identifying Connector Terminal
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Read the DTCs.
  1. Read the blinking patterns of the DTCs.
    Examples, the blinking patterns for the normal system code and DTCs 11 and 31 are shown in the illustration.
    - Normal system code indication (without past trouble code)
      The light blinks twice per second.
    - Normal system code indication (with past trouble code)
      When the past trouble code is stored in the center airbag sensor assembly, the light blinks only once per second.
    - Trouble code indication
    The first blinking indicates the first DTC. The second blinking occurs after a 1.5-second pause.

    If there are more than 1 code, there will be a 2.5-second pause between each code. After all codes are shown, there will be a 4.0-second pause, and they all will be repeated.

    HINT:
    - If 2 or more malfunctions are found, the indication begins with the smaller numbered code.
    - If DTCs are indicated without connecting the terminals, proceed to the "TC TERMINAL CIRCUIT " .

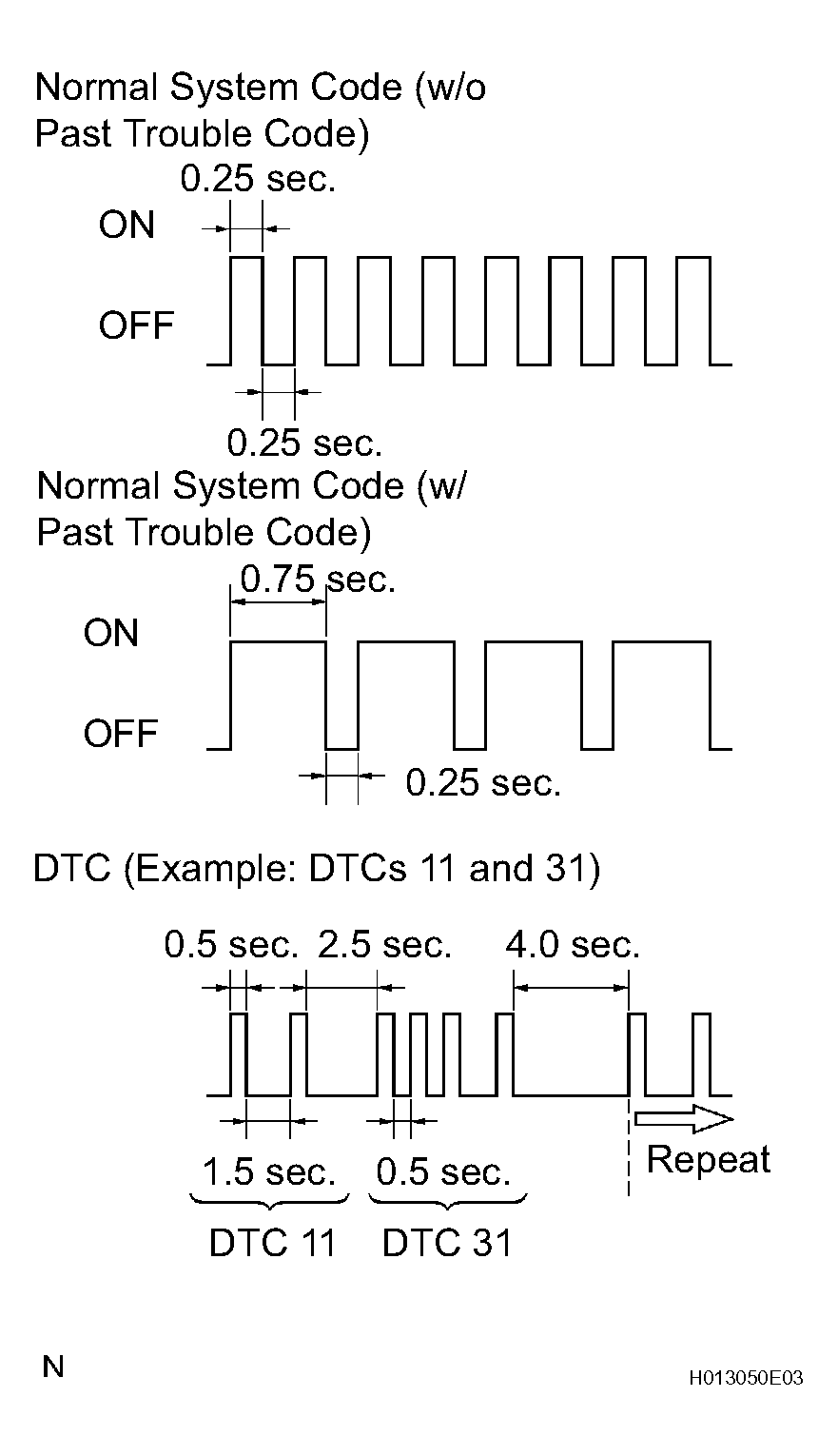

Fig 3: Blinking Patterns Of DTC
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CLEAR DTC (USING SST (CHECK WIRE))
1. Clear the DTCs.
  1. When the ignition switch is turned OFF, the DTCs are cleared.
    HINT:

    Depending on the DTC, the code may be cleared by turning off the ignition switch. In this case, proceed to the next procedure.
  2. Using SST, connect terminals 13 (TC) and 4 (CG) of the DLC3, and then turn the ignition switch to the ON position.
    SST 09843-18040
  3. Disconnect terminal 13 (TC) of the DLC3 within 3 to 10 seconds after the DTCs are output, and check if the SRS warning light comes on after 3 seconds.
  4. Within 2 to 4 seconds after the SRS warning light comes on, connect terminals 13 (TC) and 4 (CG) of the DLC3.
  5. The SRS warning light should go off within 2 to 4 seconds after connecting terminals 13 (TC) and 4 (CG) of the DLC3. Then, disconnect terminal 13 (TC) within 2 to 4 seconds after the SRS warning light goes off.
  6. The SRS warning light comes on again within 2 to 4 seconds after disconnecting terminal 13 (TC). Then, reconnect terminals 13 (TC) and 4 (CG) within 2 to 4 seconds after the SRS warning light comes on, connect terminals 13 (TC) and 4 (CG) of the DLC3.
  7. Check if the SRS warning light goes off 2 to 4 seconds after connecting terminals 13 (TC) and 4 (CG) of the DLC3. Also check if the normal system code is output within 1 second after the SRS warning light goes off.
    If DTCs are not cleared, repeat this procedure until the codes are cleared.

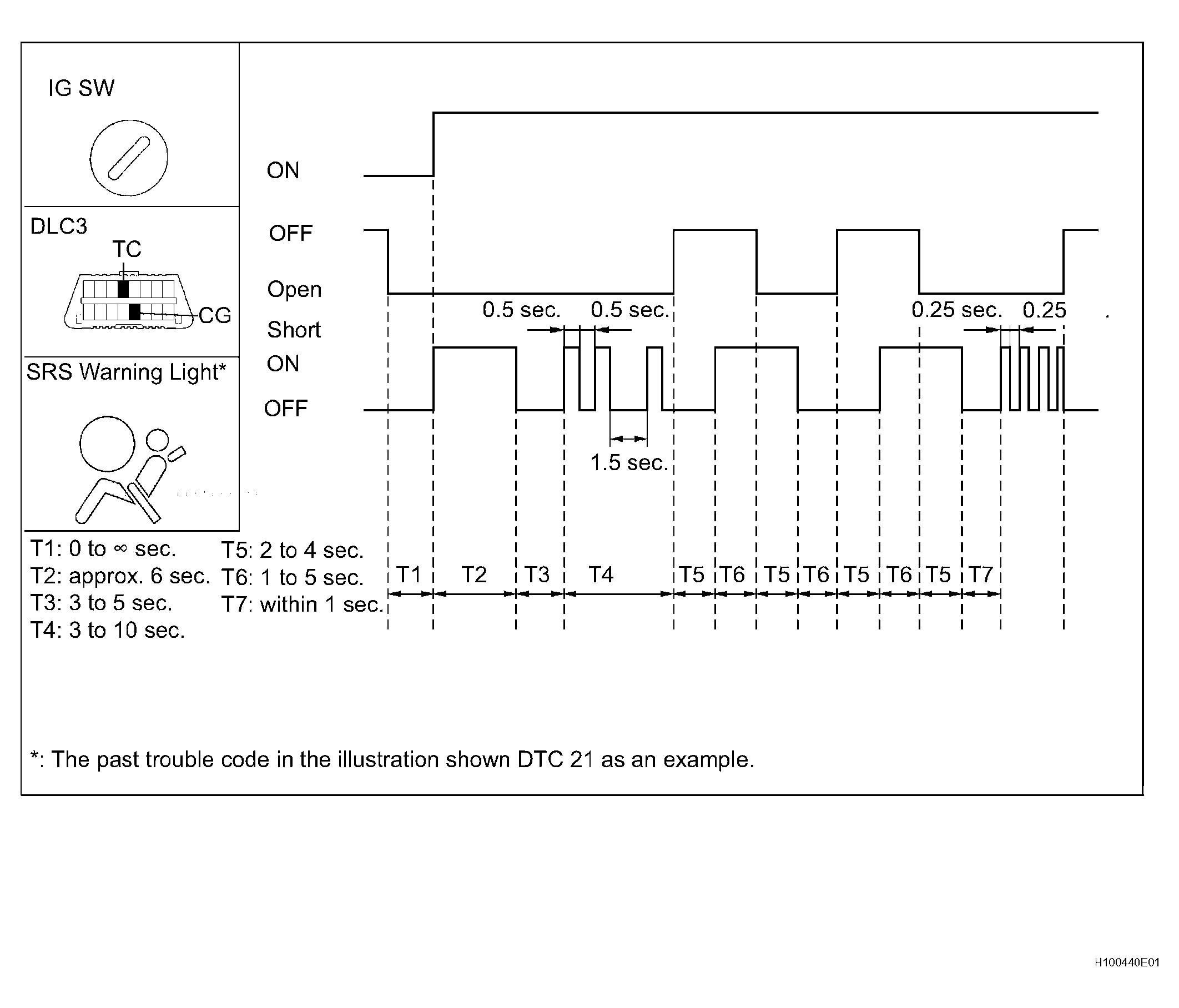

    Fig 4: SRS Warning Light Blinking Pattern
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
