Rear Seat Assembly: Reassembly

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Wear protective gloves. Sharp areas on the seatback frame may injure your hands.
  1. INSTALL REAR SEAT RECLINING CONTROL CABLE LH
    1. Install the 2 control cables as shown in the illustration.

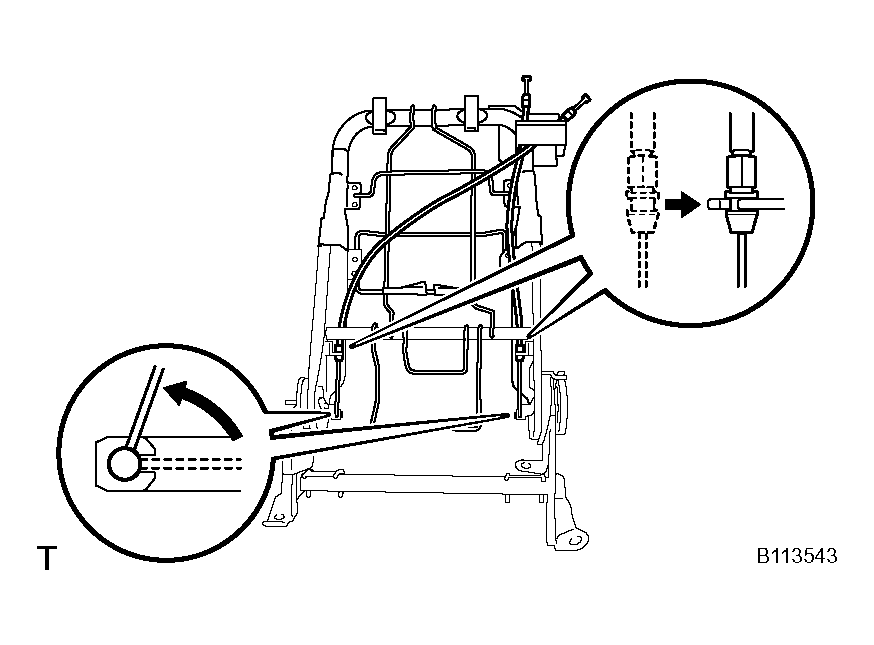

    Fig 1: Installing Control Cables
    G04224611Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL REAR SEATBACK COVER LH
    NOTE:
    • Be careful not to damage the cover.
    • When installing the hog rings, avoid wrinkling the cover.

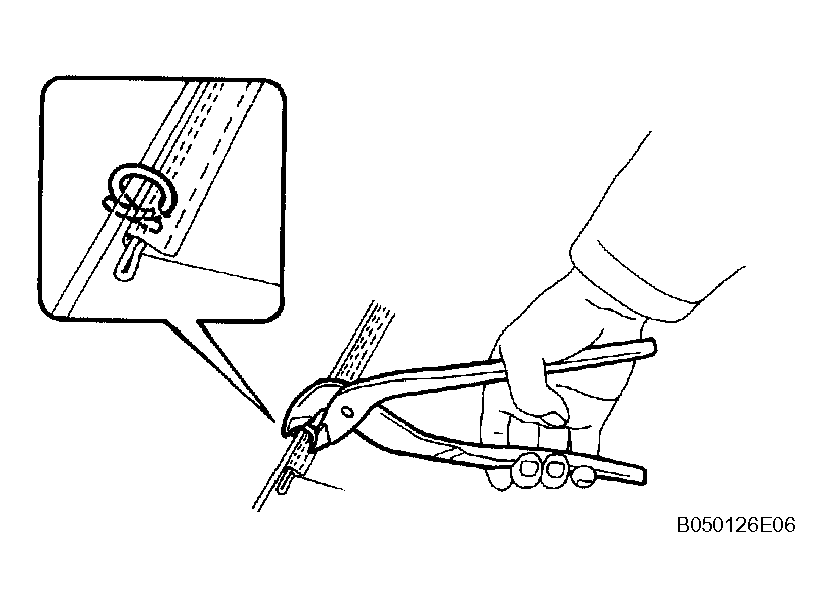

    Fig 2: Installing Hog Rings
    G04224612Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Using hog ring pliers, install the seatback cover to the seatback pad with new hog rings.
    2. Install the seatback cover (with pad) to the seatback frame.
    3. Attach the 4 claws to install the 2 headrest supports.

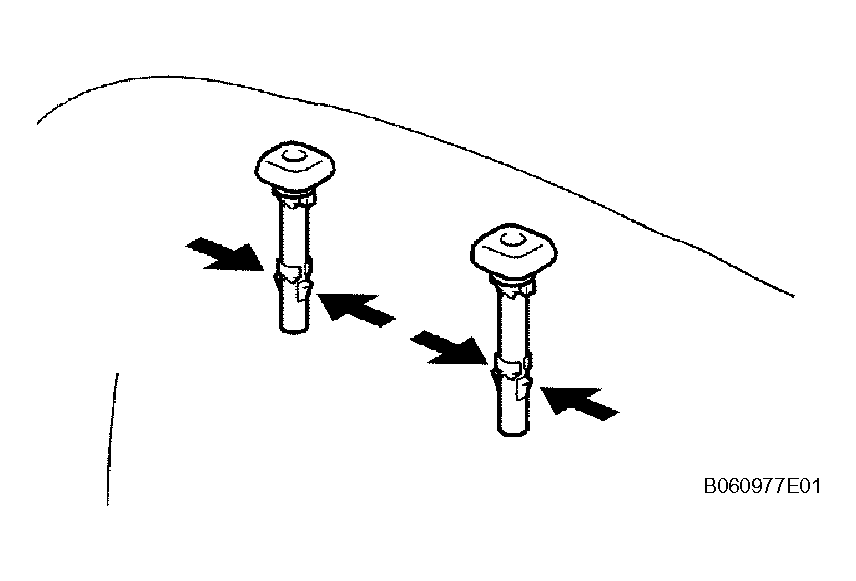

      Fig 3: Installing Headrest Supports
      G04224613Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Attach the 2 hooks and 2 claws, and install the seatback board to the seatback frame.

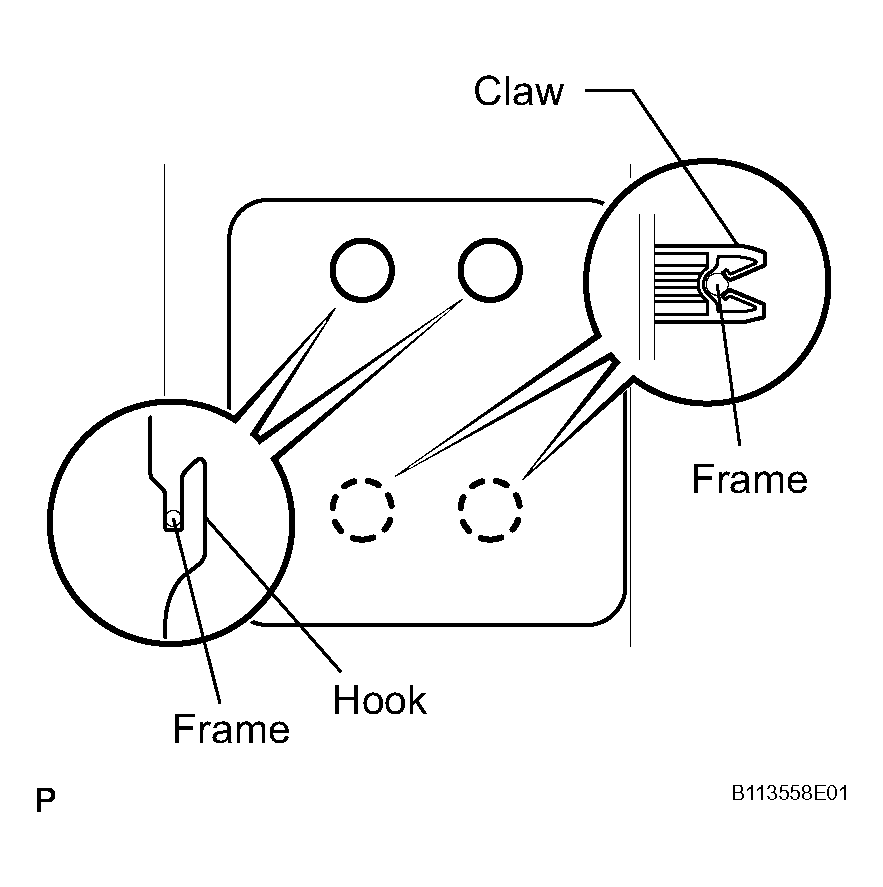

      Fig 4: Attaching Hooks
      G04224614Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Close the zipper.
    6. Using hog ring pliers, install the seatback cover (with pad) with new hog rings.

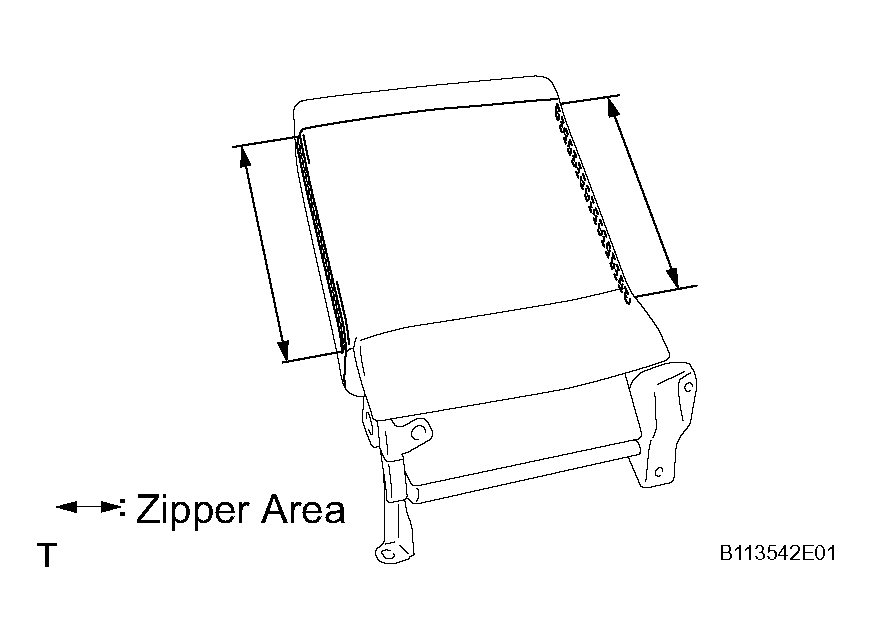

    Fig 5: Identifying Zipper Area
    G04224615Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL REAR SEAT LOCK CONTROL LEVER SUBASSEMBLY LH
    1. Install the 2 reclining control cables as shown in the illustration.

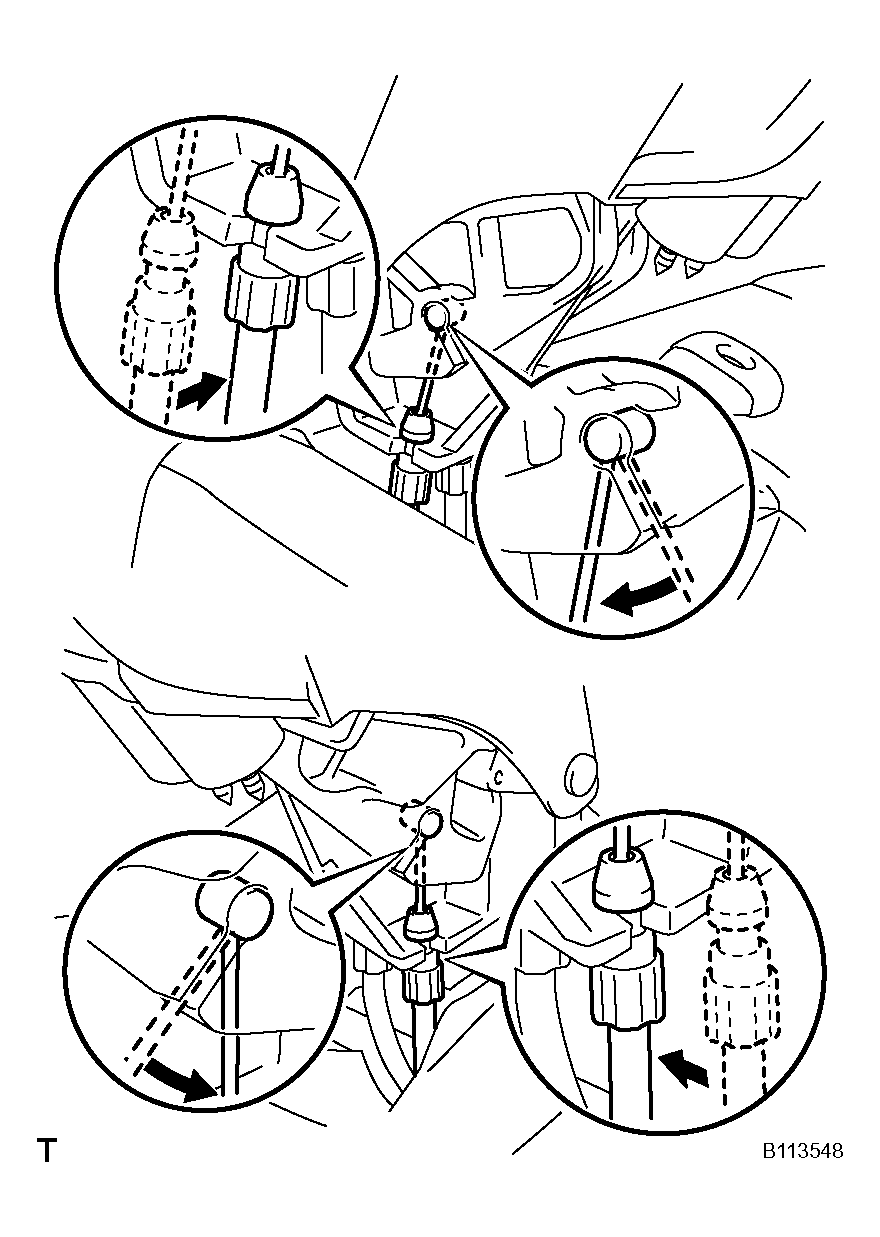

      Fig 6: Installing Reclining Control Cables
      G04224616Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the control lever to the seatback with the 2 screws.
    3. Attach the 2 claws to install the rear seatback lock striker cover.
  4. INSTALL REAR SEAT RECLINING CONTROL CABLE RH

    HINT:

    Use the same procedures described for the LH side.

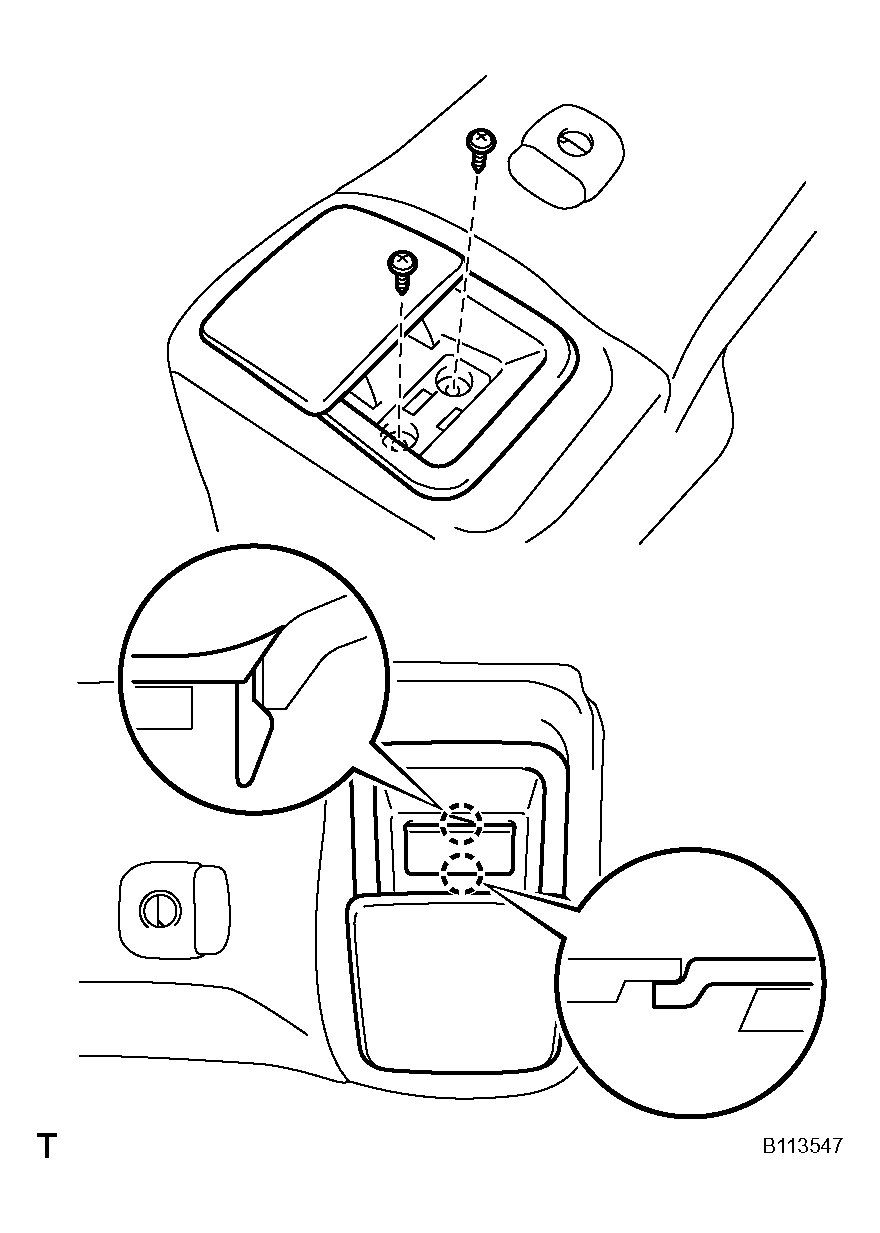

    Fig 7: Installing Rear Seat Reclining Control Cable RH
    G04224617Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL REAR SEAT SHOULDER BELT COVER RH
    1. Attach the 3 claws to install the belt cover.

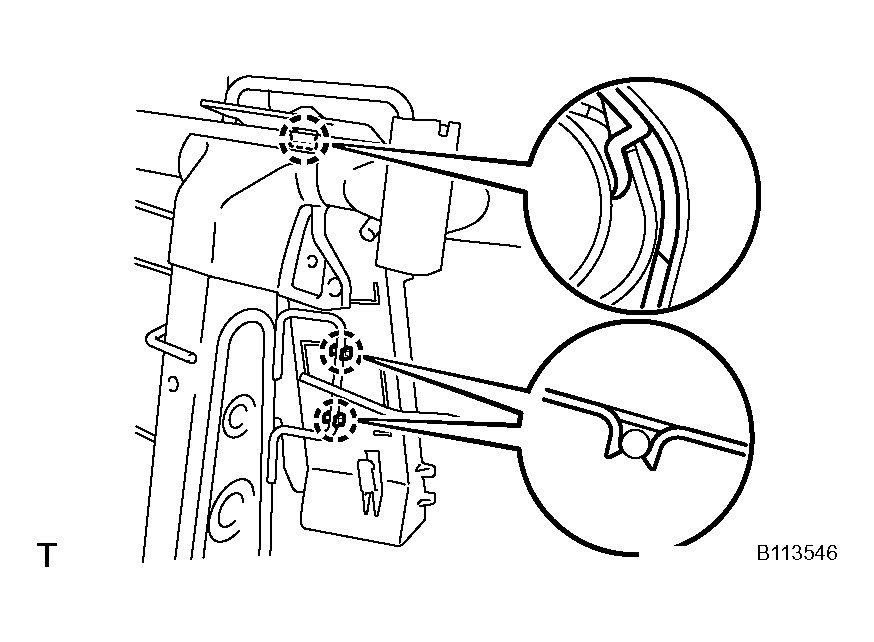

    Fig 8: Installing Belt Cover
    G04224618Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL REAR SEAT OUTER BELT ASSEMBLY CENTER
    1. Install the belt with the nut as shown in the illustration.

      Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

    2. Attach the hook.

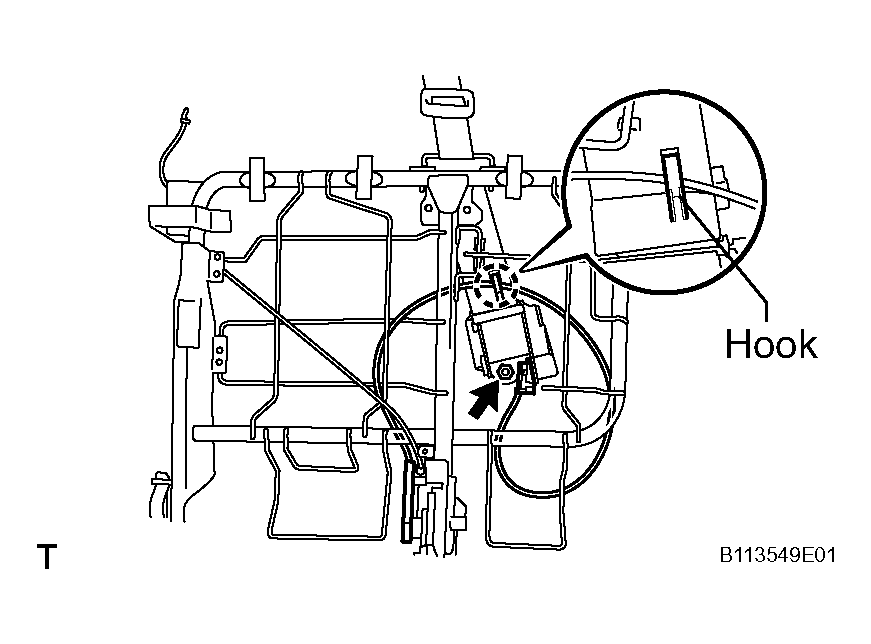

      Fig 9: Installing Belt With Nut
      G04224619Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Align the holes of the 3 parts shown in the illustration, and then install the 3 nuts.

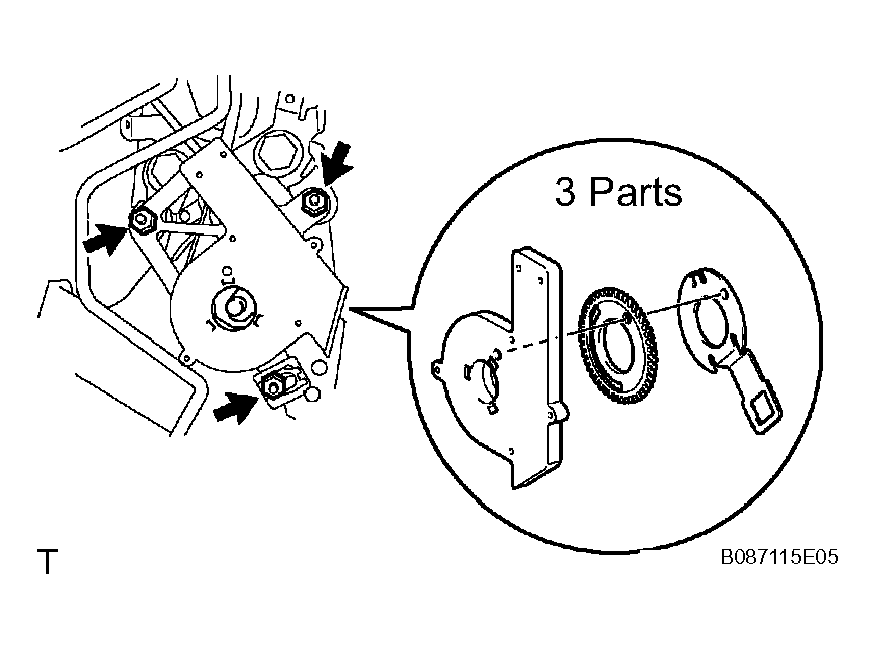

      Fig 10: Installing Nut
      G04224620Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Before tightening the nuts, raise the seatback to the upright position and make sure the seatback stops in the first lock position of the frame.

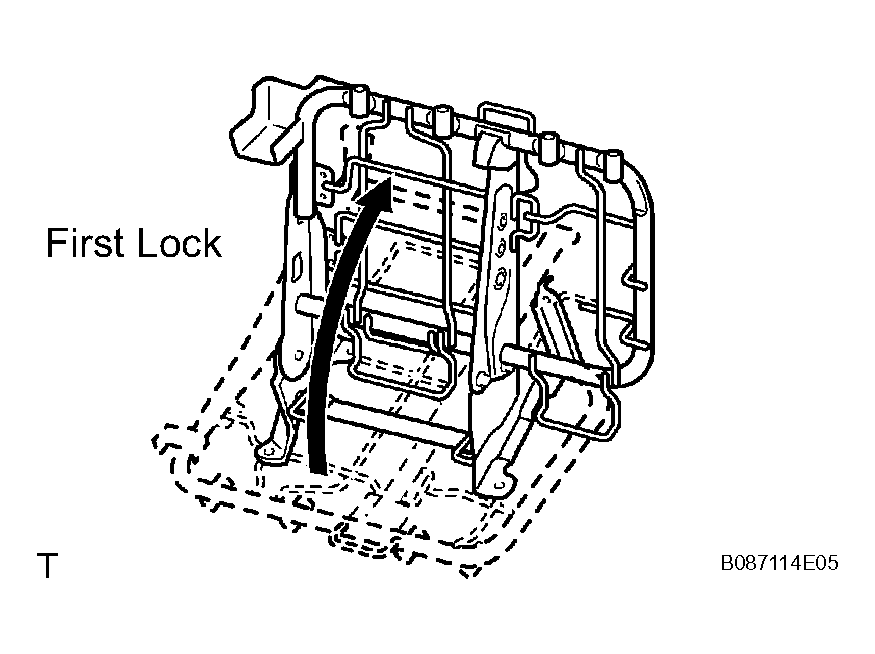

      Fig 11: Identifying First Lock Position Of Frame
      G04224621Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Attach the 2 claws to close the shoulder belt cover.
  7. INSTALL REAR SEAT SIDE HINGE MALE COVER
    1. Attach the 2 claws to install the male cover.

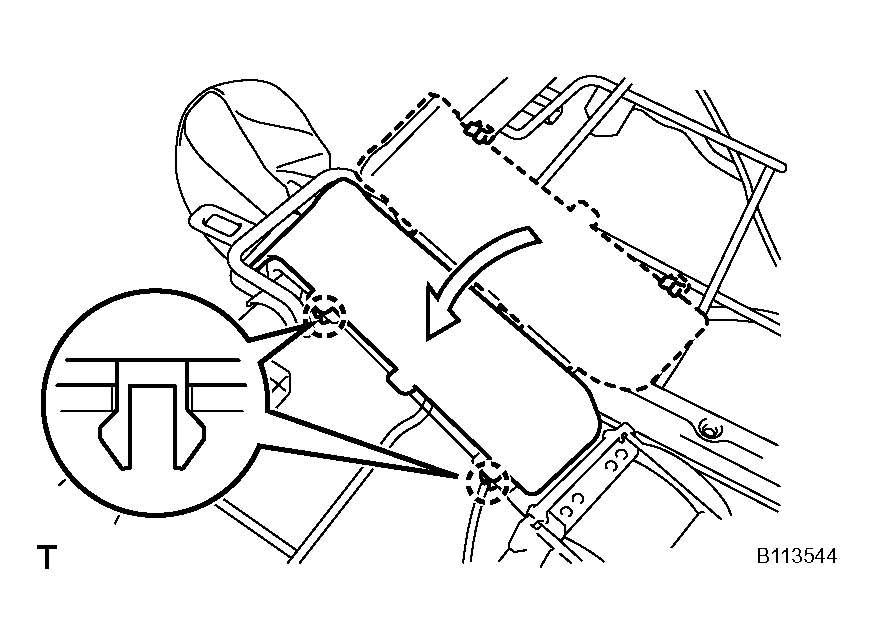

    Fig 12: Installing Rear Seat Side Hinge Male Cover
    G04224622Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL REAR SEAT SIDE HINGE MALE COVER LH
    1. Attach the claw to install the male cover.

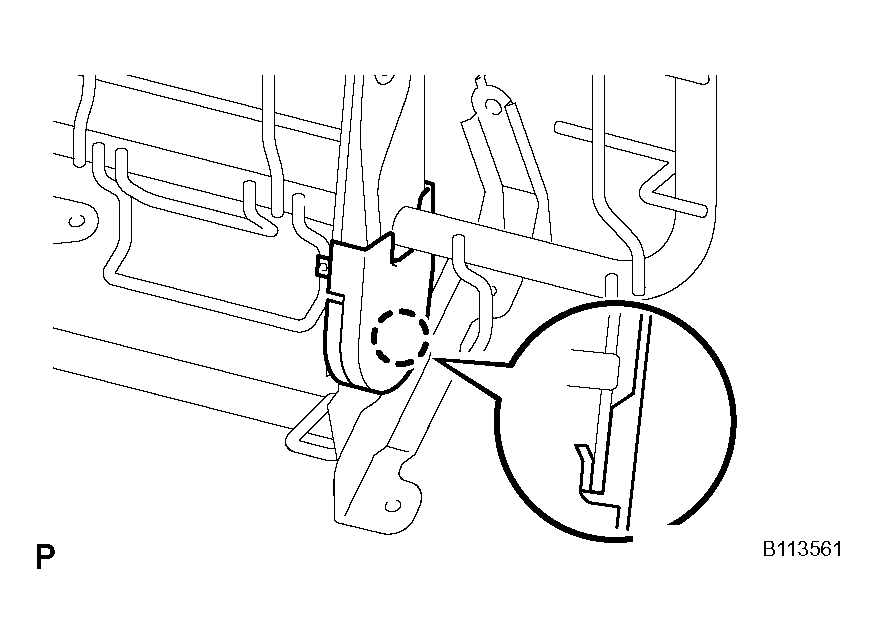

    Fig 13: Installing Rear Seat Side Hinge Male Cover LH
    G04224623Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSTALL REAR SEAT SIDE HINGE MALE COVER RH
    1. Attach the 2 claws and install the male cover with the screws.

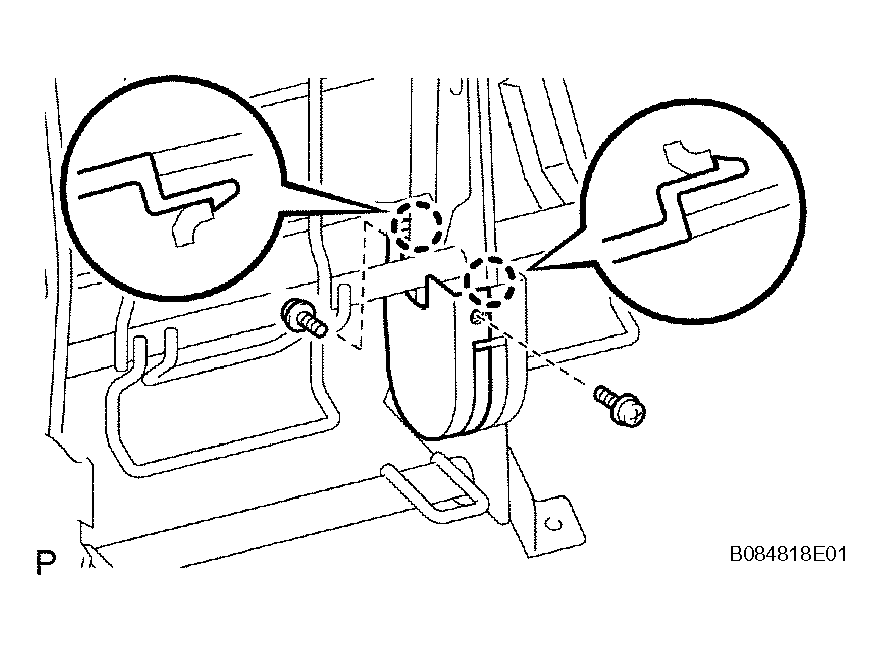

    Fig 14: Installing Rear Seat Side Hinge Male Cover RH
    G04224624Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL REAR SEATBACK COVER RH
    NOTE:
    • Be careful not to damage the cover.
    • When installing the hog rings, avoid wrinkling the cover.
    Fig 15: Installing Hog Rings
    G04224625Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Using hog ring pliers, install the seatback cover to the seatback pad with new hog rings.
    2. Install the seatback cover (with pad) to the seatback frame.
    3. Attach the 4 claws to install the 2 headrest supports.
      Fig 16: Installing Headrest Supports
      G04224626Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Install the seatback board to the seatback frame.

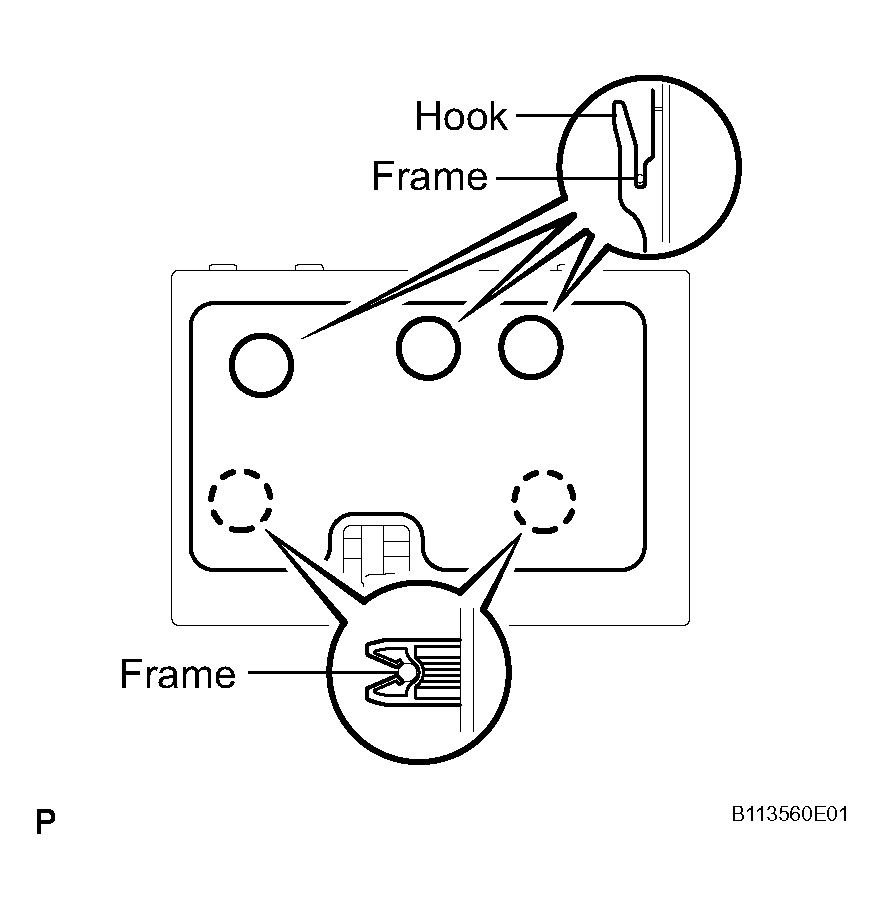

      Fig 17: Installing Seatback Frame
      G04224627Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Close the zipper.
    6. Using hog ring pliers, install the seatback cover (with pad) with new hog rings.

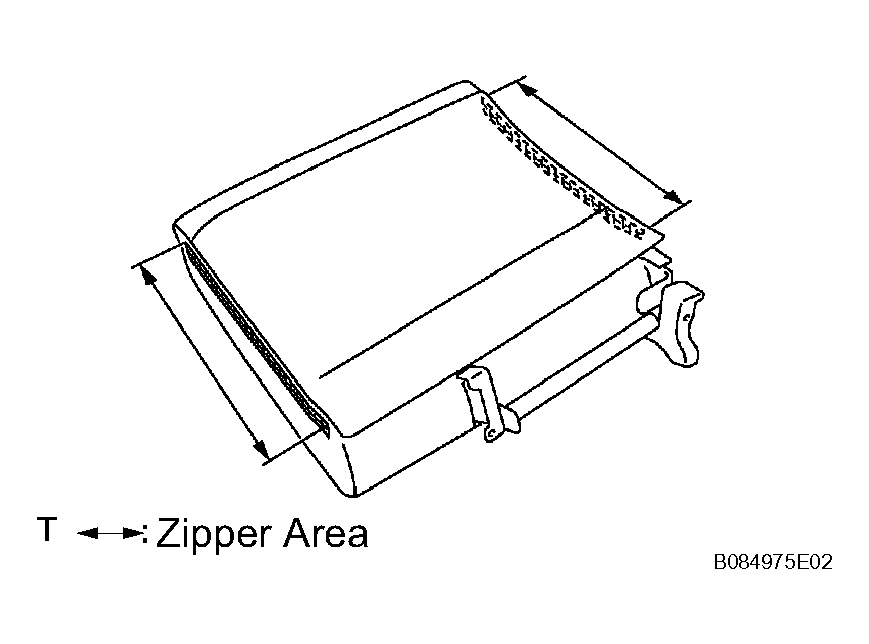

    Fig 18: Identifying Zipper Area
    G04224628Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. INSTALL REAR SEAT SHOULDER BELT GUIDE CENTER
    1. Attach the 4 claws to install the belt guide.
  12. INSTALL REAR SEAT LOCK CONTROL LEVER SUBASSEMBLY RH

    HINT:

    Use the same procedures described for the LH side

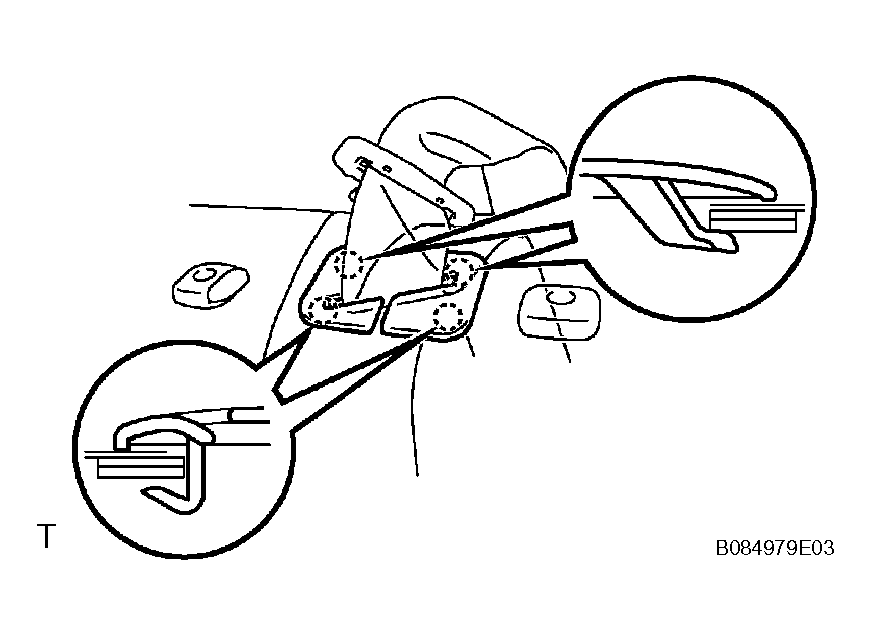

    Fig 19: Installing Belt Guide
    G04224629Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. INSTALL REAR NO. 2 SEAT RECLINING COVER LH
    1. Install the reclining cover with the clip.
  14. INSTALL REAR NO. 1 SEAT RECLINING COVER LH

    HINT:

    Use the same procedures described for the rear No. 2 seat reclining cover LH.

  15. INSTALL REAR NO. 2 SEAT RECLINING COVER RH

    HINT:

    Use the same procedures described for the LH side.

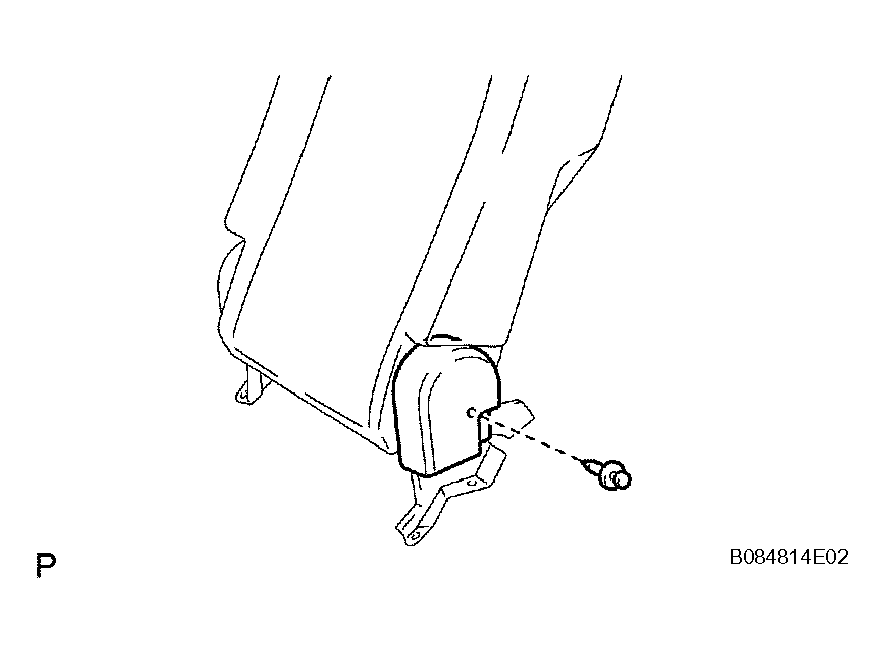

    Fig 20: Installing Reclining Cover With Clip
    G04224630Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. INSTALL REAR SEAT CUSHION COVER
    1. Using hog ring pliers, install the seat cushion cover to the seat cushion pad with new hog rings.
    NOTE:
    • Be careful not to damage the cover.
    • When installing the hog rings, avoid wrinkling the cover.
  17. INSTALL REAR SEAT HEADREST ASSEMBLY LH
  18. INSTALL REAR SEAT HEADREST ASSEMBLY RH
  19. INSTALL REAR SEAT HEADREST ASSEMBLY CENTER
    Fig 21: Installing Hog Rings
    G04224631Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
